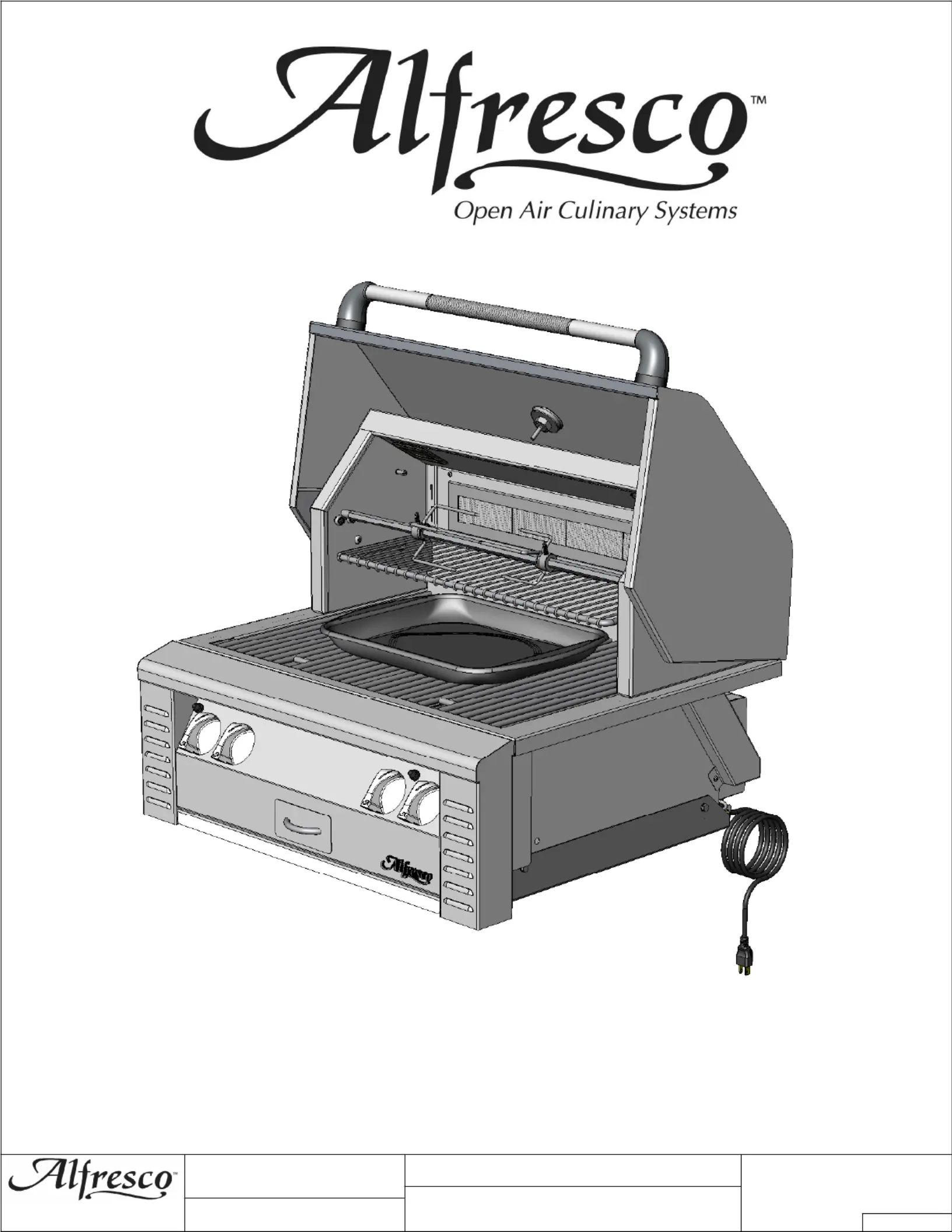

ALX2-30
BUILT-IN 30" BBQ GRILL WITH DUAL BURNERS
INTEGRATED ROTISSERIE MOTOR AND LIGHTS
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0017 MANUAL
SHEET 1 OF 1
ALX2-30 BBQ
ALX2-30
LAST SAVED BY: »» adrian «« Wednesday, July 30, 2008 9:38:37 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
10/16/2006 3:40:31 PM
27
25
13
17
17
4
4
12
12
14
14
24
18
8
3
22
19
23
2
6
1
1
21
20
9
28
9
9
26
15
5
7
7
11
10
10
16

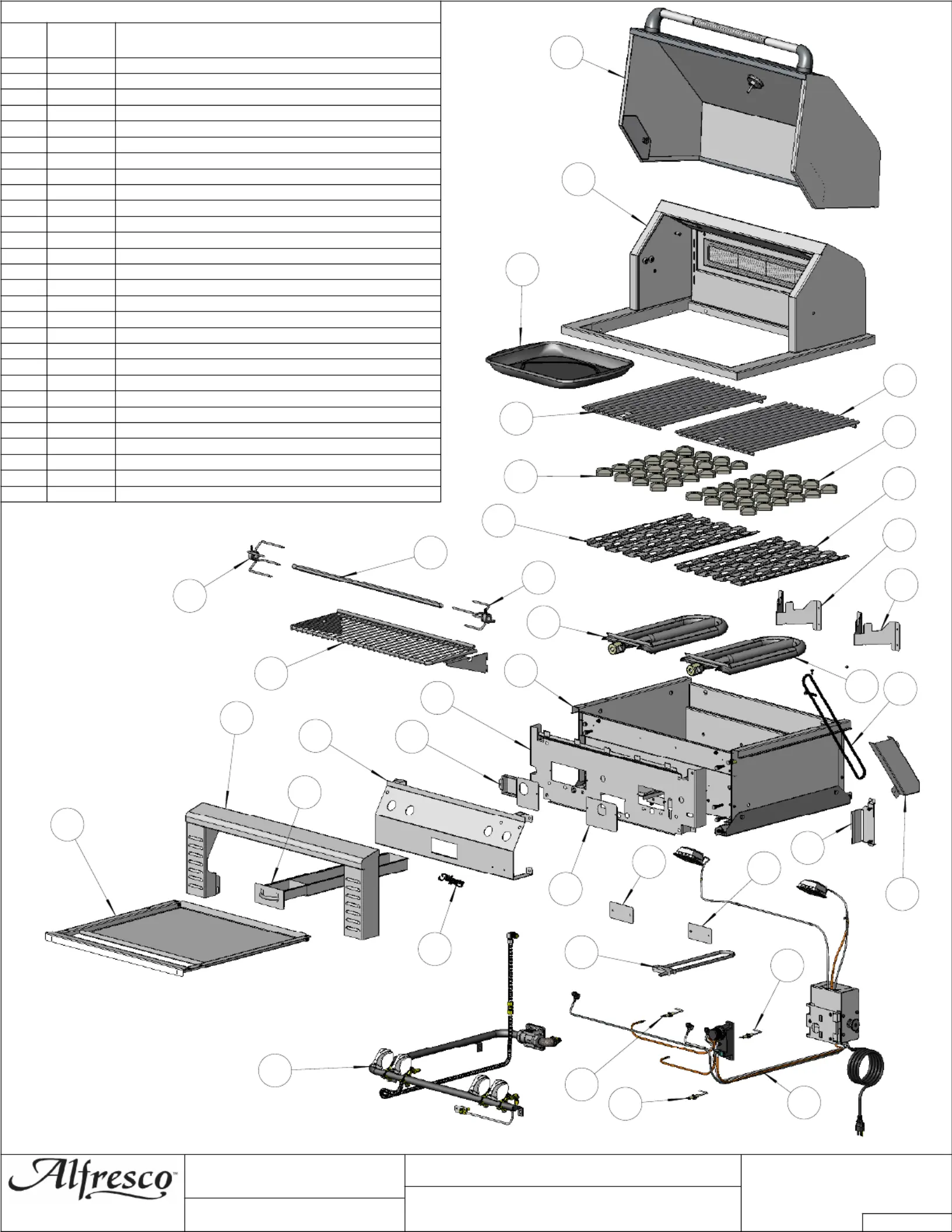

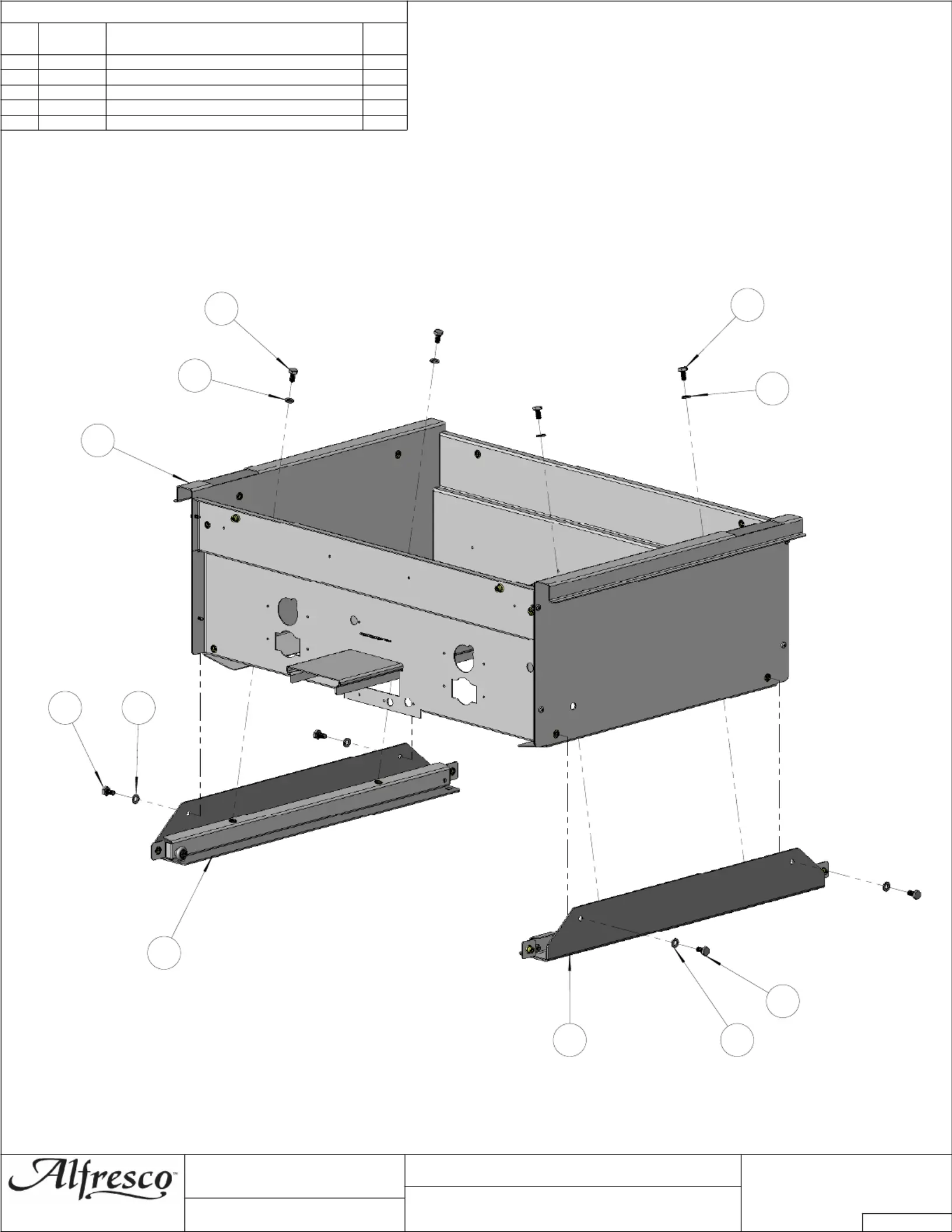

BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
1
100-1065
FIREBOX COVER
2
100-1074
DUAL VLV FWALL COVE 4 U BURNER
3
100-1080
FRONT PANEL - 30" BBQ
4
100-1083
U-BURNER BACK WALL BRACKET
5
100-1093
ROTISSERIE CHAIN COVER
6
100-1109
U BURNER FIREWALL COVER
7
100-1132
BRIQUETTE TRAY
8
100-1211
ALX2-30 FIREWALL (NEW IGNITER MOUNT)
9
210-0189
ELECTRODE - "L" SHAPED - MAIN BURNER
10
265-0005
BRIQUETTES - ALFRESCO CERAMIC (SET OF 24 PCS)
11
290-0031
LOGO - ALFRESCO
12
290-0038
BURNER - GRILL - "U" SHAPE
13
290-0059
ROTISSERIE DRIP PAN
14
290-0096
FORK ASSEMBLY
15
290-0116
CHAIN - ANSI # 25 - ¼" PITCH - .13" Ø X 1/8" ROLLER
16
290-0123
SPEAR - ROTISSERIE - 30" - 2006 BBQ
17
290-0124
GRILL 30" BBQ - 12¾" WIDE - SS
18
510-0127
30" BBQ - FIRE BOX ASSEMBLY
19
510-0130
30" BBQ - GREASE TRAY ASSEMBLY
20
510-0132
30" BBQ - GAS MANIFOLD DUAL "U" BURNER
21
510-0134
SMOKER BURNER ASSEMBLY
22
510-0136
30" BBQ FRONT ASSEMBLY
23
510-0137
SMOKER TRAY ASSEMBLY
24
510-0145
WARMING RACK - 30" BBQ
25
510-0146
30" BACK HOOD WITH RIM ASSEMBLY
26
510-0188
ALX2 - IGNITER PLATE - RIGHT
27
510-0194
ALX2-30 FRONT HOOD - MAIN ASSEMBLY
28
510-0204
ALX2-30 ELECTRICAL COMPONENTS
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
500-0017 MANUAL-1
SHEET 1 OF 1
ALX2-30 BBQ
ALX2-30
LAST SAVED BY: »» adrian «« Wednesday, July 30, 2008 9:49:13 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
10/17/2006 3:50:25 PM
5
2
1
4
3
2
1
12
1
2
BILL OF MATERIAL
NO.
PART
NUMBER
DESCRIPTION
QTY.
1
200-0087
1/4" LOCK WASHER
8
2
200-0089
1/4-20 X 1/2 - HEX HEAD BOLT
8
3
510-0128
BBQ TRAY SUPPORT ASSY - RIGHT SIDE
1
4
510-0129
BBQ TRAY SUPPORT ASSY - LEFT SIDE
1
5
510-0205
ALX2-30 FIREBOX - WELDED PARTS
1
SUPERIOR EQUIPMENT SOLUTIONS
7039 EAST SLAUSON AVENUE
COMMERCE, CA. 90040
DRAWING NO.:
PROJECT TITLE:
DRAWING TITLE:
THE INFORMATION CONTAINED IN THIS DRAWING IS THE
SOLE PROPERTY OF SUPERIOR EQUIPMENT SOLUTIONS
INC. ANY REPRODUCTION IN PART OR AS A WHOLE
WITHOUT WRITTEN PERMISSION FROM SUPERIOR
EQUIPMENT SOLUTIONS, INC. IS PROHIBITED.
510-0127 MANUAL
SHEET 1 OF 1
ALX2-30 BBQ
30" BBQ - FIRE BOX ASSEMBLY
LAST SAVED BY: »» adrian «« Wednesday, July 30, 2008 10:08:05 AM
DRAWN BY:
ADRIAN CRISCI
CREATED:
10/18/2006 9:13:47 AM
