ALF-PZA-BIA KIT FOR BUILT IN CONSTRUCTION
KIT INSTALLATION:
Once you have removed all the packing material that your
Alfresco
™ Pizza Oven was shipped with,
the built-in BIA-Kit can be installed on the unit. The Built-in conversion Kit consists of 3 items:
• A high pitched top cover
• A Type B, adjustable, double-walled vent pipe
• A Type B vent cap.
The installation can be done by simply removing the top
cover of the ALF-PZA unit and replacing it with the built-in
hood.
• Remover the top by lifting straight up. (Do not remove
the top radiant stone, it’s designed to stay there)
(See ) Figure # 1
• Install the BIA-Kit Hood by laying it on top and sliding
forward until all the screw holes located in it’s sides
and back line-up correctly with the holes in the body
of the ALF-PZA.
(See ) Figure # 2
• Fasten all 9 self tapping screws to permanently fix the
BIA Hood to the body of the ALF-PZA Unit.
Once the BIA Hood is installed, it should look like
Figure # 3. The vent flue and vent cap (TYPE B
Rated) will be added later during construction of
the non-combustible built-in enclosure.

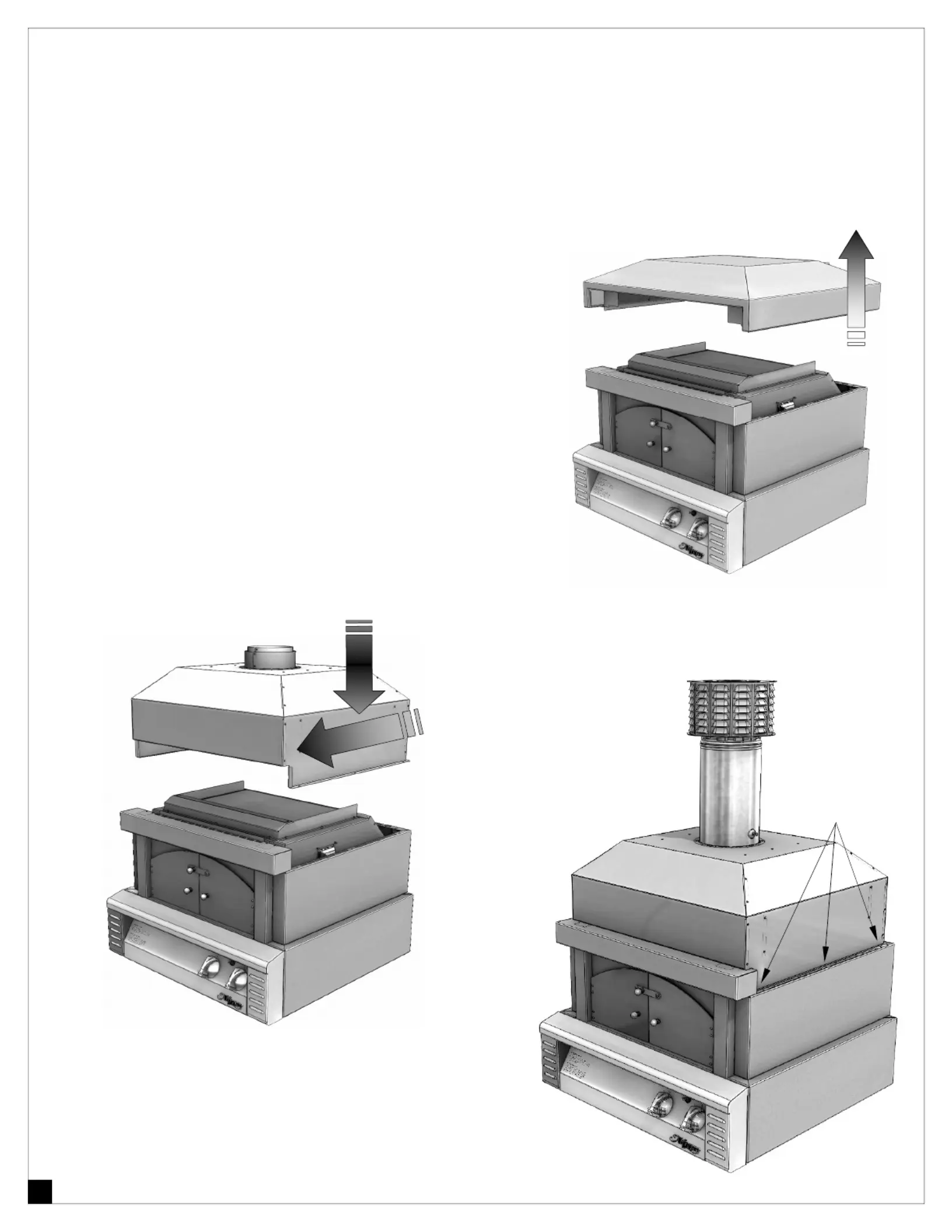

Figure # 1
TOP COVER
ALF-PZA UNIT
LIFT UP
BIA HOOD
FORWARD
DOWN
Figure # 2
Figure # 3
VENT CAP
VENT FLUE VENT FLUE
SCREWS
AROUND
PERIMETER
3
BUILT IN ENCLOSURE GENERAL BUILDING PROVISIONS:
When installing the
Alfresco
™ Pizza Oven as a built-in unit, careful consideration to the materials
used must be made. As a general rule, the materials and construction methods should be the same as
the requirements for an outdoor replace while maintaining all local building codes.

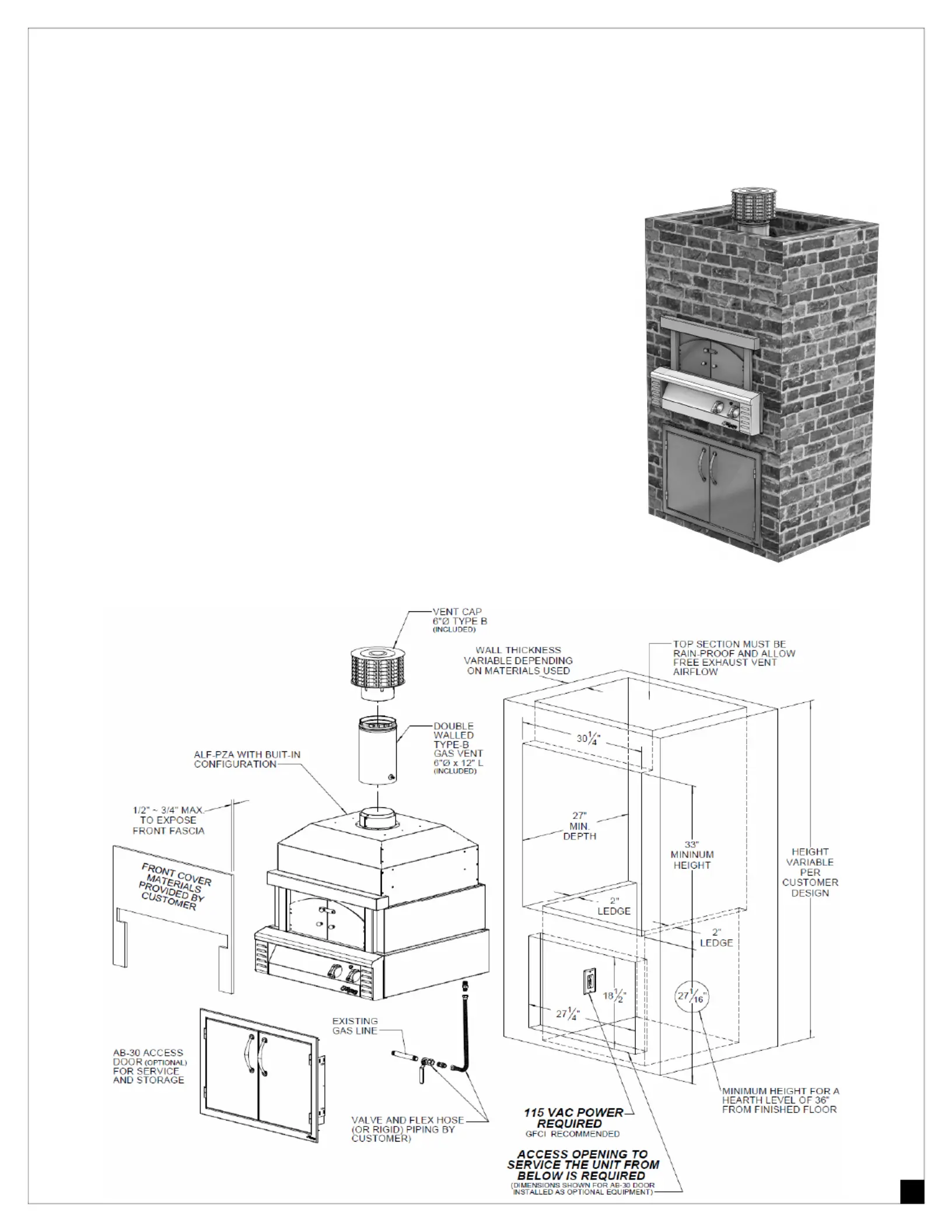

The image on the right, , shows how the Figure # 4
Alfresco
™
Pizza Oven might look like in a built-in conguration.
When building the pizza oven into a non-combustible struc-
ture, it is critical to have access to the bottom of the unit.
This will be the only means of service and maintenance as
the oven will no longer be removable.
Alfresco
™ recommends installing an AB-30 double sided door
for service, storage, gas supply and electrical power access.
The Pizza Oven must rest on two 2” ledges to give it proper sup-
port and must have free air intake from the bottom of the oven.
The built-in construction should have ample ventilation under the
oven in order to have the proper combustion.
Dimensions shown on below are shown as reference Figure # 5
to aid in the design and planning only.
Figure # 4
Figure # 5
