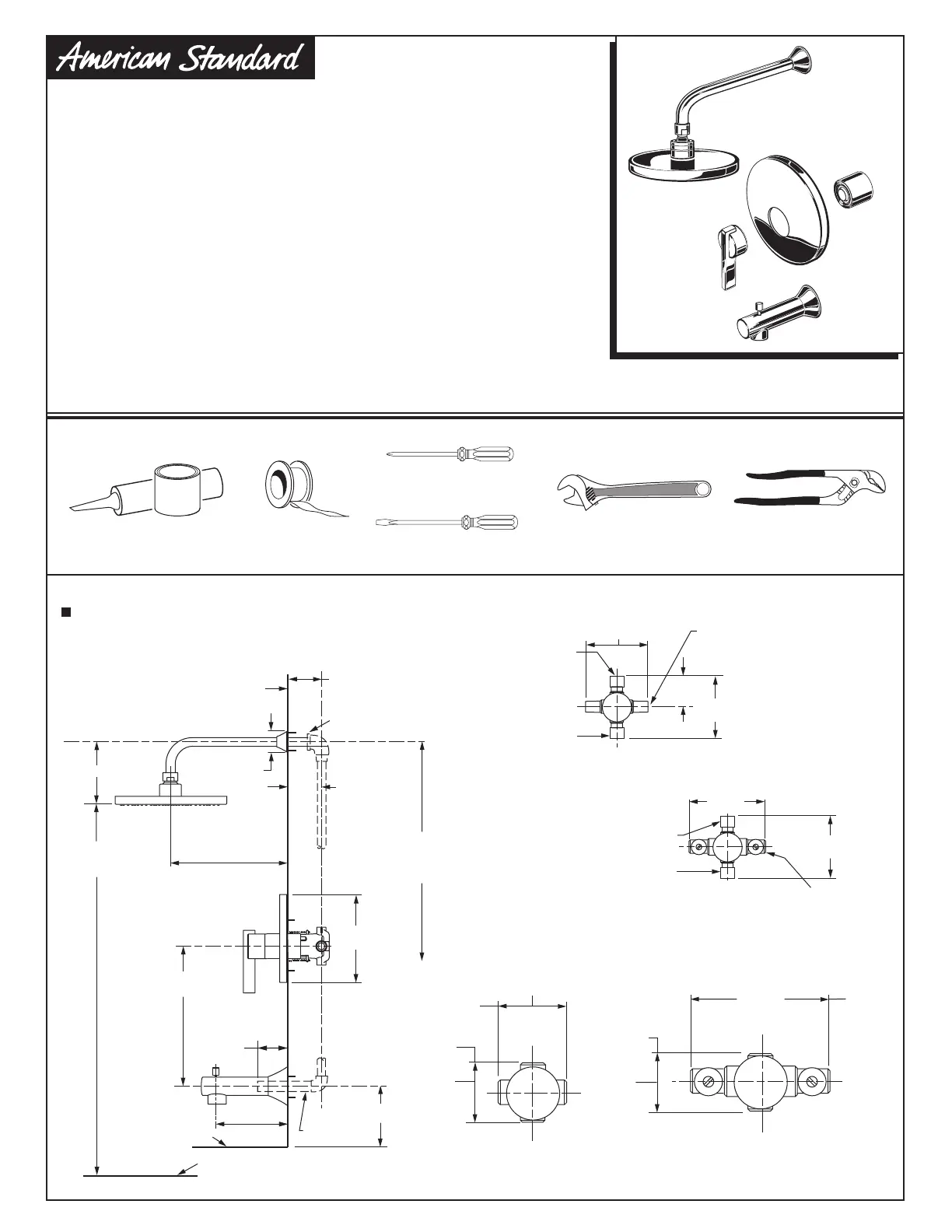

BATH AND SHOWER TRIM KIT

M968602 REV.1.5

To assure proper positioning in relation to wall,

note roughing-in dimensions.

ROUGHING-IN DIMENSIONS

Certified to comply with ANSI A112.18.1

Installation

Instructions

T430.50X

T431.50X

THREADED INLETS (STOPS)

5-7/8"

(149mm)

5-7/8"

(149mm)

INLETS 1/2" NPT

(13mm)

INLETS

1/2" NPT

(13mm)

OUTLETS

1/2" NPT

(13mm)

OUTLETS

1/2" NPT

(13mm)

3-3/8"

(86mm)

3-3/8"

(86mm)

3-3/8"

(86mm)

THREADED INLETS

Recommened Tools

Flat Blade Screwdriver

Adjustable Wrench

Channel Locks

Plumbers' Putty or Caulking

Phillips Screwdriver

4"

(102mm)

BOTTOM OF TUB

74" (1880mm)

FOR HEAD

CLEARANCE

18" (457mm)

OPTIONAL

4-7/8" REF.

(124mm)

1/2" (12mm) NPT

1/2" (13mm)

COPPER

7-1/4"

(184mm)

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 80''

(1651 AND 2032mm)

TOP OF TUB RIM

Teflon Tape

SHR. 1/2" (13mm) NOM.

COPPER SWEAT

TUB 1/2" (13mm) NOM.

COPPER SWEAT

SHR. 1/2" (13mm) NOM.

COPPER SWEAT

TUB 1/2" (13mm) NOM.

COPPER SWEAT

4-1/16"

(103mm)

4-1/16"

(103mm)

INLETS

4-1/16"

(103mm)

2"

(51mm)

SWEAT

INLETS

SWEAT

INLETS (STOPS)

INLETS

1/2" (13mm) NOM.

COPPER SWEAT

INLETS

1/2" (13mm) NOM.

COPPER SWEAT

1-5/8" TO 3-1/4"

(41 TO 83mm)

1-5/8" TO 3-1/4"

(41 TO 83mm)

FINISHED WALL

5" (127mm) REF.

12" (305mm) REF.

2-1/4"

(57mm)

Thank you for selecting American-Standard...the benchmark

of fine quality for over 100 years.

To ensure that your installation proceeds smoothly--please

read these instructions carefully before you begin.

1-1/2" REF.

(38mm)

BERWICK

™

/ BOULEVARD

™
