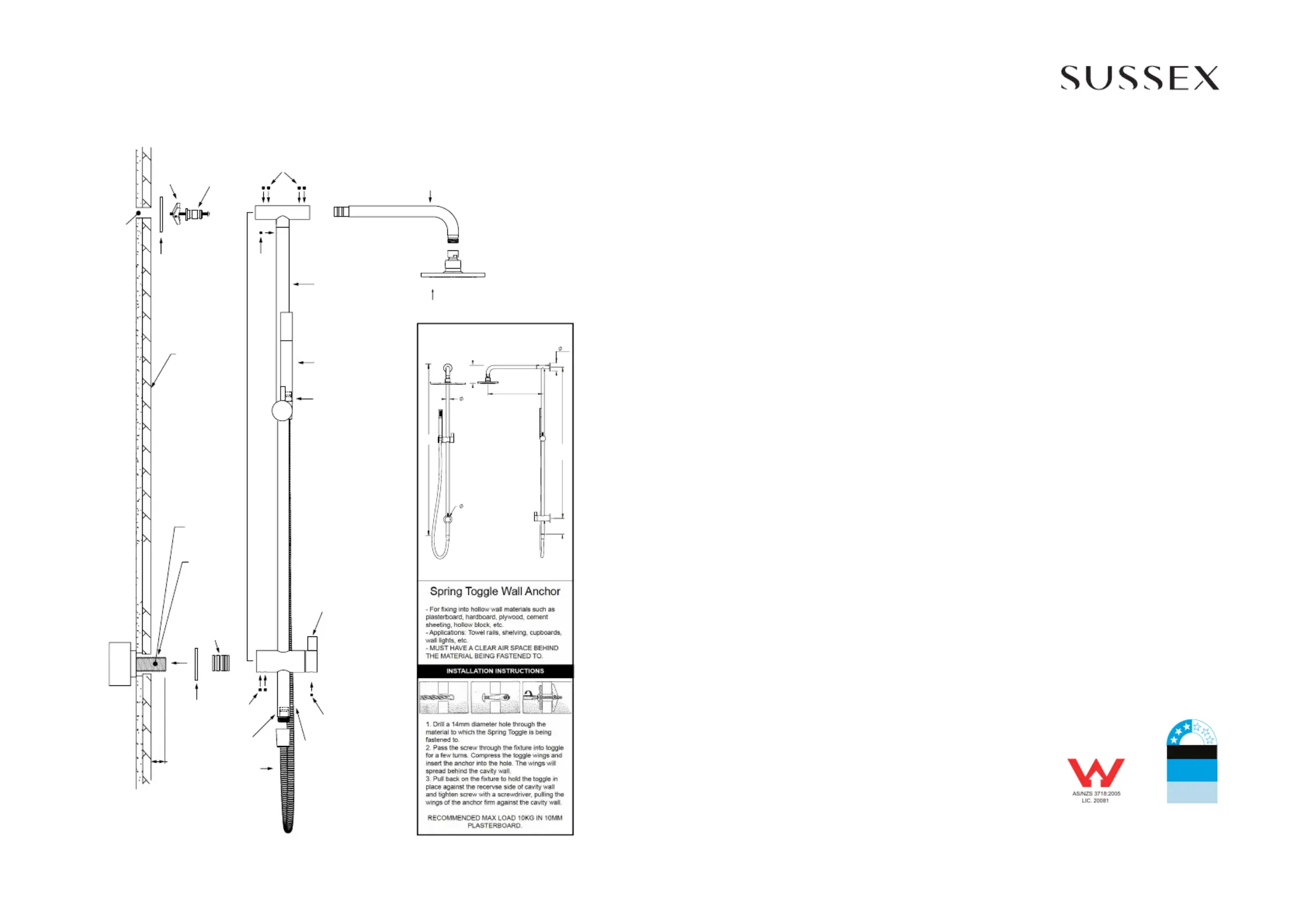

Shower

Hose

Shower

Hose

Extension

Check Valve

FINISHED WALL

15-20mm

Shower Arm

Shower Head

Slide Rail

Hand Shower

Check Valve

1090mm

To Suit

Toggle

Wall

Anchor

Toggle

Anchor

Wall Fixing

Dress ring

1/2" BSP

Lugged Elbow

Water Feed

Apply Sealant

Inlet

Fitting

Noggin

Use 10mm Allen

Key To Fit

Dress ring

Diverter

Set

Screw

Set

Screw

Set

Screws

Set

Screws

1090

395

115

60

130

22

40

1205

8.0

litres per

minute

Licence No. 0124

In accordance with AS/NZS 6400

Sussex Taps Pty Ltd

WATER RATING

www.waterrating.gov.au

The more

stars the more

water efcient

Product code

Installation guidelines

Calibre

-The Rail is supplied part assembled to suit a Bottom Water Inlet installation.

-Remove Inlet Fitting and Wall Fixing by loosening the Set Screws.

-Accurately mark out and drill for the Wall Fixing 1090mm from centre of Water Feed

(see Spring Toggle Wall Anchor guide).

-Ensure the wall penetration is sealed prior to connecting any fittings.

-Apply thread tape or appropriate sealant to Water Feed Thread and attach Inlet Fitting using 10mm Allen key.

-Using the provided Spring Toggle Anchor attach the Wall Fixing.

-Fit the Rail Shower as assembled onto the Wall Fixing and Inlet Fixing, secure by tightening the Set Screws

(tighten well).

-Align and fit the Shower Arm.

-Secure Shower Arm by tightening Set Screws.

-Attach Shower Head, tighten using spanner.

-Test function and water flow on both Shower Head and Hand Shower.

-Check for water leaks.

CTRS Twin rail shower

Twin rail shower

Tapware is to be installed by a Licensed Plumber in accordance with AS/NZS 3500:2003

Recommended working water pressure 300-500 kpa. Maximum water temperature is 65 deg.c

Copyright © Sussex Taps.sussextaps.com.au
