Flush Valve

RECOMMENDED TOOLS AND MATERIALS

Pictures may not exactly define contour of china

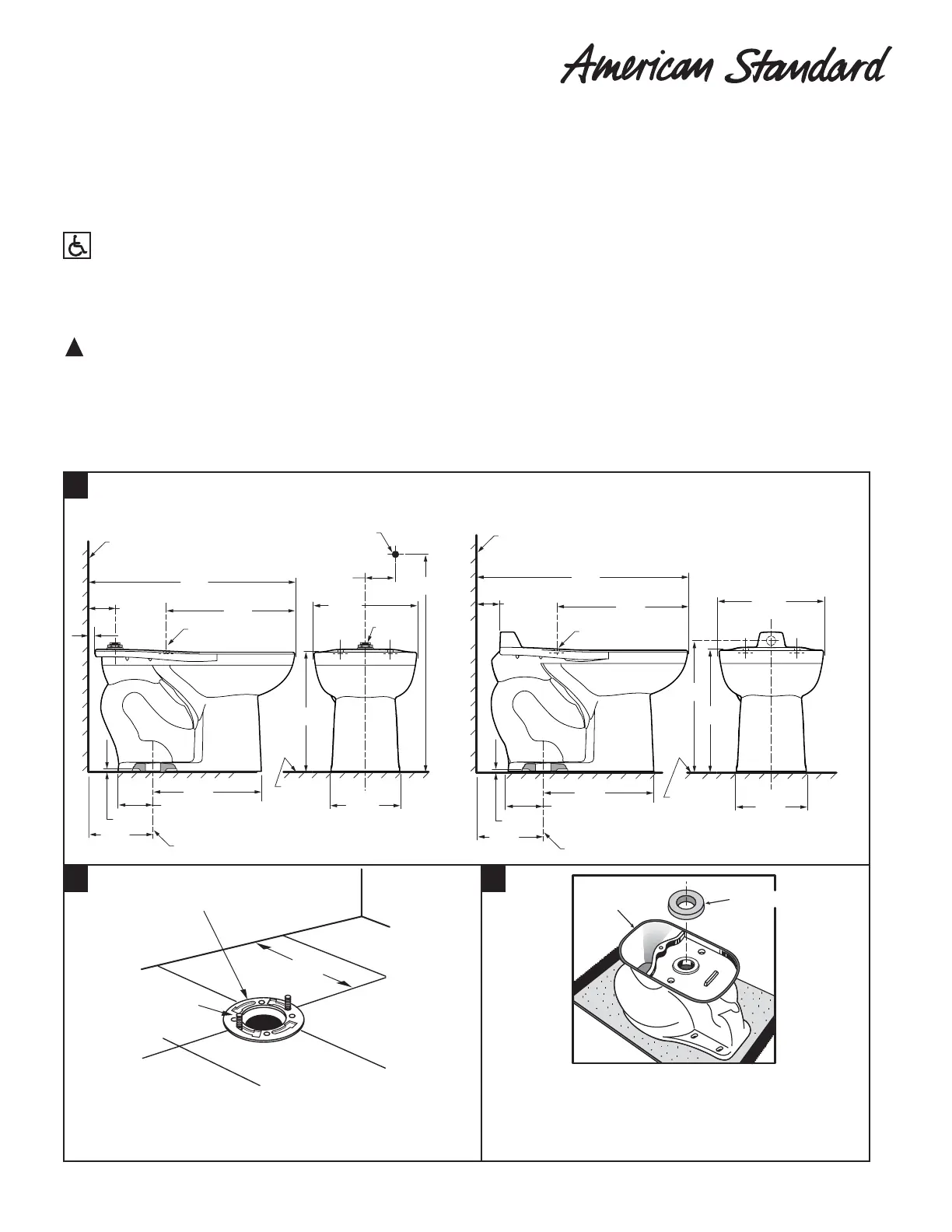

Model 3461, 3462, 3463, 3464, 3465, 3466

Model 3461, 3462, 3465, 3466Model 3463, 3464

MADERA 16-1/2" HEIGHT FLUSH VALVE

FLOOR MOUNTED TOILETS

CAUTION: PRODUCT IS FRAGILE. TWO PEOPLE ARE RECOMMENDED FOR

HANDLING TO AVOID BREAKAGE AND POSSIBLE INJURY!

NOTE: For proper operation product requires a minimum of 30 psi working line pressure

Meets the American Disabilities Act Guidelines and ANSI A117.1

Requirements for the Physically Challenged

Thank you for selecting American Standard – the benchmark of fine quality for over 100 years. To ensure this

product is installed properly, please read these instructions carefully before you begin. (Certain installations may

require professional help.) Also be sure your installation conforms to local codes.

!

INSTALL CLOSET BOLTS

Install closet bolts in flange channel, turn 90°, and slide

into place 6" (152 mm) apart and parallel to wall.

CLOSET FLANGE

CLOSET BOLTS

10"

254mm

WAX RING

SEALANT

INSTALL WAX SEAL

Invert toilet on floor (cushion to prevent damage), and

install wax ring evenly around waste flange (horn), with

tapered end of ring facing toilet. Apply a thin bead of

sealant around toilet base.

3

730mm

(28-3/4)

1 - 1/2

SPUD

121mm

(4-3/4)

238mm

(9-3/8)

419mm

(16-1/2)

470mm

(18-1/2)

356mm

(14)

338mm

(13-5/16)

150mm

(5-7/8)

254mm

(10)

13mm

(1/2)

25mm

(1)

102mm

(4)

718mm

(28-1/4)

C/L OF SEAT POST HOLES

140mm (5-1/2) CENTERS

FINISHED WALL

FINISHED

FLOOR

C/L OF OUTLET

1" N.P.T. OR 1" C.W.T. SUPPLY

TO FLUSH VALVE

238mm

(9-3/8)

419mm

(16-1/2)

438mm

(17-1/4)

470mm

(18-1/2)

356mm

(14)

338mm

(13-5/16)

150mm

(5-7/8)

254mm

(10)

13mm

(1/2)

76mm

(3)

718mm

(28-1/4)

C/L OF SEAT POST HOLES

140mm (5-1/2) CENTERS

FINISHED WALL

FINISHED

FLOOR

C/L OF OUTLET

INSTALLATION

INSTRUCTIONS
