CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE!

NOTE: For proper operation the recommended working pressure is between 25 psi at valve when flushing and 80 psi static.

!

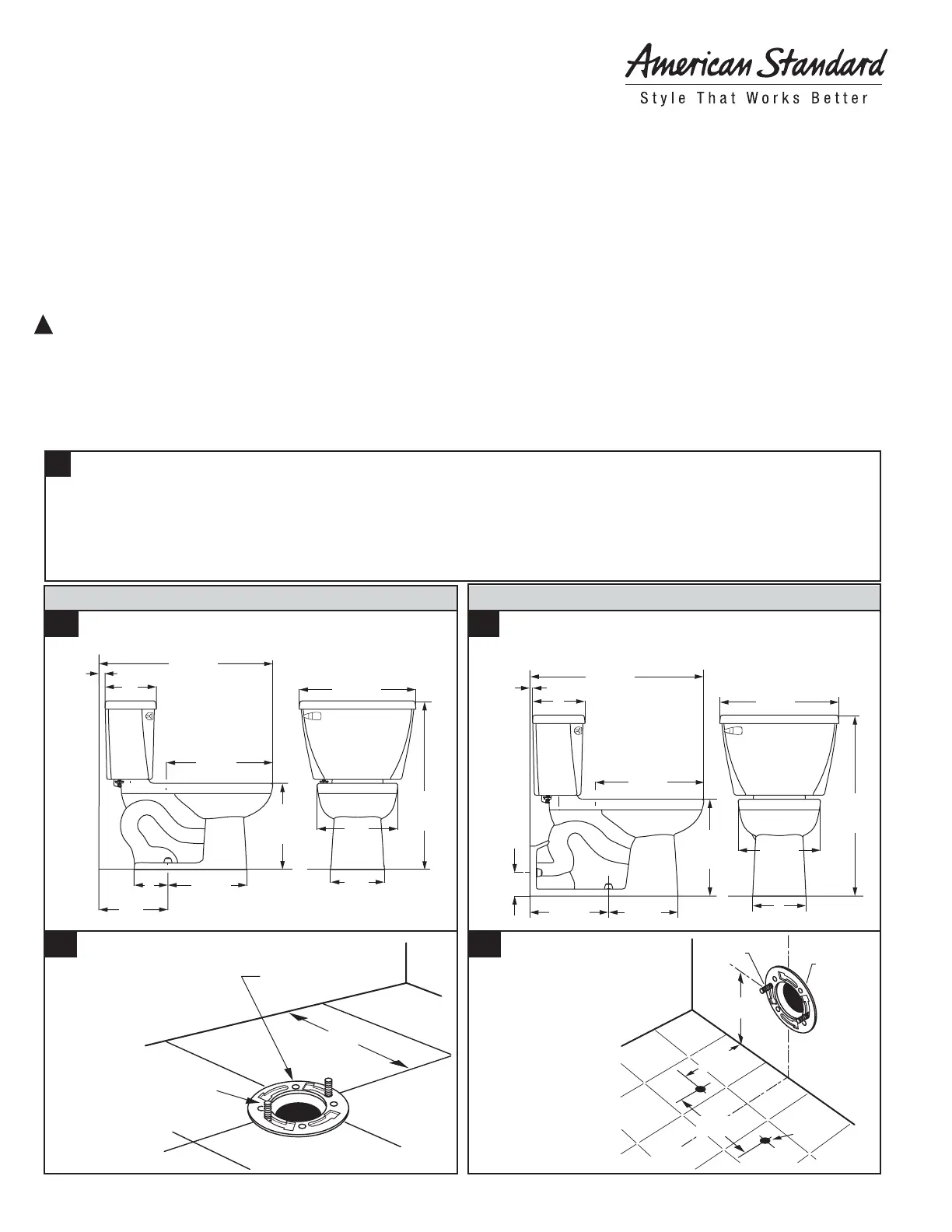

INSTALLATION INSTRUCTIONS

CADET 1.1 GPF TWO-PIECE PRESSURE-ASSISTED TOILETS

- Model 2462.100 Cadet Elongated 15"

- Model 2467.100 Cadet Elongated 16-1/2" High Bowl

YORKVILLE 1.1 GPF TWO-PIECE PRESSURE-ASSISTED TOILETS

- Model 2876.100 Yorkville Elongated 15"

- Model 2878.100 Yorkville Elongated 16-1/2" High Bowl

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is

installed properly, please read these instructions carefully before you begin. (Certain installations may require professional

help.) Also be sure your installation conforms to local codes.

RECOMMENDED TOOLS AND MATERIALS

Putty Knife Regular Screwdriver Adjustable Wrench Sealant Tape Measure

Hacksaw Wax Ring/Gasket Flexible Supply Tube Closet Bolts Carpenters Level

Closet Flange Set (Cadet Toilets) Neoprene or Graphite Felt Gasket (Yorkville Toilets)

1 REMOVE OLD TOILET

a. Close toilet supply valve and flush tank completely. Towel or sponge remaining water from tank and bowl.

b. Disconnect and remove supply line. NOTE: If replacing valve, first shut off main water supply!

c. Remove old mounting hardware, remove toilet and plug floor waste opening to prevent escaping sewer gases.

d. Remove closet bolts from flange and clean away old wax, putty, etc. from base area.

NOTE: Mounting surface must be clean and level before new toilet is installed!

SAVE FOR FUTURE USE

7301276-100

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2008

2-2

3-2

2-1

3-1

DIMENSIONS (Nominal) NOTE: Distance from floor to closet

flange centerline (rough-in) must be 4" (102 mm) with flange

surface flush to 1/16" (16mm) max. beyond finished wall.

DIMENSIONS (Nominal) NOTE: Distance from wall to closet

flange centerline (rough-in) must be 12" (305 mm)

FOR CADET TOILETS:FOR YORKVILLE TOILETS:

FLUSH TO

1/16" (16mm)

EXPOSED

CLOSET

FLANGE

CLOSET

BOLTS

168mm

(6-5/8")

PILOT

HOLES

102mm

(4)

346mm

(13-5/8)

Install closet bolts in flange

channel, turn 90°, and slide

into place 6" (152 mm) apart

and parallel to floor. (Use

putty to hold bolts in place if

necessary.) Brace under

flooring as needed and

drill two mounting pilot

holes as shown.

INSTALL CLOSET BOLTS

Install closet bolts in flange

channel, turn 90°, and slide

into place 6" (152 mm)

apart and parallel to wall.

INSTALL CLOSET BOLTS

305mm

(12)

CLOSET FLANGE

CLOSET BOLTS

29-3/4"

(752mm)

18-1/2"

(470mm)

20-1/2"

(516mm)

9"

(230mm)

14"

(356mm)

16-1/2"

(419mm)

30-3/4"

(780mm)

13-1/2"

(340mm)

12"

(300mm)

4"

(102mm)

9"

(226mm)

1/2"

(11mm)

30-1/4"

(768mm)

20-1/2"

(516mm)

18-1/2"

(470mm)

12"

(304.8mm)

13-3/4"

(347mm)

9-1/2"

(238mm)

14"

(356mm)

6"

(150mm)

9"

(226mm)

1"

(27mm)

15"

(381mm)

29-1/4"

(742mm)
