RECOMMENDED TOOLS

Flat Blade Screwdriver

Adjustable Wrench

Channel Locks

Plumbers' Putty or Caulking

Phillips Screwdriver

Teflon Tape

FINISHED

WALL

4"

TOP OF TUB RIM

BOTTOM OF TUB

74" FOR HEAD

CLEARANCE

4-7/8" REF.

3-5/8" REF.

1-5/8" TO 3-1/4"

18" OPTIONAL

5-1/8" REF.

1/2" NPT

1/2" COPPER

6-3/4"

1-1/2" REF.

8-1/2" REF.

5-1/2" REF.

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 78'

"SEE ILLUSTRATION "

Thank you for selecting American-Standard...the benchmark of fine

quality for over 100 years.

To ensure that your installation proceeds smoothly-- please read these

instructions carefully before you begin.

Certified to comply with ANSI A112.18.1

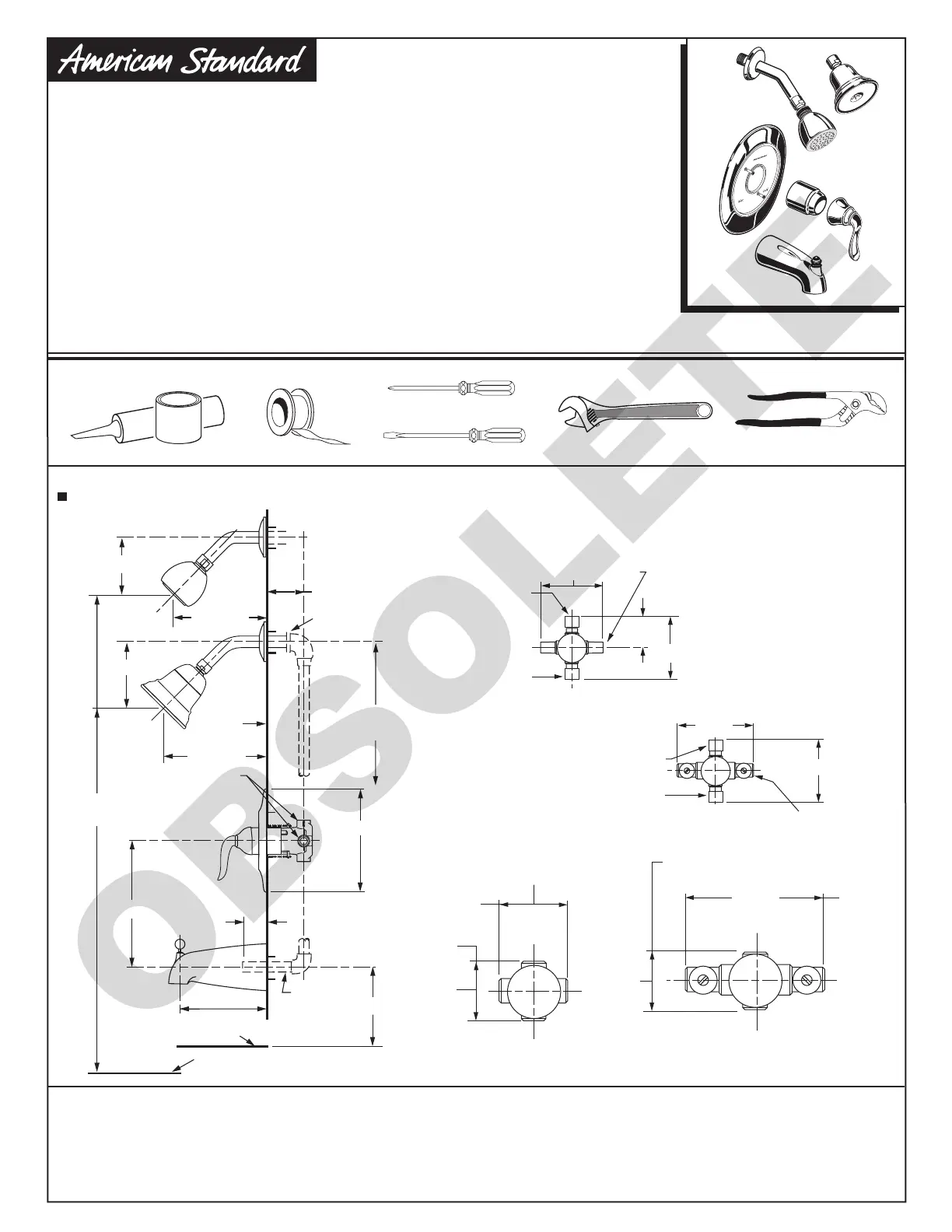

ROUGHING-IN DIMENSIONS (For reference only)

To assure proper positioning in relation to wall, note roughing-in dimensions.

PRESSURE BALANCING

BATH AND SHOWER

TRIM KITS

M968841 REV. 1.5

PRINCETON

Installation

Instructions

T508.50X

DO NOT: CLEAN THE PRODUCT WITH SOAPS, ACID, POLISH, ABRASIVES, HARSH CLEANERS, OR A CLOTH

WITH A COARSE SURFACE.

CARE INSTRUCTIONS:

DO: SIMPLY RINSE THE PRODUCT CLEAN WITH CLEAR WATER. DRY WITH A SOFT COTTON FLANNEL CLOTH.

THREADED INLETS (STOPS)

INLETS

1/2" NPT

5-7/8"

INLETS 1/2" NPT

OUTLETS

1/2" NPT

OUTLETS

1/2" NPT

3-3/8"

3-3/8"

3-3/8"

THREADED INLETS

SHR. 1/2" NOM.

COPPER SWEAT

TUB 1/2" NOM.

COPPER SWEAT

4-1/16"

5-7/8"

INLETS

4-1/16"

4-1/16"

INLETS

1/2" NOM.

COPPER

SWEAT

SHR. 1/2" NOM.

COPPER SWEAT

TUB 1/2" NOM.

COPPER SWEAT

2"

SWEAT

INLETS

SWEAT

INLETS (STOPS)

INLETS

1/2" NOM.

COPPER

SWEAT

OBSOLETE
