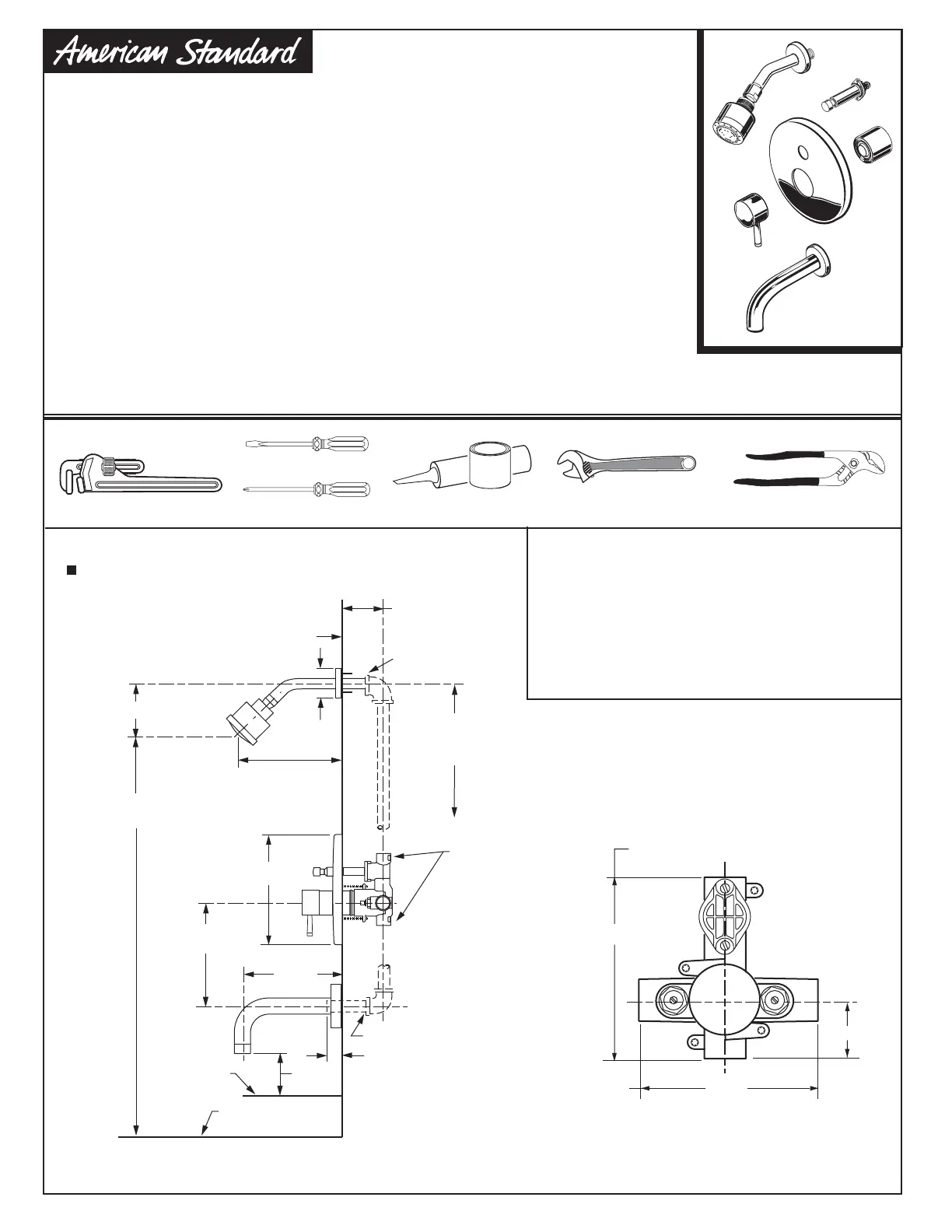

5-5/8" REF.
T064.60X
M968836 Rev.1.4
To assure proper positioning in relation to wall, note
roughing-in dimensions.
ROUGHING-IN DIMENSIONS
Certified to comply with ANSI A112.18.1
Installation
Instructions
THREADED INLETS (STOPS)
INLETS
1/2" NPT
5-5/8"
1-3/4"
OUTLETS 1/2" NPT
5-5/8"
Recommended Tools
Flat Blade Screwdriver
Adjustable Wrench
Channel Locks
Plumbers' Putty or Caulking
Phillips Screwdriver
1-5/8" TO 3-1/4"
BOTTOM OF
TUB
74" FOR
HEAD CLEARANCE
1/2" NPT
FINISHED WALL
OPTIONAL TO
FINISHED FLOOR
USUALLY BETWEEN
80'' AND 86'
8-1/8" REF.
4"
6-3/4"
1/2" NPT
1/2" REF.
18"
OPTIONAL
"SEE ILLUSTRATION"
TOP OF
TUB RIM
SHW
TUB
Pipe Wrench
BATH/SHOWER TRIM KIT WITH DIVERTER
7-1/4" D.
2-3/8"
SERIN
™
To ensure that your installation proceeds smoothly-please read these
instructions carefully before you begin.
Thank you for selecting American-Standard...the benchmark
of fine quality for over 100 years.
To ensure that your installation proceeds smoothly--please
read these instructions carefully before you begin.
DO: SIMPLY RINSE THE PRODUCT CLEAN WITH
CLEAR WATER. DRY WITH A SOFT COTTON
FLANNEL CLOTH.
DO NOT: DO NOT CLEAN THE PRODUCT WITH
SOAPS, ACID, POLISH, ABRASIVES, HARSH
CLEANERS, OR A CLOTH WITH A COARSE
SURFACE.
CARE INSTRUCTIONS:
