Certified to comply with ANSI A112.18.1

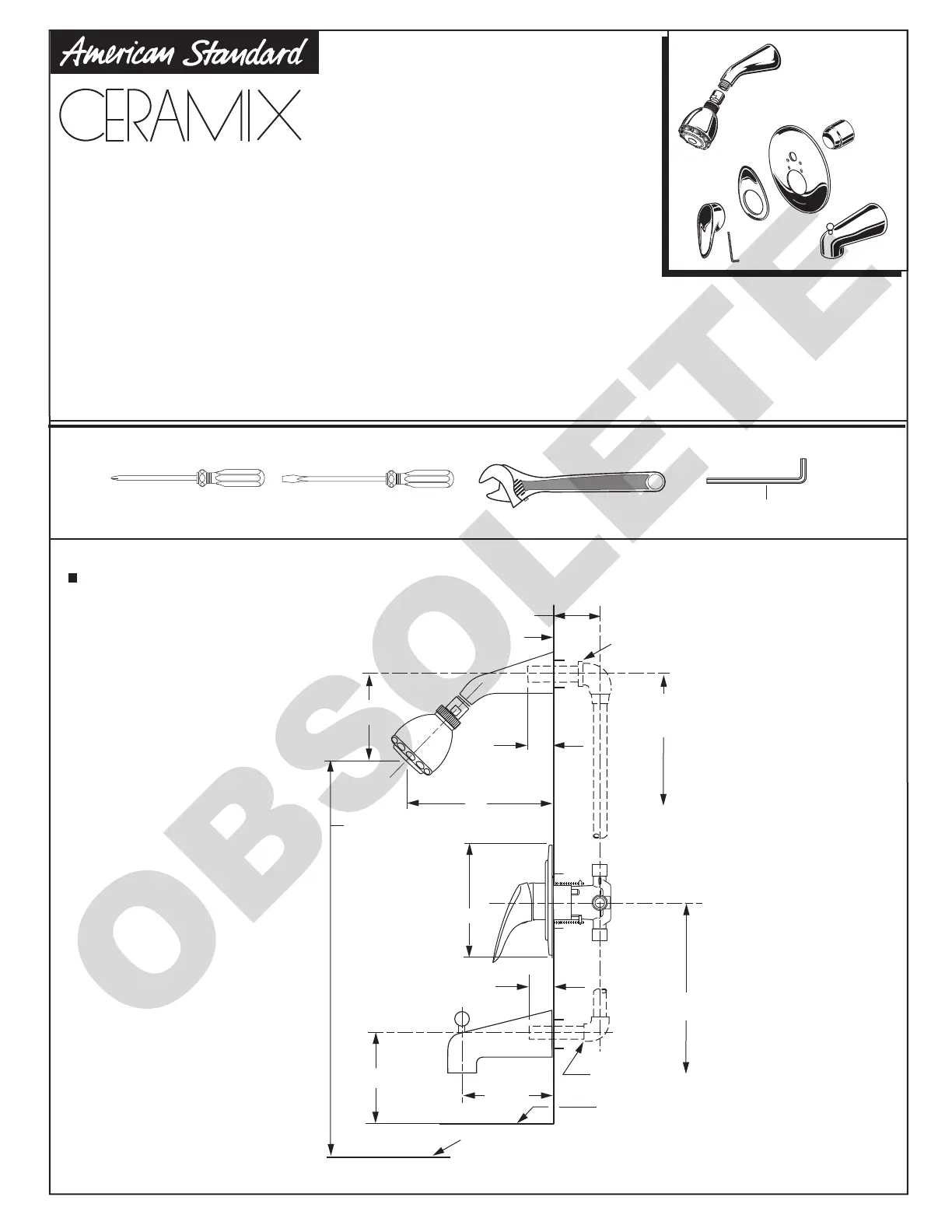

ROUGHING-IN DIMENSIONS

Installation

Instructions

TOO050X

BATH/SHOWER TRIM KIT

*Hex key (Supplied with Fitting)

Required Tools

Adjustable Wrench

Flat Blade Screwdriver

Phillips Screwdriver

TM

CAUTION: Protect the finish on SHOWER ARM,

SHOWER HEAD and TUB SPOUT when installing.

FINISHED WALL

4"

TOP OF TUB RIM

BOTTOM OF TUB

74" FOR HEAD CLEARANCE

1-5/8" TO 3-1/4"

5-1/8"

1/2" NPT

7-7/8"

1/2” REF.

5-1/8"

OPTIONAL TO FINISHED

FLOOR USUALLY

BETWEEN 65'' AND 78'

1/2" NPT

48" TO

54" OPTIONAL

9"

1"

Replace the "YYY" with

appropriate finish code

CHROME

WHITE

BONE

WHITE/CHROME

BLACK NICKEL/POL. BRASS

POLISHED BRASS

SATIN

SATIN/POL. BRASS

CHROME/POL. BRASS

002

020

021

025

062

099

295

297

299

T00050X

MODEL NUMBER

TM

BATH/SHOWERTRIM

ProductnameslistedhereinaretrademarksofAmericanStandardInc.

©AmericanStandardInc.2002

HOT LINE FOR HELP

For toll-free information and answers to your questions, call:

1 (800) 442-1902

Weekdays 8:00 a.m. to 6:00 p.m. EST

IN CANADA 1-800-387-0369 (TORONTO 1-905-306-1093)

Weekdays 8:00 a.m. to 7:00 p.m. EST

023572-YYY0A

DIVERTER SPOUT (IPS)

M953580-YYY0A

SHOWER HEAD

M900500-YYY0A

DELUXE SHOWER ARM

012653-YYY0A

DIVERTER SPOUT REPAIR KIT

M961740-YYY0A

ESCUTCHEON KIT AND SCREWS

M907052-YYY0A

ESCUTCHEON CAP

A918647-0070A

ESCUTCHEON SCREWS

078016-0020A

SCREWS

M961827-0070A

ESCUTCHEON HOLDER KIT

030126-0070A

HANDLE INDEX SET

M961741-YYY0A

LEVER HANDLE

M961743-YYY0A

DECORATIVE RING

Hex key (Supplied with Fitting)

9

10

5

6

7

15

3

4

13

8

8

12

2

14

11

1

INSTALL TRIM

1

Remove PLASTER GUARD (12).

Push CAP (1) over VALVE CARTRIDGE (2).

Mount ESCUTCHEON CARRIER (3) to valve body using SCREWS (4).

Mount ESCUTCHEON (5) to ESCUTCHEON CARRIER (3) using

SCREWS (6).

Attach DECORATIVE RING (7) to ESCUTCHEON (5).

Remove PIPE CAPS (8) from shower pipe and tub filler pipe.

Install SHOWER ARM (9) and SHOWER HEAD

(10).

Install TUB FILLER SPOUT (11).

Push HANDLE (13) onto CARTRIDGE STEM (14) and tighten

SET SCREW (15).

M968739Rev.1.1

M968739Rev.1.1

M968739 Rev. 1.1

3

EverClean™ Finish Care Instructions

American Standard’s EverClean finish will wipe clean with a soft, dry cloth. A soft cloth with

clean water may also be used, if desired. No additional cleaning products are required.

DO NOT USE: Soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.

To assure proper positioning in relation to wall,

note roughing-in dimensions.

IN MEXICO 01-800-839-12-00

Congratulations on purchasing your American Standard faucet with

EverClean finish found only on American Standard faucets.

EverClean Finish

•One wipe effortlessly removes spots

•Eliminates the need for cleaners and scrubbing

•Permanent surface protectant remains beautiful

for the life of the faucet

•EverClean™ available on: Polished Chrome, Satin Nickel,

Stainless Steel, Polished Brass (or any combination of these finishes)

To ensure that your installation proceeds smoothly-please read these

instructions carefully before you begin.

withEverClean™ Finish

2

ADJUST HOT LIMIT STOP

By restricting handle rotation and limiting the amount of hot water allowed to mix with the cold, the HOT LIMIT SAFETY STOP

reduces risk of accidental scalding. To set the maximum hot water temperature of your faucets, all you need to do is adjust

the setting on the HOT LIMIT SAFETY STOP.

Use a flat blade screwdriver or your fingers to pull up and rotate red HOT LIMIT SAFETY STOP (1). Follow Step "A" or "B" to

adjust min./max. discharge temperature. "0" being the hottest to "7" the coldest temperature setting. Factory set at "0".

HOT LIMIT SAFETY STOP ADJUSTMENT

PRY RED RING FORWARD AND ROTATE

COUNTER-CLOCKWISE ONE CLICK

PRY RED RING FORWARD AND ROTATE CLOCKWISE

"A"

ADJUSTMENT WHEN WATER IS TOO HOT

"A"

"B"

"B"

ADJUSTMENT WHEN WATER IS TOO COLD

"RED RING"- HOT LIMIT SAFETY STOP

TEMPERATURE SETTING NUMBERS

0

1

2

3

4

5

6

1
