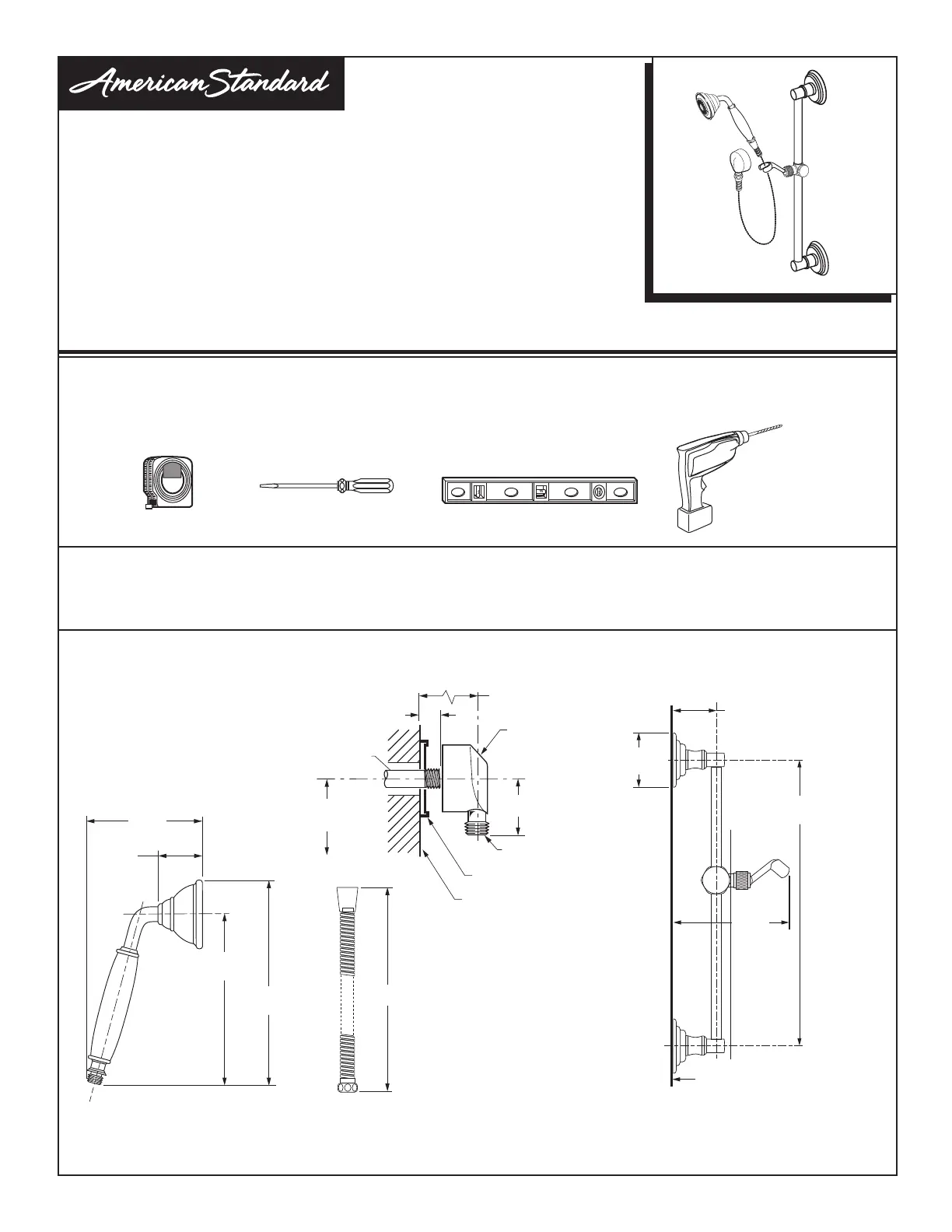

- 1 -

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2016

Thank you for selecting American Standard...

the benchmark of fine quality for over 100 years.

To ensure that your installation proceeds smoothly-please read

these instructions carefully before you begin.

RECOMMENDED TOOLS AND MATERIALS

Most of the procedures require the use of common tools and materials, which are available from hardware and plumbing

supply stores. It is essential that the tools and materials be on hand before work is begun.

M965758 (6/16)

For all Models

Adjustable Personal

Hand Shower Bar

ROUGHING-IN DIMENSIONS:

• For reference

24"

(610 mm)

2-3/8" DIA

(60 mm)

1-7/8"

(48 mm)

5-1/2"

(140 mm)

FINISHED

WALL

WALL SUPPLY

WITH BUILT IN

BACK FLOW

PREVENTER

1/2"

(13 mm)

1-1/16"

(26 mm)

1-7/16"

(37 mm)

1/2 N.P.T.

(13 mm)

(48" - 60") (OPTIONAL)

TO FINISHED FLOOR

(1219 - 1524 mm)

RUBBER GASKET

FINISHED WALL

1/2" NPSM HOSE

CONNECTION (13 mm)

59"

(1499 mm)

6-3/8"

(162 mm)

4-7/8"

(124 mm)

2"

(51 mm)

8-3/16"

(208 mm)

DrillFlat Blade ScrewdriverLevel

10'

Tape Measure

CARE AND CLEANING

Do: Simply rinse the product clean with clear water, dry with a soft cotton flannel cloth.

Do Not: Clean the product with soaps, acid, polish, abrasives, harsh cleaners, or a cloth with a coarse surface.

INSTALLATION

INSTRUCTIONS

Certied to comply with ANSI A112.18.1M
