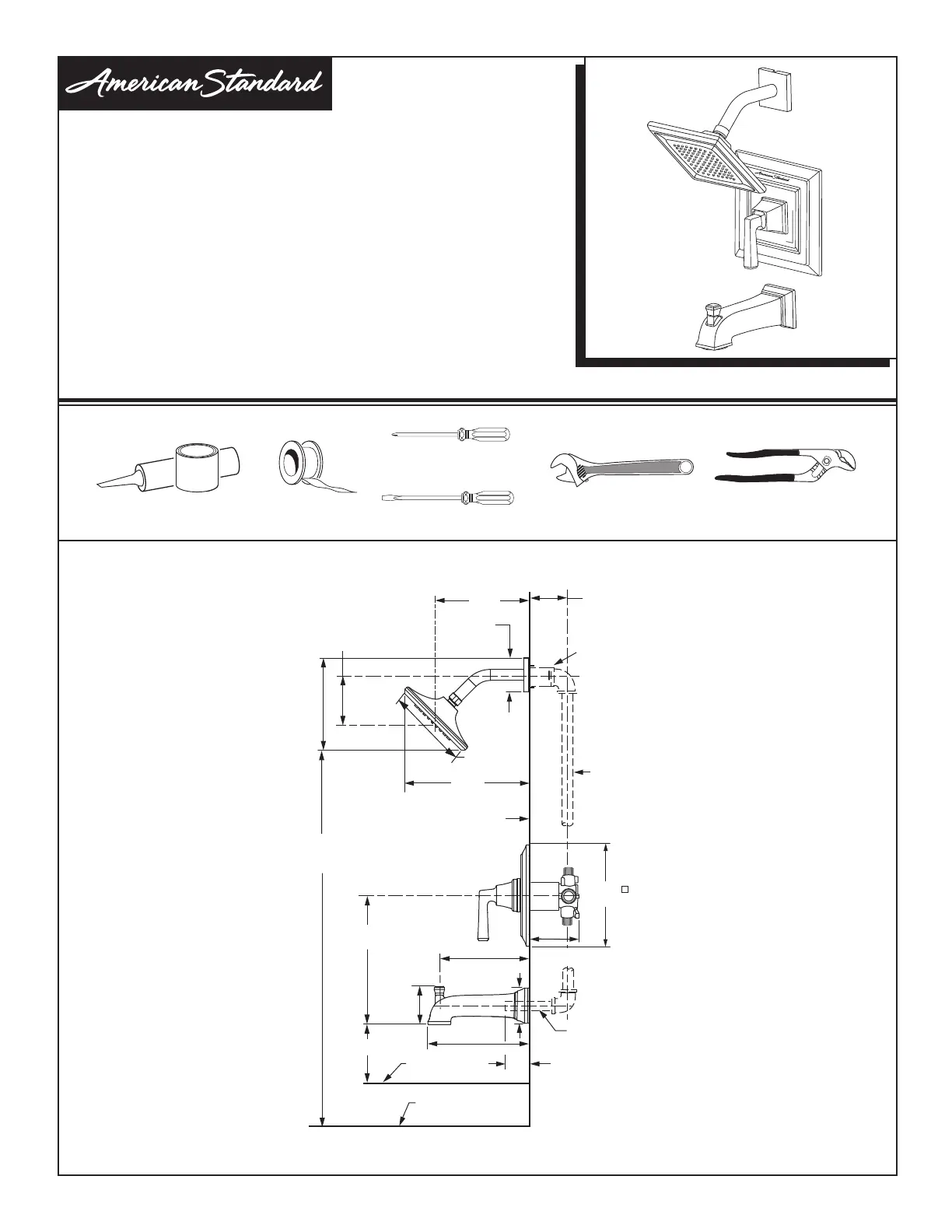

- 1 -

Product names listed herein are trademarks of AS America, Inc.

© AS America, Inc. 2018

Thank you for selecting American Standard...

the benchmark of fine quality for over 140 years.

To ensure that your installation proceeds smoothly-please

read these instructions carefully before you begin.

RECOMMENDED TOOLS

M965904 (4/18)

ROUGHING-IN DIMENSIONS

TOWN SQUARE

®

S

PRESSURE BALANCE

BATH AND SHOWER

TRIM KIT

INSTALLATION

INSTRUCTIONS

T455.50X

Plumbers’ Putty

or Caulking

Adjustable WrenchChannel Locks

Phillips Screwdriver

Certied to comply with ANSI A112.18.1M

• To assure proper positioning in relation to wall.

Note roughing-in dimensions.

Teon TapeFlat Blade Screwdriver

OFF

C

H

1-5/8" TO 3-1/4"

(41 mm TO 83 mm)

BOTTOM OF

TUB

1/2" NPT

FINISHED WALL

1/2" COPPER

TOP OF

TUB RIM

1-3/4" MIN.

(44 mm)

1/2" NPT

7-1/8"

(181 mm)

9-1/8"

(232 mm)

3-1/2"

(90 mm)

6-3/4"

(72 mm)

2-1/2"

(64 mm)

2-5/8"

(66 mm)

7-3/8"

(187 mm)

4" (102 mm)

74" FOR HEAD

CLEARANCE

(188 cm)

18" OPTIONAL

(457 mm)

2-7/8"

(72 mm)

6-5/16"

(160 mm)

7-3/8"

(188 mm)

2-3/4" MAX. (69 mm)

1-3/4" MIN. (45 mm)
