AWMS-46W35 | Page 1 of 7

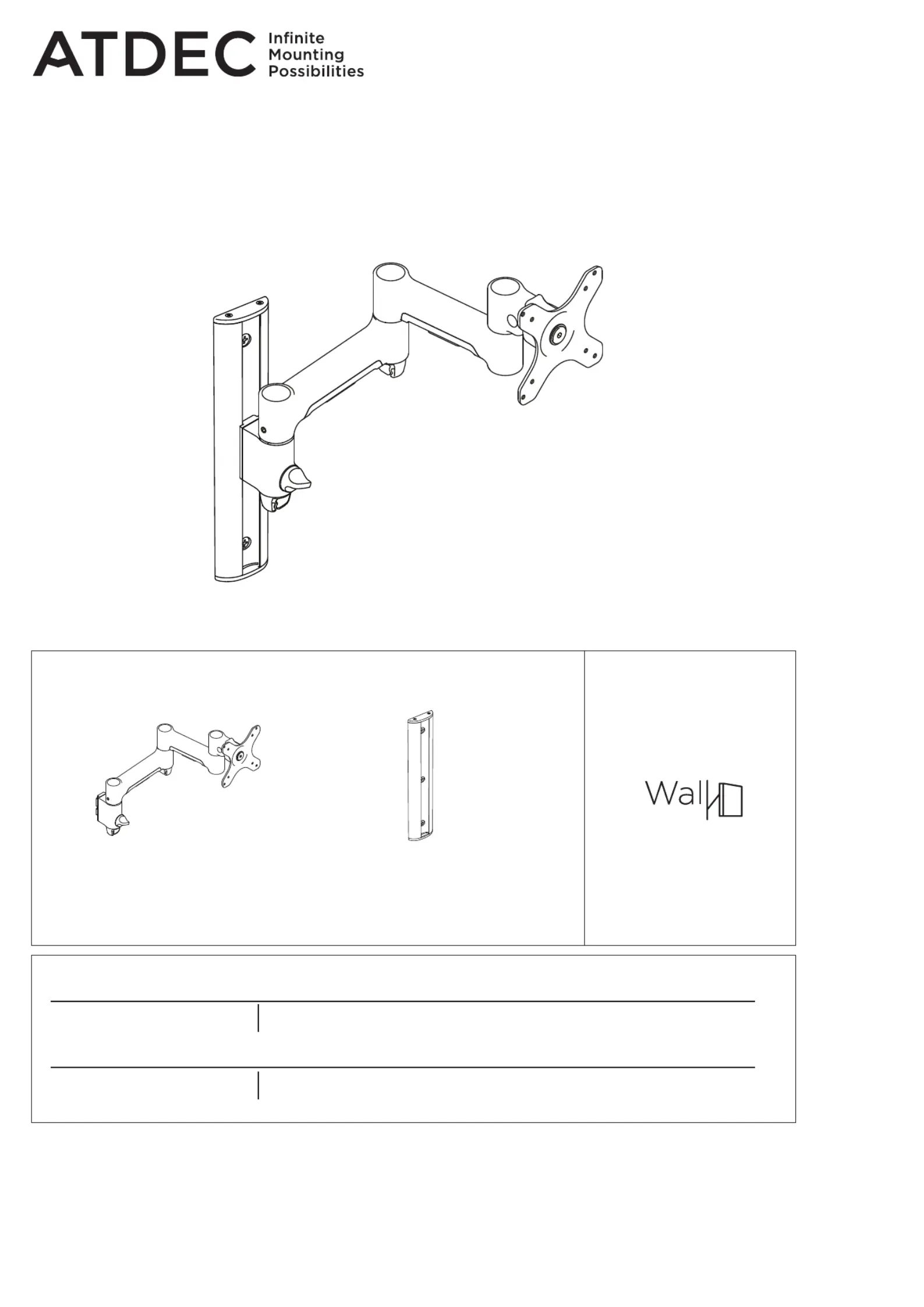

Installation Guide
AWMS-46W35
Single Monitor Arm on Wall Mount
COMPONENT CHECKLIST RANGE
CONTENTS
A
AWM-A46
460 Arm
(x1)
B
AWM-W35
350 Wall Channel
(x1)
350 Wall Channel
Page 2
Page 3
460 Arm
Page 4
Page 5
AWM-W35
Component Checklist
Channel Installation
AWM-A46
Component Checklist
Arm Installation

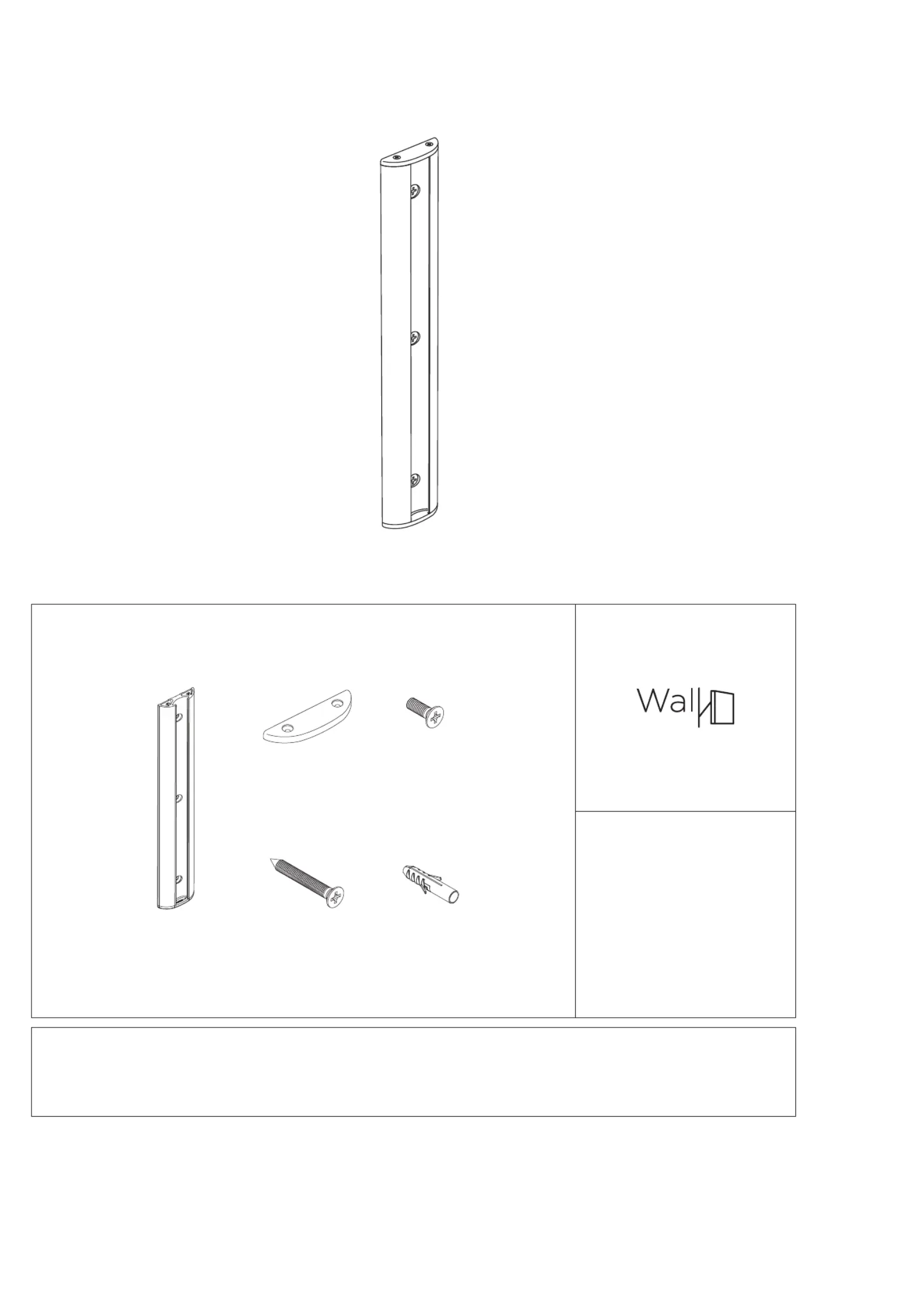

AWMS-46W35 | Page 2 of 7
AWM-W35
Wall Channel
COMPONENT CHECKLIST
REQUIRED TOOLS
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! This product is compatible with Atdec modular (AWM) products.
! The manufacturer accepts no responsibility for incorrect installation.
A
Wall channel
(x1)
E
Nylon
Anchor (x3)
C
Top Cap
Screws
(x2)
B
Top Cap
(x1)
D
M6 x 50mm
Countersunk
Screw (x3)
• Power Drill
• 4mm (
5
/
32
”) Drill Bit
• 8mm (
5
/
16
”) Drill Bit
• Phillips Head Screwdriver

AWMS-46W35 | Page 3 of 7

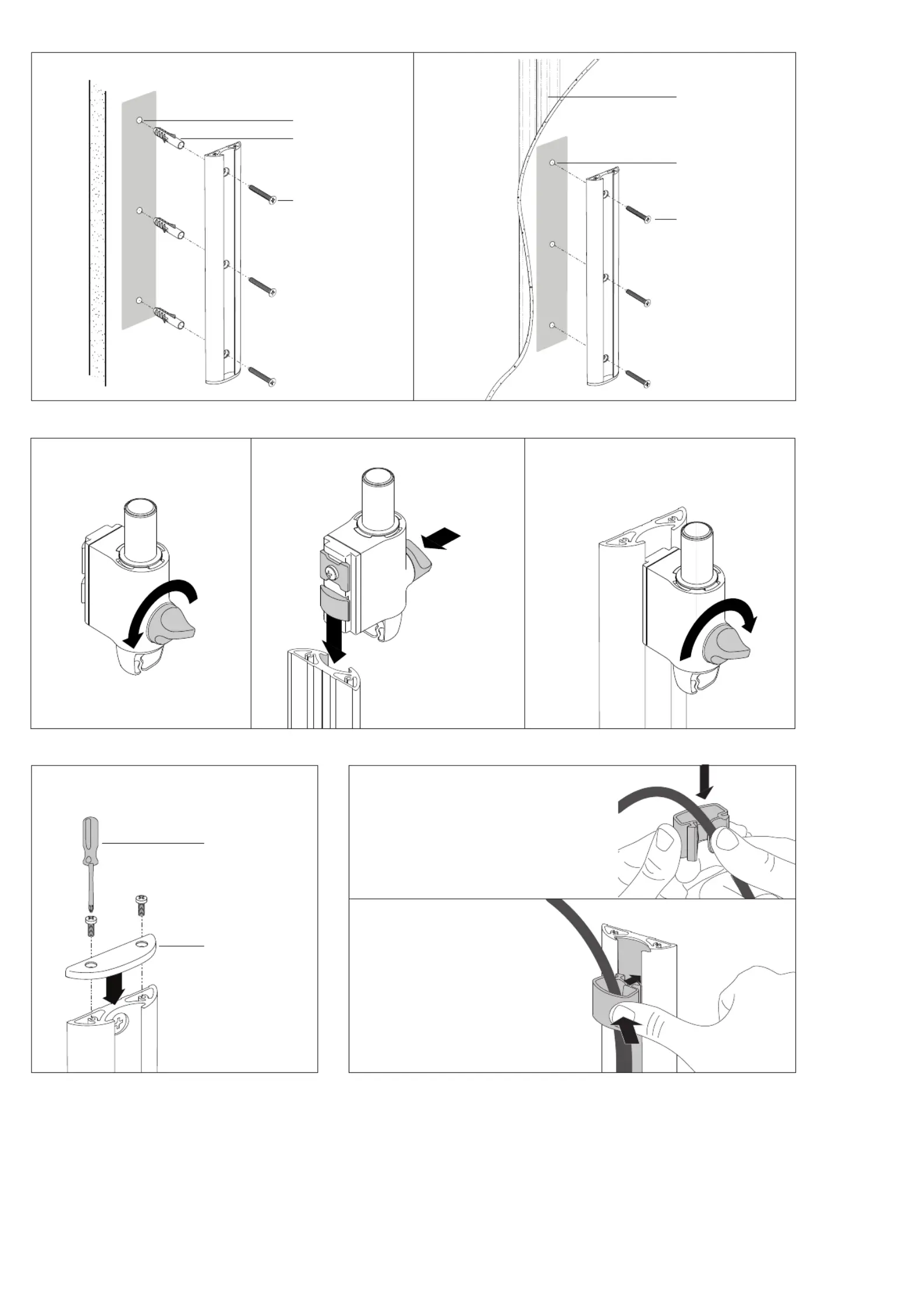

3. Install top cap Cable clips4.
4.1 Push the cable down into the Cable Clip.
4.2 Insert one side of the
Cable Clip into the Channel
on the Post assembly
or Wall Channel, before
pushing the other side in.
3.1 Attach Top Cap
Phillips Head
Screwdriver
Top Cap
1.1 1.2 Masonry Timber stud
1. Install Wall Channel - Ensure all fasterners are installed
Note: Cable clips
sold separately in
packs of four.
8mm (
5
/
16
”) holes
4mm (
5
/
32
”) holes
Stud
Nylon anchors
M6 x 50mm
Screws
M6 x 50mm
Screws
2. Fit channel clamp to wall channel
2.1 Ensure knob is undone. Slide clamp into channel.2.2
Push knob to
aid insertion
2.3 Hold clamp in desired position on post
and turn knob to lock in place.
