AWM-W Page 1 of 2

Installation Guide

AWM-W

AWM Single Wall Bracket

IMPORTANT INFORMATION

! Please ensure this product is installed as per these installation instructions.

! Do not remove or throw away the plastic sleeve on wall bracket.

! The manufacturer accepts no responsibility for incorrect installation.

! Failure to install this product correctly may cause serious injury/death during or following installation.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! This product should only be installed by professional installers of good mechanical aptitude, who have experience with

building construction, and fully understand these instructions and the consequences of incorrect installation.

! Supplied wall fasteners are for timber stud wall constructions . For other wall constructions, such as masonry, alternative only

suitable wall fasteners should be sourced by the installer.

! To safely achieve the full capacity of this product, wall fasteners must have a pull-out (tension) force rating of at least 100kg

(1000N) per fastener. This rating must include a safety factor.

! Professional installer to ensure adequate structural capacity of wall (including appropriate safety factor) to support total

weight of all equipment being mounted.

! Drilling into electrical wires can cause death - use appropriate equipment and caution when drilling holes in walls to avoid

electrical cables, water pipes and gas pipes. Do not drill into structures unless you have established it’s safe to do so.

! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts),

and offset VESA locations exert additional leverage that can exceed the capacity of the mount even though the monitor

weight may be within the stated range. Please contact Atdec if you would like further information.

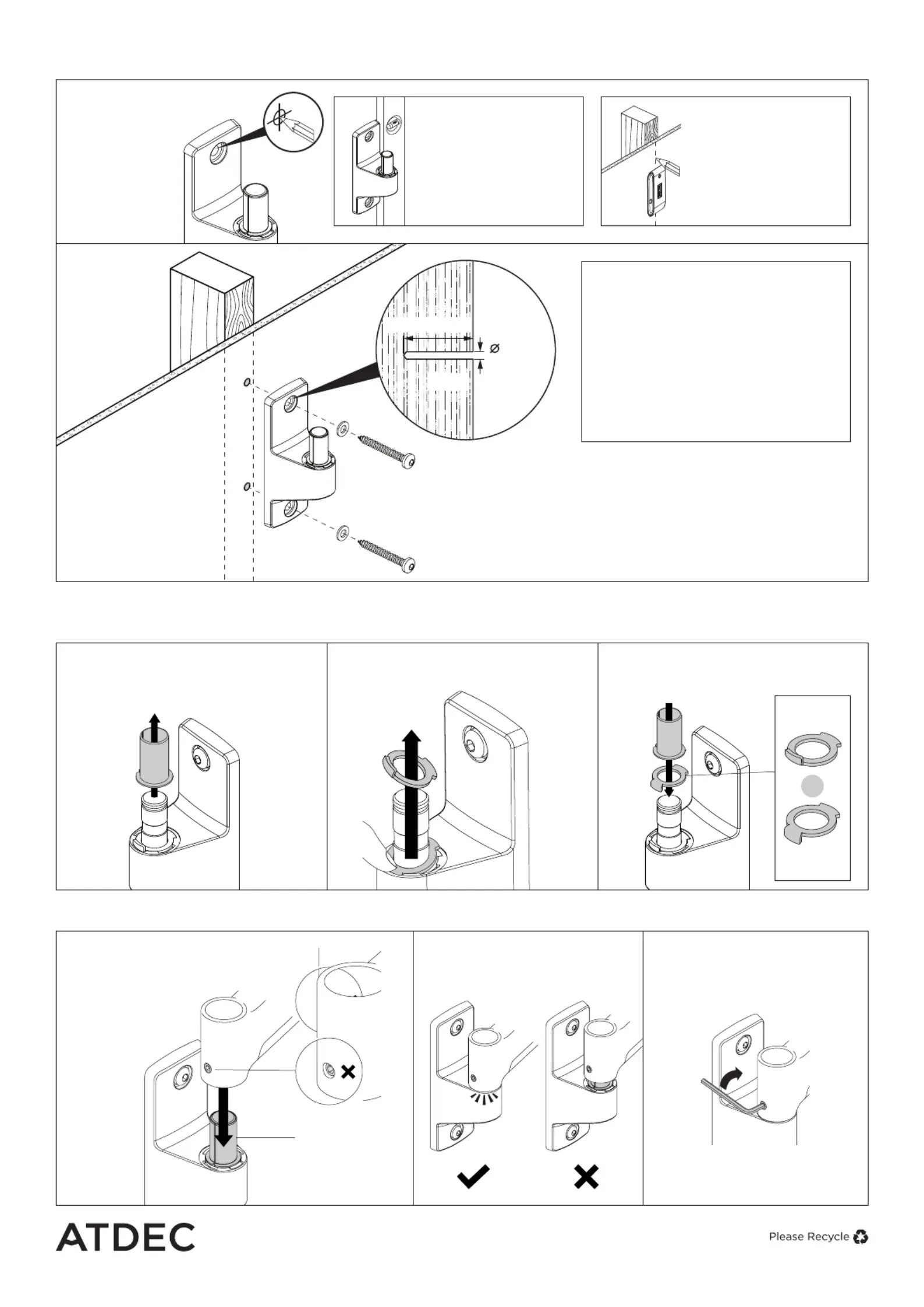

COMPONENT CHECKLIST

REQUIRED TOOLS

• Power drill

• Suitable drill bit

• Driver bit for selected wall fasteners

• Stud nder

• Spirit level

WEIGHT RANGE

0 - 18kg

(0 - 40lb)

Monitor weight should be within the weight range

of all modular elements that make up the complete

monitor mounting solution.

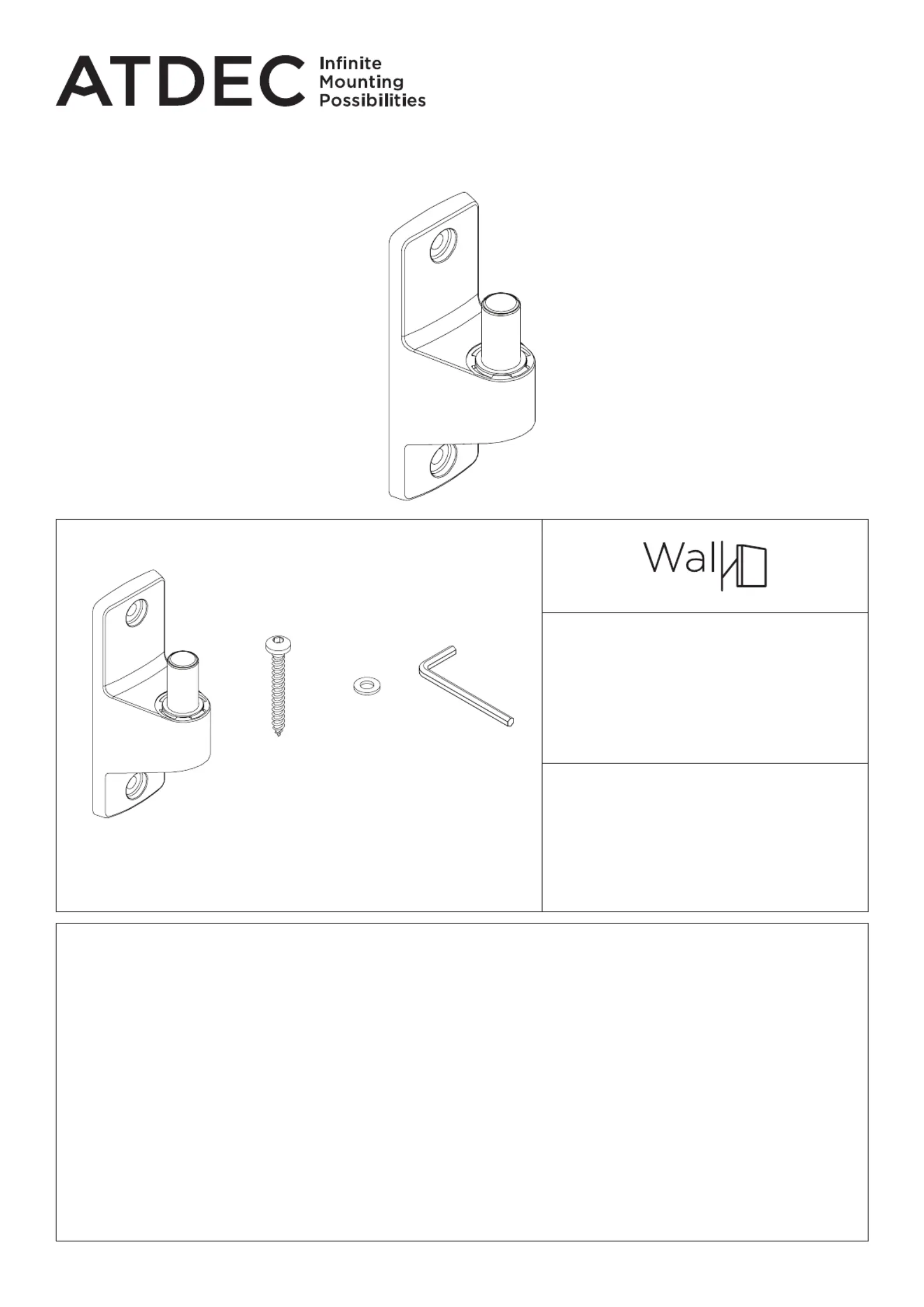

Washers

(x2)

M8x70mm

Screw

(x2)

6mm

Hex Key

(x1)

Single Wall Bracket

(x1)

Produktspezifikationen

Marke:	Atdec
Kategorie:	Flachbildschirmunterstützung
Modell:	AWM-W-B
Breite:	65 mm
Tiefe:	180 mm
Gewicht:	600 g
Produkttyp:	Schelle
Produktfarbe:	Schwarz
Höhe:	80 mm
Befestigungstyp:	Wand
Höchstgewichtskapazität:	18 kg
Menge pro Packung:	1 Stück(e)
Gehäusematerial:	Aluminium
Anzahl Produkte pro Versandkarton:	10 Stück(e)
Länge des Versandkartons:	346 mm
Breite des Versandkartons:	207 mm
Höhe des Versandkartons:	180 mm
Gewährleistungsfrist:	10 Jahr(e)
