FC104T

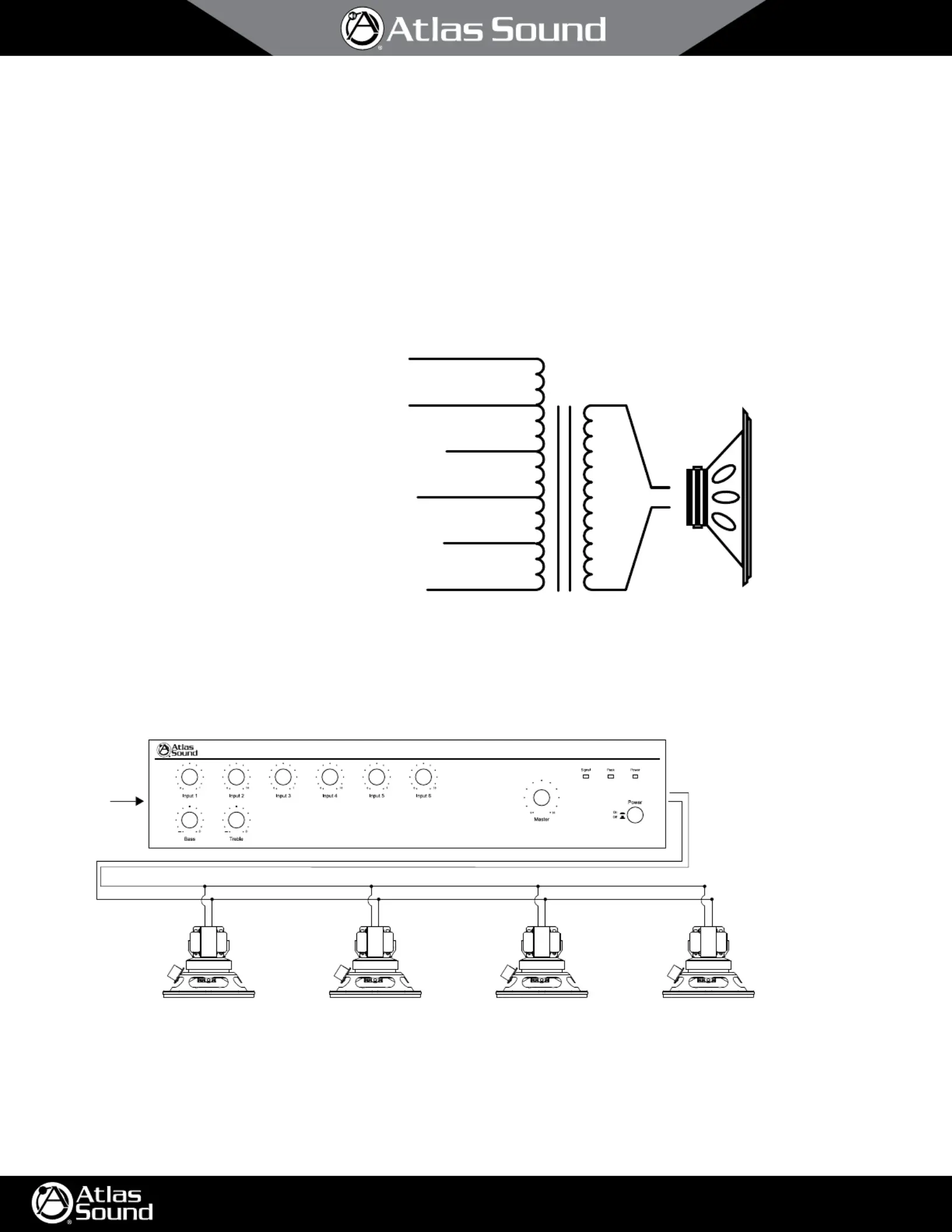

Speaker Transformer Wiring Diagram
Transformer
BLACK
8Ω
COM
+
-
YELLOW
ORANGE
RED
BLUE
.5Watts
1Watts
2Watts
4Watts
8Watts
WHITE
Installation must comply with all Building Codes and NFPA guidelines. Installation must adhere to
N.E.C. and NFPA 70/72 wiring directives and comply with all National and Local Building Codes.
Speaker must be installed with UL Listed Baffle
Model 51-4 and UL Listed Enclosure Model 96-4 or 96-4X.
+
+
+
+
+
+
Input
FC104T
Full Range
8 Watts @ 70.7V
FC104T
Full Range
8 Watts @ 70.7V
FC104T
Full Range
8 Watts @ 70.7V
FC104T
Full Range
8 Watts @ 70.7V
Typical Parallel Hookup of Full
Range 70.7V/100V Speakers
Amplifier
Typical 120 Watt 70.7V Output
Tap Wattage Total: 16 Watts
Transformer Wiring Diagrams
Model # Frequency Response Sensitivity
FC104T150Hz-17kHz 94dB (1W/1M)
