FC104T72

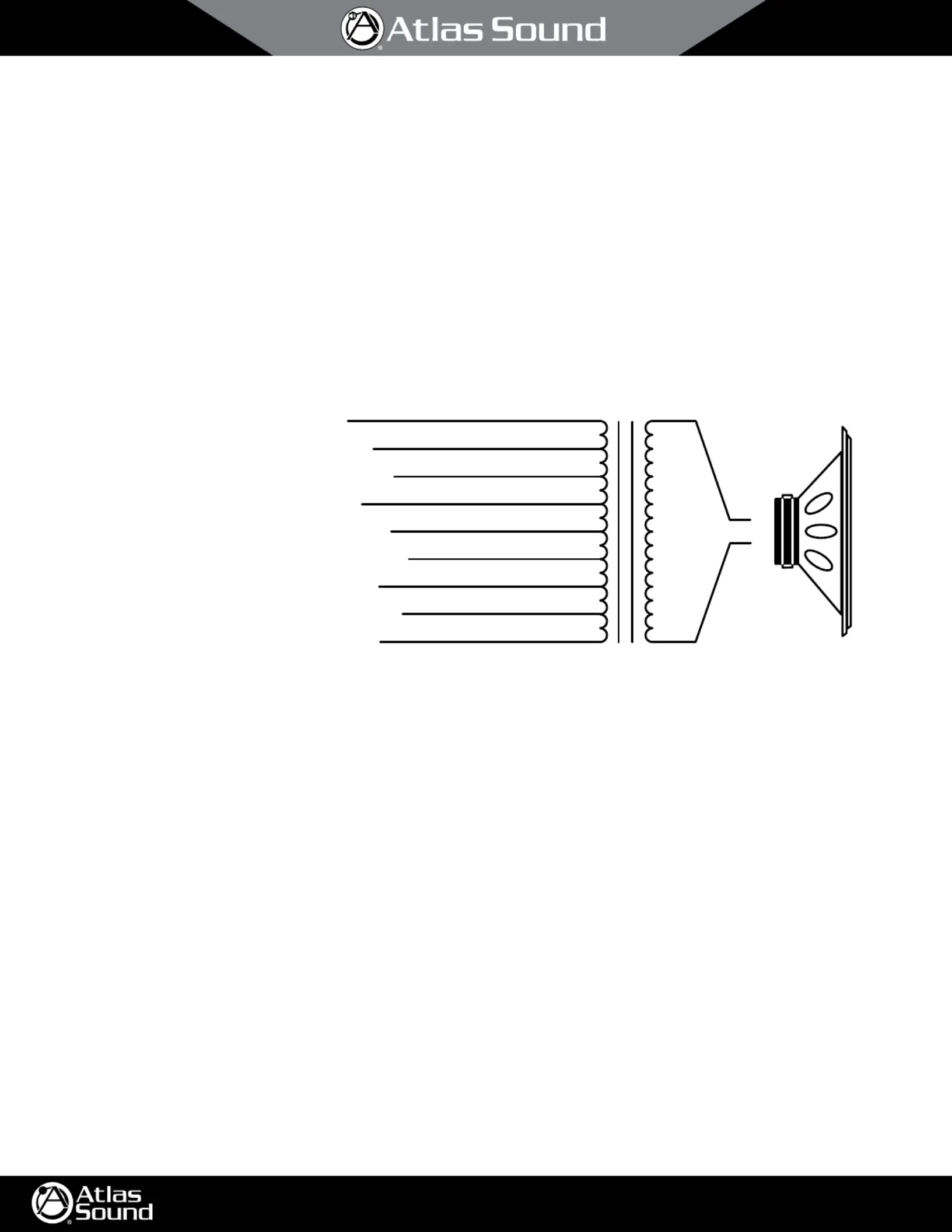

Speaker Transformer Wiring Diagram
70.7V/25V
COM
ORANGE
4W@25V
2W@25V
.5W@25V
YELLOW
1W@70.7V
.5W@70.7V
.25W@70.7V
.25W@25V
BLACK
VIOLET
WHITE W/
GREEN STRIPE
1W@25V
BROWN
4W@70.7V
BLUE
2W@70.7V
WHITE
RED
8OHM
+
-
Installation must comply with all Building Codes and NFPA guidelines. Installation must adhere to
N.E.C. and NFPA 70/72 wiring directives and comply with all National and Local Building Codes.
To conform with applicable UL standards speaker must be installed with
UL Listed Baffles: 51-4 and with UL Listed Enclosures: 96-4, 96-4X
Model # Frequency Response Sensitivity
FC104T72150Hz-17kHz 94dB (1W/1M)
