OWNER’S MANUAL ~ CONVERTER

DAC100 Sig

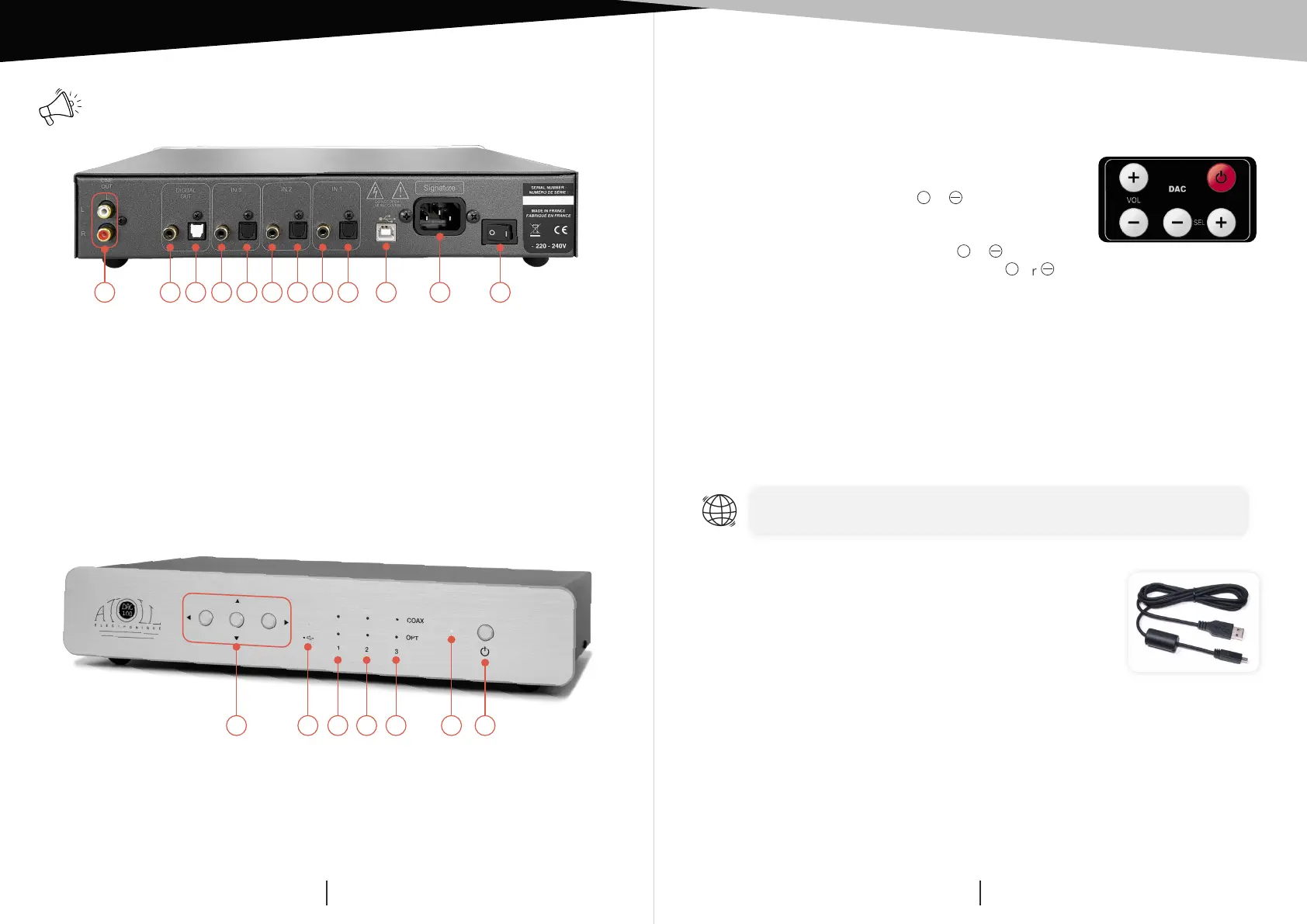

ATOLL ELECTRONIQUEPage 5Page 4

1) Analog output (Left & Right).

2) Digital output (coaxial).

3) Digital output (optical).

4) Input #3 (coaxial).

5) Input #3 (optical).

6) Input #2 (coaxial).

7) Input #2 (optical).

8) Input #1 (coaxial).

9) Input #1 (optical).

10) USB Input (B type).

11) General power plug.

12) ON/OFF Switch.

CONNECTINGREMOTE CONTROL

DETAILS OF FUNCTIONS

Reminder: do not make any connections when your device is turned on.

13) Inputs selection keys.

14) USB input indicator signal.

15) Input 1 indicator signal (coax. or optical).

16) Input 2 indicator signal (coax. or optical).

Note: Digital outputs (optical & coaxial) receives reformatting datas in both directions: optical

to coaxial and/or coaxial to optical. Similarly, inputs data on USB input are redirected to the

digital outputs.

The converter DAC100 Signature can be used with the ATOLL remote control that will

let you:

– Put ON/OFF the converter.

– Select the sources: with keys SEL

+

&, you can select

the different inputs.

– Adjust the volume level: with keys VOL

+

&, you can

attenuate the level to 0 : while pressing the keys

+

or , led

indicator (17) twinkles.

Putting the converter in Stand-by mode will not change the

sound level. This level will be reinitialized at its highest level

if the converter is switsh off (11).

Your appliance is equipped with a High-Res. asynchronous USB Input (B type). It will

be possible to use it only when you’ll have downloaded the appropriate driver on your

computer. This driver can be freely downloaded on our website at the page:

You will find attached an explanatory guide on how to install

this driver.

This driver is not required for Macintosh computers.

In order to avoid problems with high quality format transfers

(24 bits / 192 kHz or DSD), it is recommended to use a USB

connection cable with ferrite.

USB INPUT

ACCEPTED FORMATS

• Accepted format on optical and coaxial Inputs: 16-24 bits (32 kHz, 44,1 kHz,

48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and 192 kHz).

• Accepted format on USB Input:

– DSD: DSD64 and DSD128.

– PCM: 16-24 bits (44,1 kHz, 48 kHz, 88,2 kHz, 96 kHz, 176,4 kHz and

192 kHz).

13141516171819

17) Input 3 indicator signal (coax.

or optical).

18) Stand-by indicator signal.

19)ON/OFF key.

123468579121110
