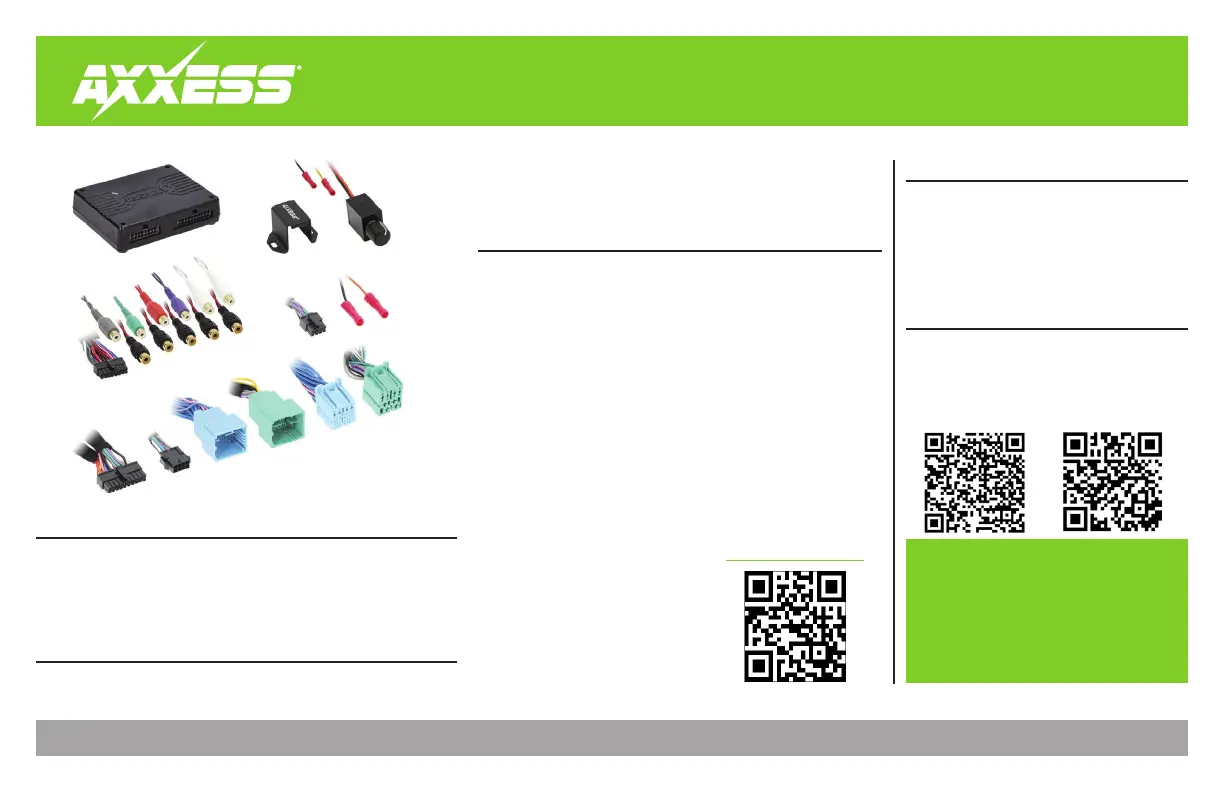

AXDSPX-CH8
INSTALLATION INSTRUCTIONS
AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 7/24/24 INSTAXDSPX-CH8
INTERFACE FEATURES
TOOLS & INSTALLATION ACCESSORIES REQUIRED
• Crimping tool and connectors, or solder gun,
solder, and heat shrink • Tape • Wire cutter
• Zip-ties • Multimeter
TABLE OF CONTENTS
Installation & Installation Options
........................2
Connections ........................................................3-4
Rebooting the U-Connect Radio ..........................5
Mobile App: Quick Setup ...................................6-7
Specifications .........................................................8
APPLICATIONS
Visit AxxessInterfaces.com for current application list
INTERFACE COMPONENTS
• AXDSPX-CH8 interface
• AXDSPX-CH8 interface harness
• AXDSPX-CH8 vehicle T-harness • Bass knob
Chrysler DSP Interface (with Pre-Wired Harness)
2020-Up
www.MetraOnline.com
MetraOnline.com may be used to assist
with dash assembly instructions. Simply
enter your Year, Make, Model vehicle
into the vehicle fit guide and look for the
Dash Kit Installation Instructions.
• Includes a DSP (Digital Signal Processor)
• Selectable 31 Band Graphic EQ or 5 Band Parametric EQ
• Designed for both amplified and non-amplified vehicles
• 10 individually assignable outputs
• Independent equalization on each of the 10 outputs
• Independent high pass, low pass, and band pass filters
• Each channel can be delayed independently up to 10ms
• Clipping detection and limiting circuits
(Features continued on next page)
Google Play Store
Apple App Store
iOS 12.1 or higher
ATTENTION: With the key out of the ignition,
disconnect the negative battery terminal before
installing this product. Ensure that all installation
connections, especially the air bag indicator lights, are
plugged in before reconnecting the battery or cycling
the ignition to test this product.
NOTE: Refer also to the instructions included with the
aftermarket accessory before installing this device.
2
Adding a subwoofer to a factory system:
This feature offers the ability to add a subwoofer to a factory system, whether amplified or non-
amplified (Refer to Page 3)
Adding a full-range amp and subwoofer to a factory system:
This feature offers the ability to add a full-range amp and sub to a factory system, whether
amplified*or non-amplified. (Refer to Page 4)
* For amplified models the amp must be bypassed/unplugged, and With OE Amplifier chosen in
the Configuration tab under Vehicle Type. Use either Axxess AXABH-CH2 or AXABH-CH4 (sold
separately) to bypass the amp for best results.
Note: The interface provides a 12-volt 1-amp output to turn on aftermarket amp(s). If installing
multiple amps, an SPDT automotive relay will be required if the amp turn-on current of all amps
combined exceeds 1-amp. Use Metra part number E-123 (sold separately) for best results.
1. Disassemble the dash, unplug all connectors, and then remove the factory radio.*
2. Install the AXDSPX-CH8 vehicle T-harness to the vehicle and make all necessary
connections, but leave the amp turn-on wire disconnected.
3. Plug the AXDSPX-CH8 vehicle T-harness to the AXDSPX-CH8 interface.
4. Plug the AXDSPX-CH8 interface harness to the AXDSPX-CH8 interface.
5.
Download and install the AX-DSP-XL app from the Google Play Store or Apple
App Store.
6. Open the app then select the Bluetooth
®
Connection tab. Follow the instructions to
pair the mobile device to the interface. Refer to Page 6 for more information.
7. Scroll to the Configuration tab then select the vehicle type. Press the Lock Down**
button to save the configuration. Refer to Page 7 for more information.
8. Connect the amp turn-on wire.
9. Adjust the settings in the app as desired. Press the Lock Down ‡ button to save any
new configurations.
* For dash disassembly instructions, refer to metraonline.com. Enter the year, make,
and model of the vehicle in the Vehicle Fit Guide and find instructions under Metra
Radio Install kits.
** Anytime the interface is locked down the key must be cycled off then back on.
INSTALLATION OPTIONS INSTALLATION
• Easy behind the radio installation with pre-wired harness
• Bass knob included for level control of subwoofer amp
• Settings adjusted via Bluetooth
®
in a smart device application (tablet or mobile phone), compatible
with both Android and Apple devices
• Read, write, and store configurations for future recall
• Password protect feature available in the mobile app
• USB Micro B updatable
FEATURES CO NT.
