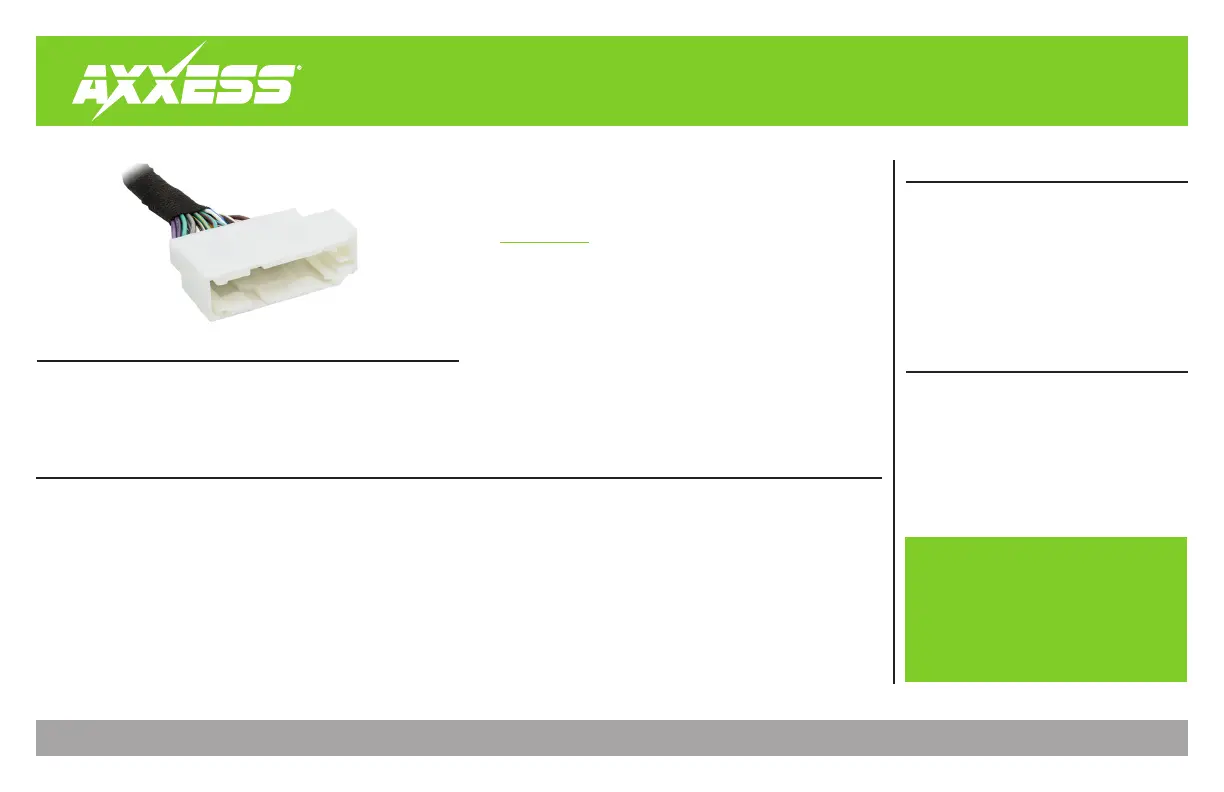

AXABH-LX1

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2025 METRA ELECTRONICS CORPORATION REV. 7/3/25 INSTAXABH-LX1

TOOLS REQUIRED

• Crimping tool and connectors, or solder gun,

solder, and heat shrink

• Tape • Wire cutter • Zip ties

TABLE OF CONTENTS

Amplifier locations ................................................2

Connections

Lexus ....................................................................3

Subaru ..............................................................3-4

Toyota ...............................................................4-7

Amplifier Bypass Harness

Fits Select Lexus/Subaru/Toyota

2001-2023

Refer to the following pages for the vehicle specific instructions for

wiring connections. Wiring connections vary per vehicle.

If uncertain whether the vehicle contains a specific speaker or not,

test the wires with a tone generator, or check to see if the factory

wires are populated on the vehicle side. Alternatively, the wires can

be tested for impedance with a multimeter.

APPLICATIONS

Visit AxxessInterfaces.com for more detailed information about the product and up-to-date

vehicle specific applications

ATTENTION: With the key out of the ignition, disconnect

the negative battery terminal before installing this

product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the battery or cycling the ignition

to test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

FEATURES

• Vehicle-specific harness to bypass the factory amplifier

• Saves the installer unnecessary labor and wire

• 20 gauge wires

• Wire Length: 12”

Lexus

ES-Series ......................2007-2012

ES-Series

(with Multi Disc) ........2002-2006

GS-Series .....................2001-2005

IS-Series .......................2013-2022

RX-Series ....................2004-2008

SC-Series ......................2002-2010

Subaru

Ascent ..........................2019-2022

Crosstrek ......................2016-2022

Forester........................2016-2022

Impreza .......................2015-2022

Legacy ..........................2015-2022

Outback........................2015-2022

WRX .............................2016-2022

Toyota

Avalon (Amplified) ......2015-2019

Avalon (w/NAV) ...........2011-2014

Camry...........................2018-2023

Camry (Amplified) .......2014-2017

Highlander

(Excluding 12” screen) ...

2020-2023

Highlander (Amplified) ...2014-2019

Mirai ..............................2016-2019

Toyota (cont.)

Prius (Amplified) .........2016-2019

Prius (Plug-In) .............2012-2015

Prius V (Amplified) ......2013-2018

RAV4 ............................2019-2023

RAV4 (Amplified) .........2015-2018
