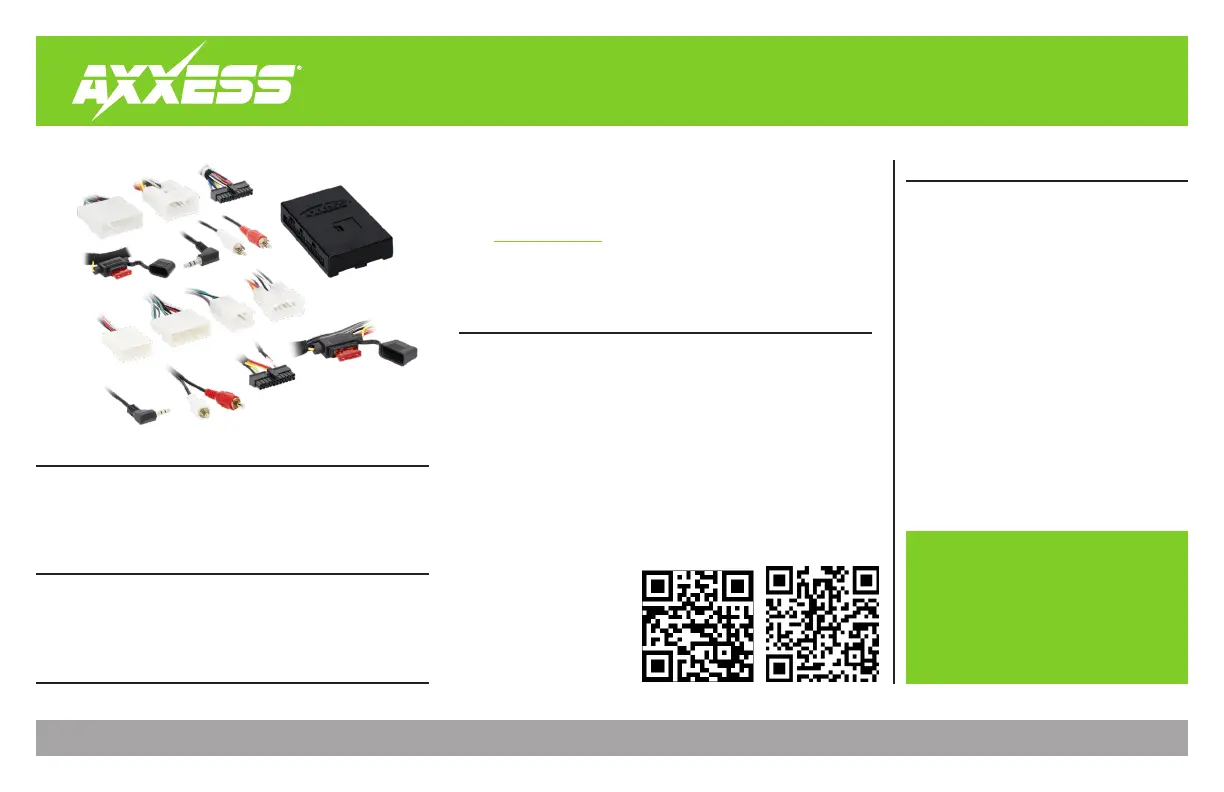

AXDIS-TY2

INSTALLATION INSTRUCTIONS

AxxessInterfaces.com © COPYRIGHT 2024 METRA ELECTRONICS CORPORATION REV. 11/22/24 INSTAXDIS-TY2

ATTENTION: With the key out of the ignition,

disconnect

the negative battery terminal before installing

this product. Ensure that all installation connections,

especially the air bag indicator lights, are plugged in

before reconnecting the

battery or cycling the ignition to

test this product.

NOTE: Refer also to the instructions included with the

aftermarket accessory before installing this device.

INTERFACE FEATURES

INTERFACE COMPONENTS

TOOLS REQUIRED

• Wire cutter • Crimp tool • Solder gun • Tape

• Connectors (example: butt-connectors, bell caps, etc.)

• Small flat-blade screwdriver

TABLE OF CONTENTS

Applications ...........................................................2

Connections ........................................................3-5

Non-Amplified Models: LD-TYNOAMP ...............3

Amplified Models: LD-BX-TY3 ............................4

3.5mm Jack SWC Retention ...............................5

Installing the AXDIS-TY2 .......................................5

Programming the AXDIS-TY2 ...............................6

Audio Level Adjustment .......................................6

Steering Wheel Control (SWC) Settings..........7-10

LED Feedback ......................................................7

Changing Radio Type..........................................8

Remapping the SWC Buttons ............................9

Dual Assignment Instructions ..........................10

Troubleshooting....................................................11

Fits Toyota Interface with SWC 2012-2019

• Designed for both amplified and non-amplified models

• Provides accessory power (12-volt 10-amp)

• Retains audio controls on the steering wheel

• Provides NAV outputs (parking brake, reverse)

• Retains the factory AUX-IN jack

• Micro-B USB updatable

• Retains balance on amplified models

(non-amplifed models will retain balance and fade)

• AXDIS-TY2 interface

• AXDIS-TY2 harnesses (LD-TYNOAMP, LD-BX-TY3 AND LD-2NAVAMP)

• Female 3.5mm connector with stripped leads

Visit AxxessInterfaces.com for more detailed information about the product and

up-to-date vehicle specific applications.

APPLICATIONS (See Page 2)

MetraOnline.com may be used

to assist with dash assembly

instructions. Simply enter your

Year, Make, Model vehicle into

the vehicle fit guide and look

for the Dash Kit Installation

Instructions.

Product Info

www.MetraOnline.com
