- BTL-27L x 2

- BTL-95 Bottompress toolset

- Grease

- PTFE (Carbon BB shell)

- Anti-seize (Ti BB shell)

RECOMMENDED TOOLS:

COMPATIBILITY:

BB86/92 (86.5/89.5/92 x Ø41mm) +

Ø24-22 mm spindle cranksets

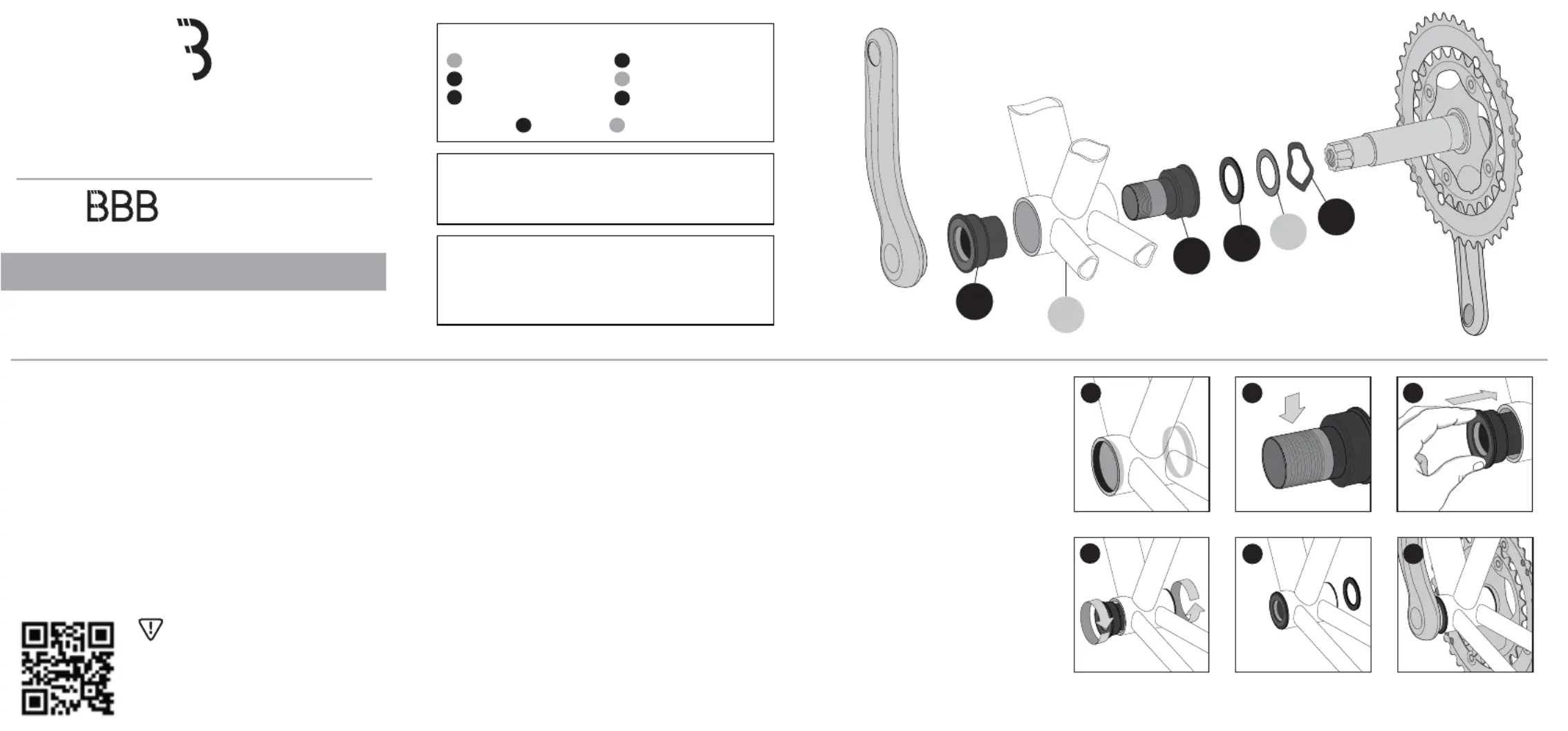

COMPONENTS:

3

2

1

Bottom bracket shell

Non-drive side cup (x1)

Drive side cup (x1)

5

6

4

2.5mm spacer

ShimSet spacers

Wave spring washer

IncludedNot Included

EF

D

BC

A

INSTALLATION:

A. After checking BB shell

①

carefully, apply a thin layer of grease, PTFE (for Carbon) or anti-seize compound

(for Ti) on the inside surface of BB shell

①

.

B. Apply a little bit of grease on the cup threads. DO NOT use PTFE, anti-seize or thread locking compound.

C. First insert the drive side cup

③

preferable with a press tool, then insert non-drive side cup

②

until the

threads engage while making sure you do not cross-threads the cups.

D. Use the BracketGrip cup tools to tighten until the lip of the cups are flush against the BB shell

①

(Max. 40Nm, for Carbon shells lower torque is recommended.).

E. Add the Wave spring washer

⑥

on the Drive-side. If your BB shell

①

is 89mm wide,

add the 2.5mm spacer

④

as well.

F. Install crankset following manufacturers specifications.

5

34

6

1

2

IMPORTANT:

- Before installing ensure the BB shell

①

is clean and free of

metal chips, dirt and excess paint.

- Inspect the BB shell

①

for width, inner diameter, ovalization or

anything that could cause bearing mis-alignment.

- Always use a calibrated torque wrench to tighten crank bolts.

- BBB Cycling cannot guarantee compatibility with you frame

and/or crank combination.

consult your manufacturer for compatibility.

- BBB Cycling cannot be held responsible for any damage

occured during assembly

.

- The wave washer should not be completely compressed

for proper use.

WARNING

Sold only by professional bicycle dealers.

For proper installation, ask your BBB dealer.

Not following the instructions in this manual

may cause damage to the product not covered

under warranty, damage to the bicycle, or

cause an accident resulting in injury or death.

FIND YOUR TRANSLATION

ON BBBCYCLING.COM

ENDEFRNLESPT MANUAL / HANDBUCH / MANUEL / HANDLEIDING / MANUAL / MANUAL /

ITHUPLCZ MANUALE / HASZNÁLATI UTASÍTÁS / PODRĘCZNIK / UŽIVATELSKÁ PŘÍRUČKA

/ MANUÁL / JP使用説明書/RUРУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ / SKNOHÅNDBOK

BBB CYCLING.COM

ROO SEVELTSTRAAT 46, 2321 BM

LEIDEN. THE NETHERLANDS

BOTTOMFIT

/BBO-29SR

BOTTOM BRACKET

BBB has no responsibility for misprints or changed technical content.
