Seite 1/5
Specications are subject to change.
© Copyright 2024, Bogen Communications LLC
740-00219A 240419

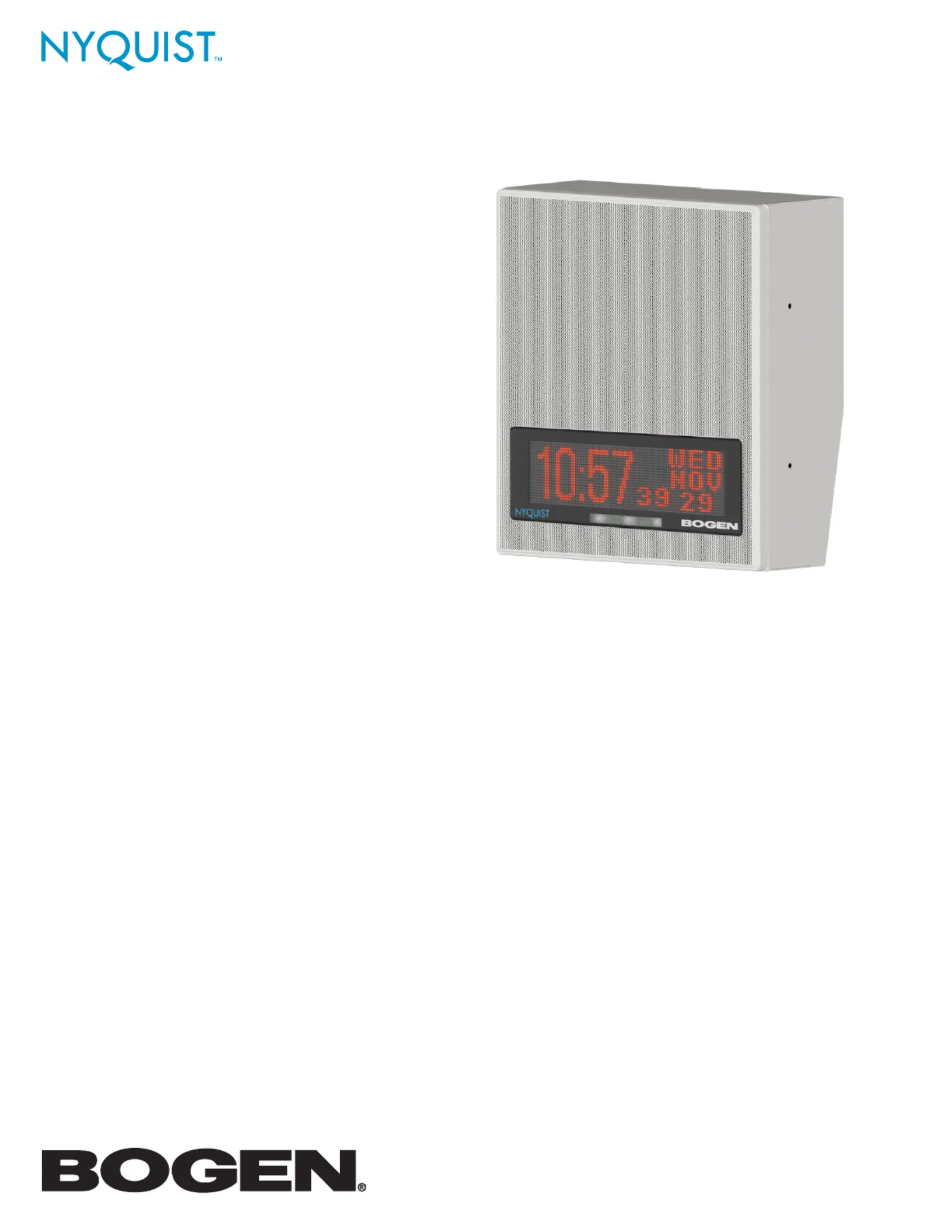

NQ-S1810WBC Nyquist VoIP
Wall Bae Combo Speaker with Integrated LED
Message Display and Flasher
Installation and Use Guide
2
NQ-S1810WBC
With the Nyquist Series VoIP Wall Bae Combo Speaker with LED Message Display and Flasher (WBC), there is
no need to manually set or adjust external ampliers, traditional intercom wiring, or transformer taps. Connect the
speaker via a Cat 5 or higher cable to a Power-over-Ethernet (PoE or PoE+) switch or injector and it’s ready to use.
The WBC features an integrated 10W power amplier; a CAN bus interface; a MEMS microphone for superior talk-
back audio; an integrated LED message display; an LED asher for visual announcement notications; and a Form
C SPDT-type 2A dry contact relay for controlling or overriding third-party devices like audio-visual sources.
The WBC also allows DHCP deployment for easy installation. You can let your Nyquist server automatically dis-
cover and congure your speaker, or you can manually congure it through the speaker’s web-based user interface
(web UI). The web UI also makes it easy to update rmware, set parameters for Digital Signal Processing (DSP), and
customize text on the integrated LED display. For more information about the web UI, refer to the VoIP Wall Bae
Combo Speaker with Integrated LED Message Display and Flasher Conguration Guide.
Speaker Layout
The layout of the speakers should be planned prior to installation.
Because wall bae speakers are designed to project forward, it is best to aim them all in the same direction, as
this provides for greater coverage and clarity. You can use the building’s roof pillars or other available supports for
mounting the wall baes.
In some cases, it may be necessary to mount the wall baes on opposing walls. In these cases, the speakers will
project sound in opposing directions.
Hallway
Wall bae speakers work well with rooms and hallways that are 20’ to 60’ wide.
Layout starts at one end of the hallway or room. The rst speaker should be
installed 10’ from the end of the hallway or room. The next speaker on that wall
should be installed 20’ from the rst speaker. Each additional speaker should be
installed 20’ apart from the previous one. The rst speaker on the opposing wall
should be installed 20’ from the end of the hallway or room, thereby staggering
the speakers. Each additional speaker should be installed 20’ apart from the pre-
vious one (see Figure 1).
Rooms
In most cases, an environment such as a classroom requires only a single wall bae speaker to service the entire
room. The nal placement of the speaker within the room can vary, but such common area locations as at the head
of the room or near the room entrance are typically chosen (see Figure 2).
Based on the speaker position that has been selected, you can choose between several mounting options, as de-
scribed below.
Figure 1: Hallway speaker layout.
START
SPEAKER
WALL
10'
20'
20' to 60'
HALLWAY
3
NQ-S1810WBC
Speaker Installation
1. The speaker is packaged with the bae attached to the
enclosure, a grille, and two ush-mount brackets. Remove
the four screws that attach the speaker bezel to the
enclosure, then remove the cardboard insert from inside the
enclosure, as shown in Figure 3.
2. Select a mounting option from Figures 4–7 and use the
appropriate hardware for gang-box mount or wall mount.
Bogen provides the screws and washers for mounting on
a standard electrical gang box, but when mounting directly
to a wall or other surface, you must supply the appropriate
hardware for the specic wall/surface construction type
(e.g., concrete cinder block, metal beams, etc.).
NOTE: The wall mounting of the NQ-S1810WBC should be conducted by trained professionals with sucient knowledge
and tools to t the wall-mount fasteners in a reliable way.
NOTE: Wall bae speakers should be installed at a height of 8 to 16 feet from the oor, depending upon need.
Figure 5: Flat wall mount (hardware not supplied;
tapping screws for concrete/brick shown)
Figure 6: Angled wall mount (hardware not supplied;
tapping screws for concrete/brick shown)
Figure 4: #6 screws and washers
for mounting to gang box.
3. When applicable, use the pluggable CAN bus connector
to attach one or more NQ-E7020-G2 Digital Call Switches
to the Nyquist VoIP Module 820-00187-00 via the
NQ-S1810WBC’s smart display connectors, as shown in
Figure8.
4. If the CAN bus is to be used, ensure the CAN_H and CAN_L
use Cat 5 10/100 twisted pair cable.
Figure 7: Flush mount (hardware supplied).
Figure 8: CAN bus connector with multiple digital call switches
Figure 3: Remove cardboard insert from enclosure.
