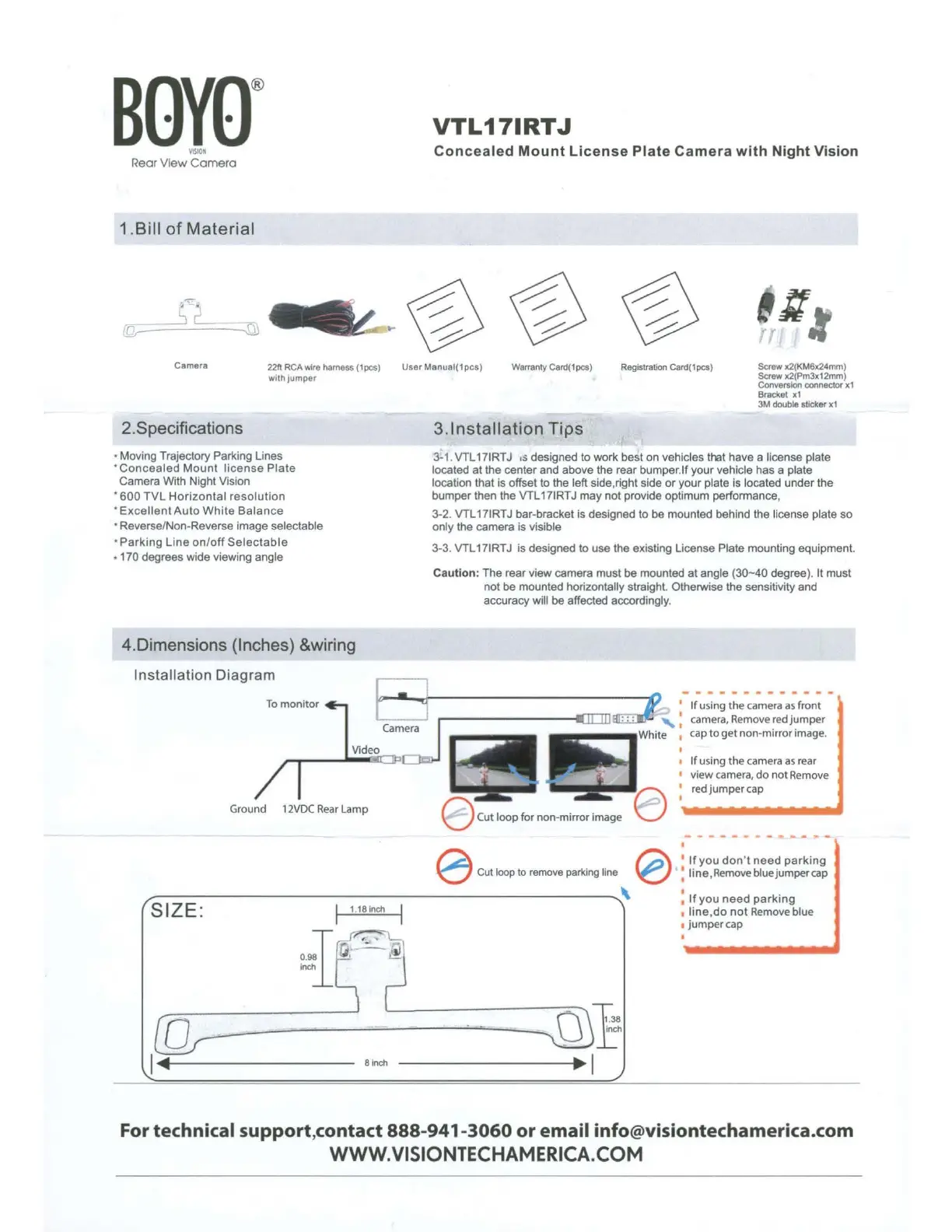

BOYO

®

-·

Rear

View

C

amera

VTL17IRTJ

Concealed

Mount

License

Plate

Camera

with Night Vision

1.Bill

of

Material

,--::-"

..

.

~

~

~

(Q,--

c'.......

~

:...--::::

:...--::::

Camera

2211

RCA

wire

harness (1pcs)

User

Manual

(1p

cs)

Worronty Cord(1 pcs) Registration Card(1pcs)

Screw

x2(KM6x24mm)

Screw x2(Pm3x

12mm

)

Conversion connector x 1

with

jumper

2.Specifications

• Moving Trajectory Parking Lines

•concealed

Mount

license

Plate

Camera With Night Vision

•

600

TVL

Horizontal

resolution

•

Excellent

Auto

White

Balance

• Reverse/Non-Reverse image selectable

•

Parking

Line

on

/

off

Selectable

• 170 degrees wide viewing angle

4.Dimensions {Inches) &wiring

Installa

tion Diagram

To

monitor

Video

Ground

12VDC

Rear

Lamp

Camera

Brocket

x1

3M

double slicitar

x1

3.

lnstallation

Tips

3-1. VTL

171RTJ

,s

designed to work best

on

vehicles that have a license plate

located

at

the center and above the rear bumper.If your vehicle has a plate

location that

is

offset

lo

the

left side,right side

or

your plate

is

located under the

bumper then the

VTL

171RT

J may

not

provide optimum performance,

3-2. VTL 171RT J bar-bracket is designed

to

be mounted behind the license plate

so

only the camera

is

visible

3-3. VTL171RTJ is designed

to

use the existing License Plate mounting equipment.

Ca

ut

i

on

: The rear view camera must

be

mounted

at

angle

(30-40

degree).

It

must

not be mounted horizontally straight. Otherwise the sensitivity and

accuracy will be affected accordingly.

~

,-

lf

-u

;;

n~ t~e-

ca

"".n;

r; a; fr:n~ -

r------

---

---lUJOD

rJfJIIJf!.

, ,

camera,

Remove

red jumper

0 Cut loop for non-mirror image

White

I

cap

to

get non-mirror image.

If

using the camera

as

rear

view camera,

do

not

Remove

0

red jumper cap

0 Cut loop

to

remove parlling line

(e)

'

If

you

don

't

need

parking

: line,Removebluejumpercap

-----

-

-------------------...

\

:

If

you

need

parking

SIZE:

I ,.

,s,ncn

8 inch

,

line.do

not

Remove

blue

, jumper cap

For technical support,contact

888-941-3060

or

email [email protected]

WWW.

VISIONTECHAMERICA.COM
