I N S T A L L A T I O N I N S T R U C T I O N S

(with TS118SU)

Structural Column Adapter

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

FCASCA

FCASCA Installation Instructions

DISCLAIMER

Legrand AV and its affiliated corporations and subsidiaries |

(collectively “Legrand AV”), intend to make this manual |

accurate and complete. However, Legrand AV makes no claim |

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand AV |

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand AV |

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure al accessories are

properly assembled and installed using the instructions

provided.

WARNING: Failure to provide adequate structural strength

for this accessories can result in serious personal injury or

damage to equipment! It is the installer’s responsibility to

make sure the structure to which this accessory is attached

can support five times the combined weight of all equipment.

Reinforce the structure as required before installing the

accessory.

WARNING: Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of

all components attached to accessory does not exceed the

weight limit of the mount to which it is attached.

WARNING: Use this accessory only for its intended use as

described in these instructions. Do not use attachments not

recommended by the manufacturer.

WARNING: Never operate this accessory if it is damaged.

Return the accessory to a service center for examination and

repair.

WARNING: Do not use this accessory outdoors.

IMPORTANT ! :

The FCASCA

accessory

is designed to be

mounted to concrete columns between 12-24" in diameter.

--SAVE THESE INSTRUCTIONS--

Installation Instructions FCASCA

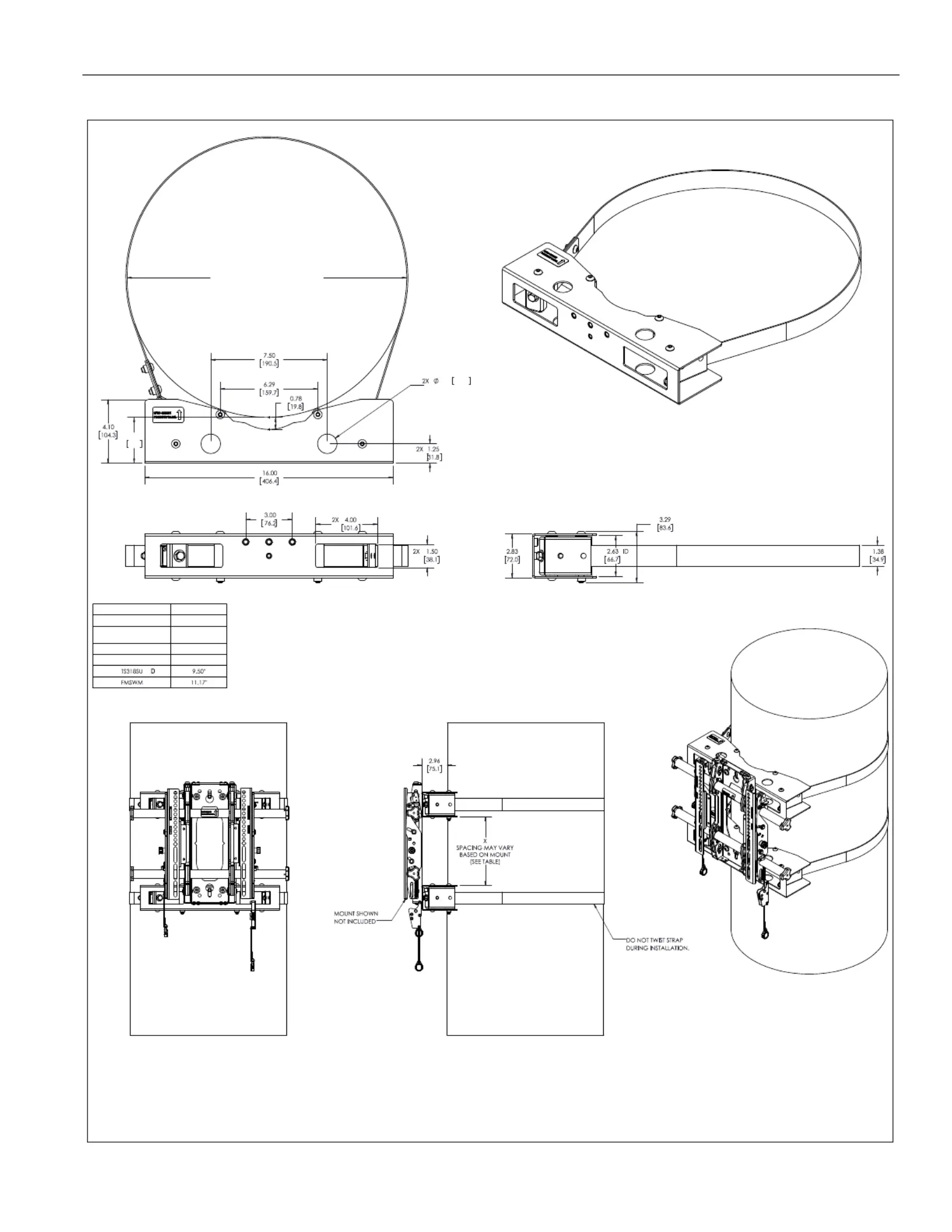

DIMENSIONS

STRAP CUT TO LENGTH

ACCOMODATES COLUMN DIAMETERS:

12.00" - 24.00"

2.96

75.1

1.25 31.75

THRU ALL

MOUNT STYLE LENGTH (X)

MTMS1U 7.92"

MTM1U, MSM1U, MTMP1U 13.17"

TS118SU 1.99"

TS218SU 5.17"

Produktspezifikationen

Marke:	Chief
Kategorie:	Wandstütze
Modell:	FCASCA
Produkttyp:	Säulenadapter
Produktfarbe:	Schwarz
Befestigungstyp:	Wand
Höchstgewichtskapazität:	90.7 kg
Menge pro Packung:	1 Stück(e)
