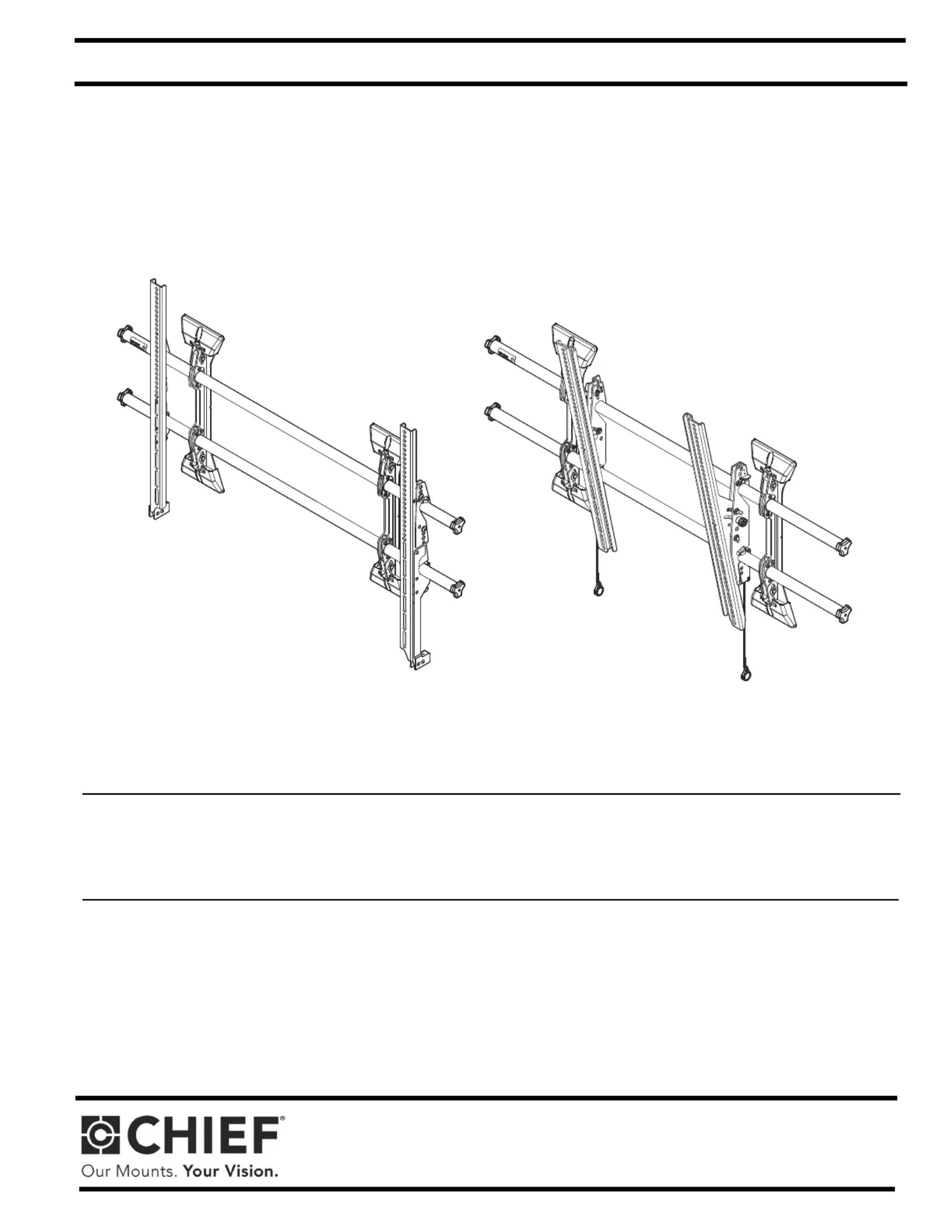

I N S T A L L A T I O N I N S T R U C T I O N S

XTM1U

XSM1U

FUSION EXTRA LARGE HEIGHT ADJUST

FLAT PANEL MOUNTS

XSM1U/XTM1U

XSM1U/XTM1U Installation Instructions

DISCLAIMER

Milestone AV Technologies, and its affiliated corporations and

subsidiaries (collectively "Milestone"), intend to make this

manual accurate and complete. However, Milestone makes no

claim that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Milestone

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Milestone assumes

no responsibility for accuracy, completeness or sufficiency of

the information contained in this document.

Chief® is a registered trademark of Milestone AV Technologies.

DEFINITIONS

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to read, thoroughly understand, and

follow all instructions can result in serious personal injury,

damage to equipment, or voiding of factory warranty! It is the

installer’s responsibility to make sure all parts are properly

assembled and installed using the instructions provided.

WARNING: Failure to provide adequate structural strength

for this mounting system can result in serious personal injury

or damage to equipment! It is the installer’s responsibility to

make sure the structure to which this mounting system is

attached can support five times the combined weight of all

equipment. Reinforce the structure as required before

installing the mounting system.

WARNING:

Exceeding the weight capacity can result in

serious personal injury or damage to equipment! It is the

installer’s responsibility to make sure the combined weight of all

components located on the XSM1U/XTM1U does not exceed

250 lbs (113.4 kg).

WARNING: Use this mounting system only for its intended

use as described in these instructions. Do not use

attachments not recommended by the manufacturer.

WARNING: Never operate this mounting system if it is

damaged. Return the mounting system to a service center for

examination and repair.

WARNING: Do not use this product outdoors.

IMPORTANT ! :

The XSM1U/XTM1U mounts are designed to

be mounted to:

• a bare concrete wall with a minimum thickness of 8"

(203mm);

• a bare 8" x 8" x 16" (203mm x 203mm x 406mm)

concrete block wall; or

• wood studs spaced 24" or 32" (610mm or 813mm) on

center with a maximum drywall covering of 5/8".

NOTE: The XSM1U/XTM1U extra large height adjust mounts

may be used with the UL Listed FCAV1U Fusion pull-

out accessory.

--SAVE THESE INSTRUCTIONS--

Installation Instructions XSM1U/XTM1U

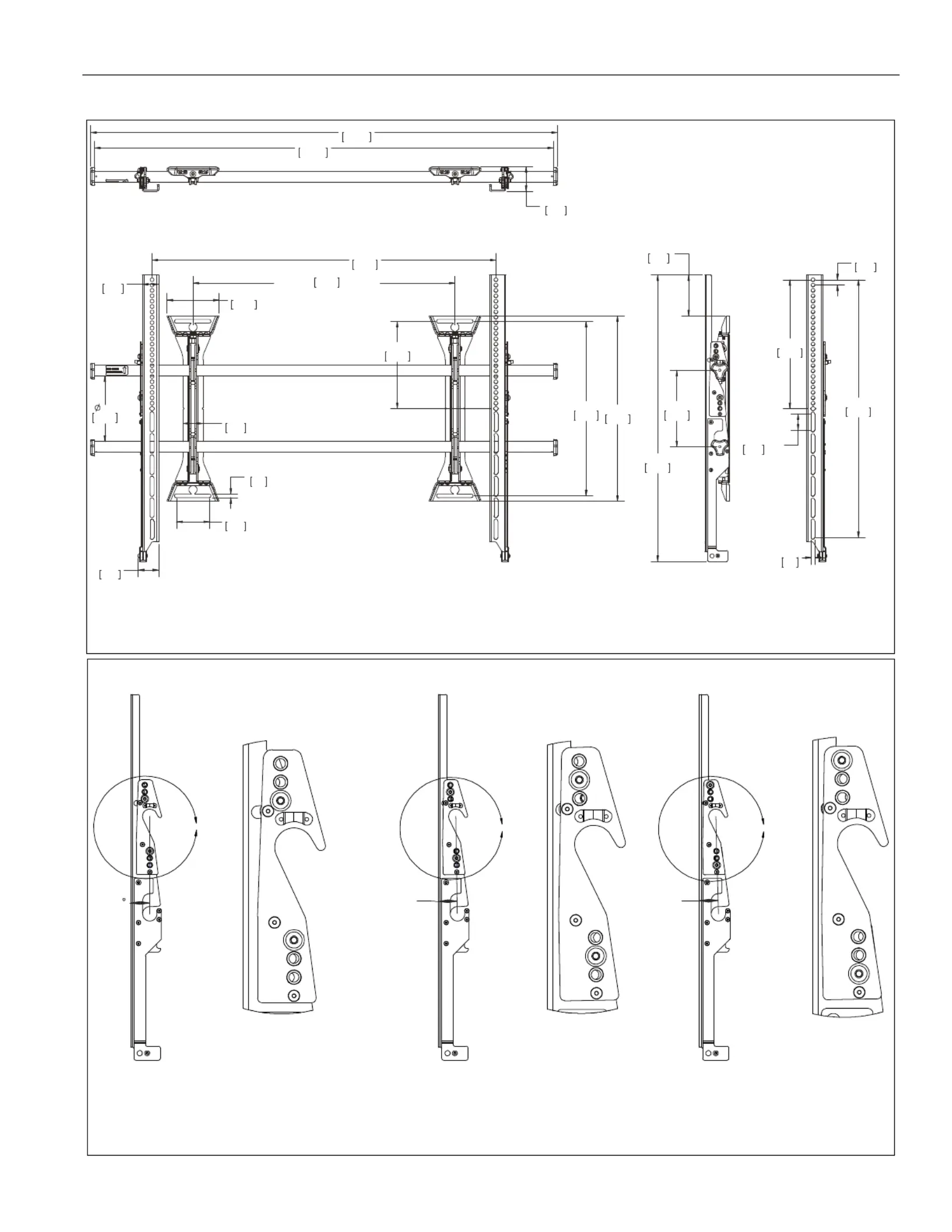

DIMENSIONS

2°

1°

DETAIL A

SCALE 1 : 1.5

BACKWARDS ANGLE COMPENSATION SETTINGS

DETAIL D

SCALE 1 : 1.5

DETAIL B

SCALE 1 : 1.5

XSM1U

1066.8

42.00

1085.9

42.75

2.25

57.2

666.8

26.25

3.75

95.3

7.00

177.8

1. MAXIMUM MOUNTING PATTERN IS 38.7" (982 mm) WITHOUT REVERSING UPRIGHTS

2. MAXIMUM MOUNTING PATTERN IS 42.1" (1070 mm) WITH REVERSING UPRIGHTS

3. FOR RECESSED APPLICATIONS, MINIMUM VERTICAL LIFT FOR HOOK

ENGAGEMENT IS .75" (19 mm)

RAILS CAN BE SLID LEFT OR RIGHT FOR OFFSET

3.00

8.6

37.4

31.50

609.6

MINIMUM UPRIGHT SPACING

6.00

1.47

24.00

152.4

17.00

431.8

16.00

406.4

8.00

203.2

4.75

120.7

76.2

1.82

800.0

46.2

0.34

1.83

46.6

TYP.

1.48

37.5

8.7

0.34

23.62

600.0

12.5

0.49

TYP.

11.81

300.0

DIMENSIONS: [INCHES]

MILLIMETERS

XSM1U
