Seite 1/20

I N S T A L L A T I O N I N S T R U C T I O N S

Instrucciones de instalación

Installationsanleitung

Instruções de Instalação

Istruzioni di installazione

Installatie-instructies

Instructions d´installation

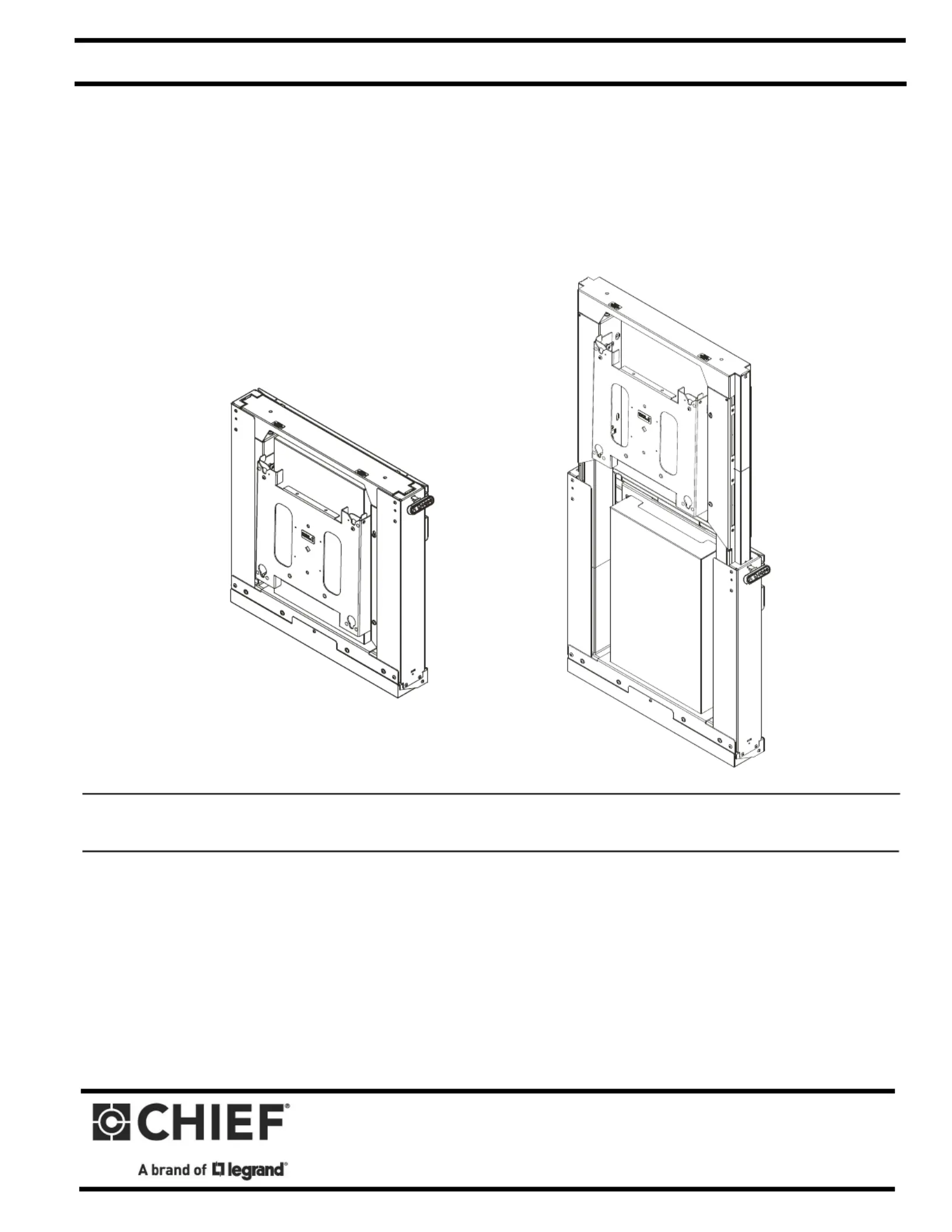

(Lowest position)

(Highest position)

Electric Height Adjustable Wall Mount

Spanish Product Description

German Product Description

Portuguese Product Description

Italian Product Description

Dutch Product Description

French Product Description

XSD1U

XSD1U Installation Instructions

DISCLAIMER

Legrand AV and its affiliated corporations and subsidiaries |

(collectively “Legrand AV”), intend to make this manual |

accurate and complete. However, Legrand AV makes no claim |

that the information contained herein covers all details,

conditions or variations, nor does it provide for every possible

contingency in connection with the installation or use of this

product. The information contained in this document is subject

to change without notice or obligation of any kind. Legrand AV |

makes no representation of warranty, expressed or implied,

regarding the information contained herein. Legrand AV |

assumes no responsibility for accuracy, completeness or

sufficiency of the information contained in this document.

Chief® is a registered trademark of Legrand AV Inc.

DEFINITIONS

MOUNTING SYSTEM: A MOUNTING SYSTEM is the

primary Chief product to which an accessory and/or component

is attached.

ACCESSORY: AN ACCESSORY is the secondary Chief

product which is attached to a primary Chief product, and may

have a component attached or setting on it.

COMPONENT: A COMPONENT is an audiovisual item

designed to be attached or resting on an accessory or mounting

system such as a video camera, CPU, screen, display,

projector, etc.

WARNING: A WARNING alerts you to the possibility of

serious injury or death if you do not follow the instructions.

CAUTION: A CAUTION alerts you to the possibility of

damage or destruction of equipment if you do not follow the

corresponding instructions.

IMPORTANT SAFETY INSTRUCTIONS

FAILURE TO READ AND FOLLOW THE FOLLOWING

INSTRUCTIONS CAN RESULT IN SERIOUS PERSONAL

INJURY, DAMAGE TO EQUIPMENT OR VOIDING OF

FACTORY WARRANTY. It is the installer’s responsibility to

make sure all components are properly assembled and

installed using the instructions provided.

When using an electrical mounting system, basic precautions

should always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS

PRODUCT!!!!

TO REDUCE THE RISK OF DANGER:

ELECTRIC SHOCK:

1. Always turn off power at source before cleaning.

WARNING: TO REDUCE THE RISK OF

BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO

PERSONS:

1. Unplug from outlet before putting on or taking off parts.

2. Close supervision is necessary when this furnishing is used

by, or near children, invalids, or disabled persons.

3. Use this furnishing only for its intended use as described in

these instructions. Do not use attachments not

recommended by the manufacturer.

4. Never operate this mounting system if it has a damaged

cord or plug, if it is not working properly, if it has been

dropped or damaged, or dropped into water. Return the

mounting system to a service center for examination and

repair.

5. Keep the cord away from heated surfaces.

6. Never operate the furnishing with the air openings blocked.

Keep the air openings free of lint, hair, and the like.

7. Never drop or insert any object into any opening.

8. Do not use outdoors.

9. Do not operate where aerosol (spray) products are being

used or where oxygen is being administered.

10. To disconnect, turn all controls to the off position, then

remove plug from outlet.

WARNING: Failure to provide adequate

structural strength for this mounting system can result in serious

personal injury or damage to equipment! It is the installer’s

responsibility to make sure the structure to which this mounting

system is attached can support five times the combined weight

of all equipment. Reinforce the structure as required before

installing the mounting system. For wood stud installation, the

wall to which the mounting system / accessory is being

attached may have a maximum drywall thickness of 5/8”

(1.6cm). Do not install drywall anchors into the seam between

drywall pieces.

Exceeding the weight capacity WARNING:

can result in serious personal injury or damage to equipment! It

is the installer’s responsibility to make sure the weight of all

components attached to the XSD1U head assembly up to (and

including) the display does not exceed 310 lbs (140.6 kg). If

mounting to a 2" x 4"-25ga minimum steel stud wall the weight

limit is reduced to only 290 lbs (131.5 kg).

Use this mounting system only WARNING:

for its intended use as described in these instructions. Do not

use attachments not recommended by the manufacturer.

WARNING: Never operate this mounting

system if it is damaged. Return the mounting system to a

service center for examination and repair.

IMPORTANT ! : Any display mounted to the XSD1U

should have a minimum display height of 29 3/8" in order

to avoid possible pinch points when the height is being

adjusted.

NOTE: The XSD1U mount has no user serviceable parts.

NOTE: The XSD1U mount can support screen sizes up to a

maximum of 100" wide.

Installation Instructions XSD1U

The XSD1U can be to be mounted to:

• a bare concrete wall with a minimum thickness of

8" (203mm):

• a bare 8" x 8" x 16" (203mm x 203mm x 406mm)

concrete block wall;

• wood studs spaced 16" or 24" on center with a

maximum drywall covering of 5/8”; or

• a 2" x 4"-25ga minimum steel stud wall.

• a 1/2" minimum thickness plywood-backed, steel stud

wall covered with drywall having a maximum thickness

of 5/8".

NOTE: To reduce the risk of electric shock, this furnishing has

a polarized plug (one blade is wider than the other).

This plug will fit in a polarized outlet only one way. If the

plug does not fit fully in the outlet, reverse the plug. If it

still does not fit, contact a qualified electrician to install

the proper outlet. Do not change the plug in any way.

NOTE: This product is a double-insulated, cord-connected

product and must be serviced accordingly. In a double-

insulated product, two systems of insulation are

provided instead of grounding. No grounding means for

grounding to be added to the product Servicing a

double-insulated product requires extreme care and

knowledge of the system, and is to be done only by

qualified service personnel. Replacement parts for a

double-insulated product must be identical to the parts

they replace. A double-insulated product is marked

with the symbol (square within a square)

NOTE: This equipment has been tested and found to comply

with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed to

provide reasonable protection against harmful

interference in a residential installation. This equipment

generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with

the instructions, may cause harmful interference to

radio communications. However, there is no guarantee

that interference will not occur in a particular

installation. If this equipment does cause harmful

interference to radio or television reception, which can

be determined by turning the equipment off and on, the

user is encouraged to try to correct the interference by

one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment

and receiver.

• Connect the equipment into an outlet on a circuit

different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV

technician for help.

CAUTION: Changes or modifications to this

unit not expressly approved by the manufacturer can void the

units FCC compliance rating and make the unit illegal to

operate.

Responsible Party:

Legrand AV Division Headquarters

6436 City West Parkway

Eden Prairie, MN 55344

866-977-3901

av.support@legrand.com

--SAVE THESE INSTRUCTIONS--

Electrical Specifications

Input voltage, frequency

100-240 V~, 50-60 Hz, 450W

Duty Cycle

Intermittent: 10%; max 2

minutes on/18 minutes off

Produktspezifikationen

Marke:	Chief
Kategorie:	Wandstütze
Modell:	XSD1U
Produktfarbe:	Schwarz
Höhenverstellung:	Ja
Befestigungstyp:	Wand
Höchstgewichtskapazität:	140.6 kg
Warentarifnummer (HS):	85299097
Menge pro Packung:	1 Stück(e)
Panel-Montage-Schnittstelle:	200 x 200,860 x 510 mm
Höhenanpassungsrate:	0 - 660 mm
Maximale Bildschirmgröße:	80 "
Anzahl der Display unterstützt:	1
Minimum Bildschirmgröße:	50 "
Minimale VESA-Halterung:	200 x 200 mm
Maximale VESA-Halterung:	860 x 510 mm
Höhenanpassungsart:	Elektro
