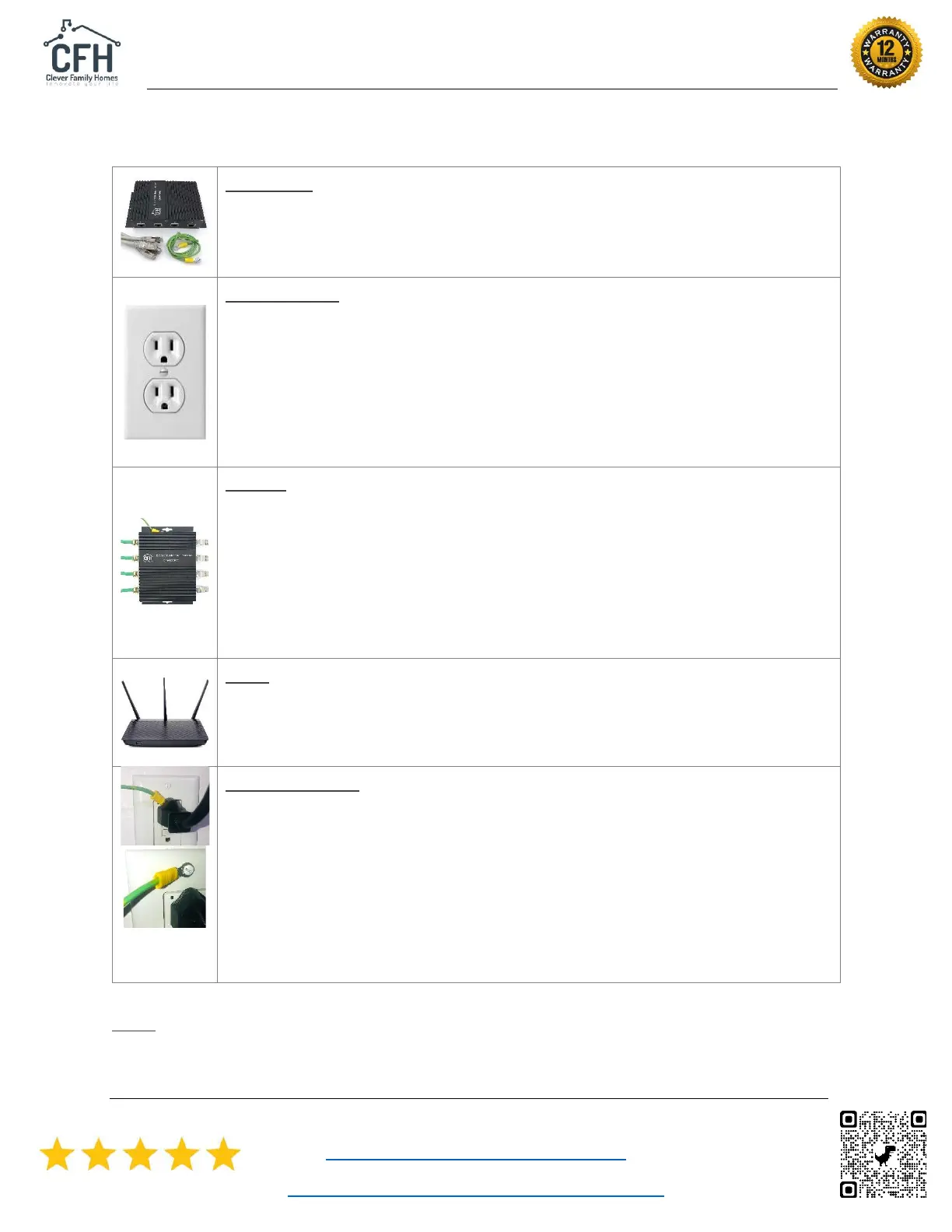

CFHSO0500- Installation Guide

1.1

support@cleverfamilyhomes.com

cleverfamilyhomes.com/power-protection

⚡Ethernet Gigabit 4-Port non-POE Surge Protector.

Contents:

•One Ethernet 4-Port Gigabit non-POE SPD.

•4 x 1-foot Cat 6a jumper cables (Kit only).

•3-foot AWG 12 ground wire (Kit only).

Preparation:

•This SPD needs to be installed as close as possible to the device

to be protected using the 1-foot Cat 6a jumper cables.

•Find the best ground point: a wall outlet or device case screw

(Modem, Router, Switch etc.). Check that the connection is

properly grounded. For wall outlets, use a “outlet tester”. For

devices, check with the vendor or perform an ohm test <= 5.

Install:

•Mount the unit on the wall within 1-foot of the device (optional).

•Insert the network CAT cables into the IN ports.

•Connect one end of the CAT 6a 1-foot jumper lead into the OUT

port of the protector and the other end into the device port.

•Don’t bother installing and connecting the complete ground wire

until you have tested the connections.

Test:

•Connect the device and check that the data quality and speed is

ok and same as before. If there is any distortion or degradation,

see the troubleshooting guide over the page.

Ground install:

•Connect the free end of the ground wire to a wall outlet or screw

onto the metal case of a device (make sure it’s grounded).

•If using a wall outlet: (1) thread the #10 ring terminal over the

large round ground prong of a plug, (2) You can use one of the

wall socket plate screws if grounded or (3) you can also wire the

ground wire directly to the wall socket ground. We recommend

disconnecting the power and using an electrician for this.

Note: This unit does not support POE (Power Over Ethernet) applications and does not act as a

network switch. Each port is an isolated SPD, sharing a common ground and ground wire.
