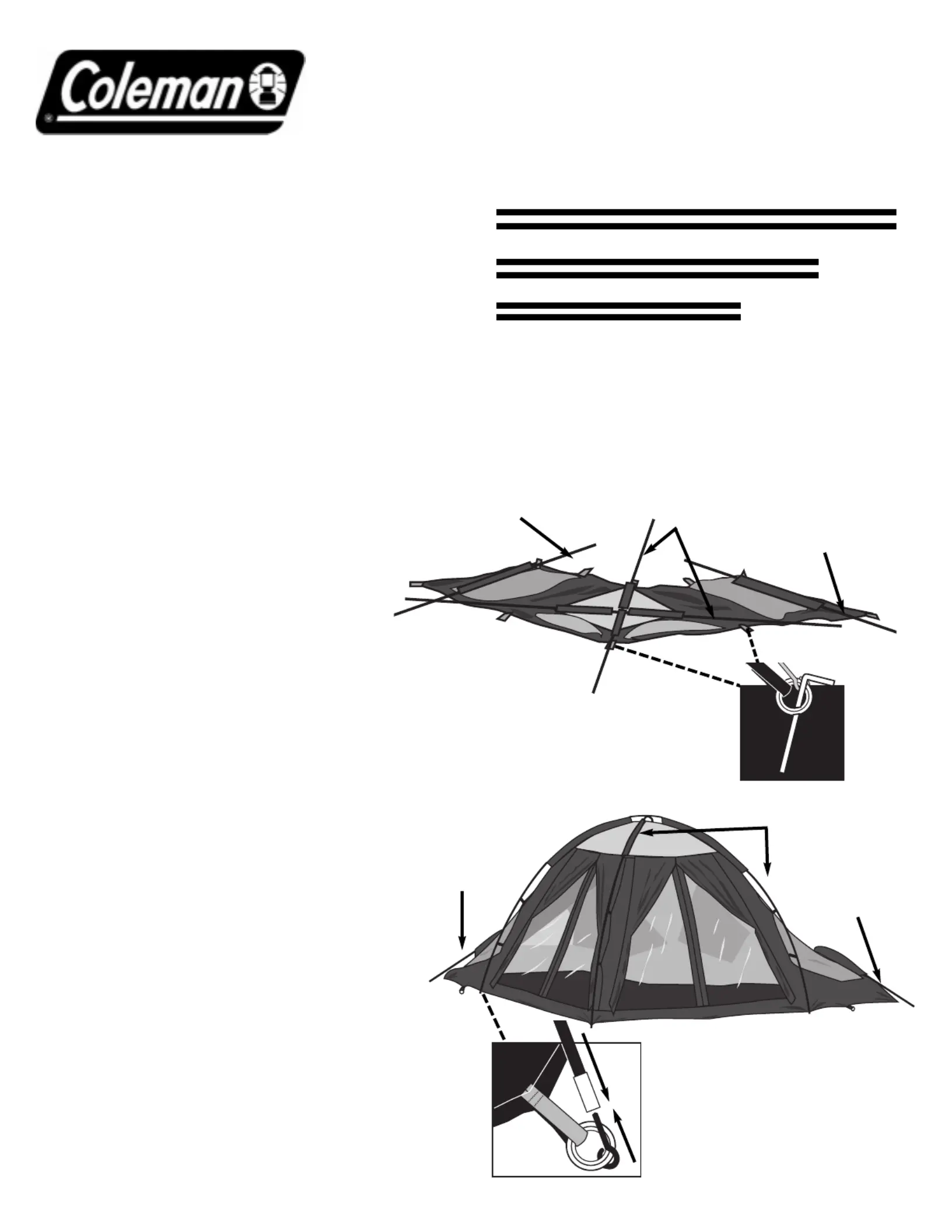

Layout & Positioning
of Tent, Pole Assembly
–Layout and position tent with doors
facing desired direction. (illus. 1)
–Stake down tent corners, using
the tent stake loops.
Keep the oor taut.(illus. 2)
–Assemble all poles by interlocking
shock-corded poles.
–Insert the longer Center Frame Poles into
Center Pole Sleeves. The poles should cross
forming an “X”in the middle of tent. (illus. 1).
–Insert the shorter Side Frame Poles through the pole
sleeves located at the sides of tent. (illus. 1).
Connect Frame to Tent
–Unzip doors
–Locate the Pin & Ring Systems on
either side of the front doors and the
corresponding Pin & Ring on the
back side of tent.
–Insert one end of Frame Pole onto
Pin & Ring System on tent stake
loop on either side of the doors (illus. 3)
–Go to opposite end of pole diagonally
from starting point and gradually
apply pressure to the pole forming an
arch until you are able to insert the
Pin into pole end.
–Repeat for second pole–Attach tent
frame clips to poles
13’x13’ 3 Room Dome Tent
1
2
When You Are Ready To Set Up Your
Tent
–Select a level campsite clear of rocks,
branches and other hard or sharp objects.
–Do not set up your tent under trees.
–For best results in windy conditions,
position the end of tent into the wind.
–See owners manual for more tips.
Side Tent
Poles
Rainy Pole
Rainy Part No. 9270A104
Center Tent
Poles
POLE ASSEMBLY PARTS
Door
Door
Instructions apply to Part Number 9270B133
illus. 1
illus. 2 Tent
stake through
stake loop
illus. 4
Center section upright
Part No. 9270-102
Part No. 9270-105
Part No. 9270-103
Illus. 3
Ring & Pin System
Center poles
Side pole
Side pole
Center poles
Sidepole
Sidepole
3

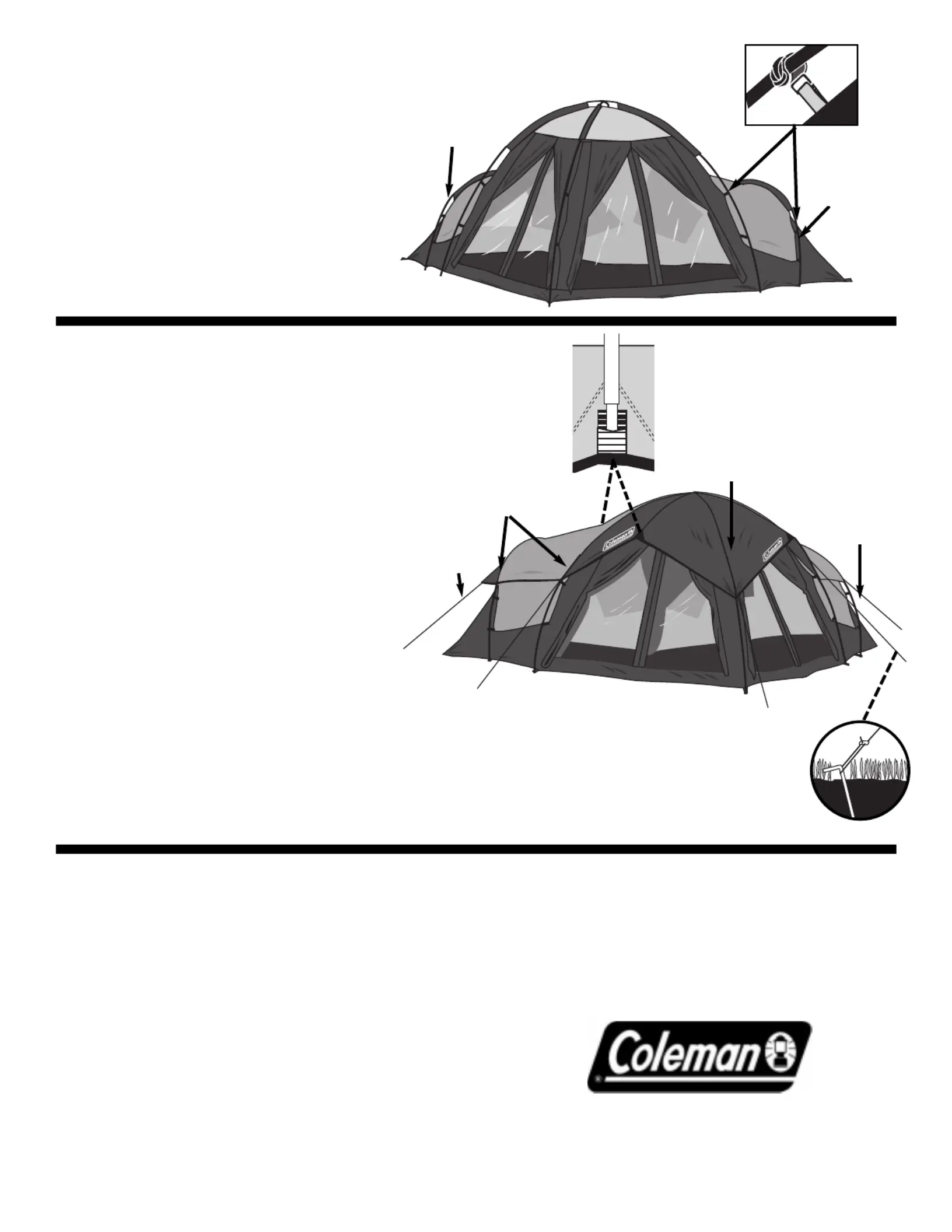

Raise Ends of Tent
–Insert one end of the Side Frame Pole
onto the Pin & Ring System
–Repeat for other Side pole
–Go to opposite end of pole and
gradually apply pressure until pole
arches enough to t onto Pin
–Attach Frame clips
4
Attach Rainy
–Assemble Rainy Poles by interlocking
shock-corded poles
–Insert Rainy Poles into reinforced
pockets located at the center edges
of the underside of Rainy . They will
form an“X”. (illus. 7), (illus. 8)
–Tie underside of Rainy to the Rainy
Pole with Frame Tie (illus. 8)
–Drape rainy over tent, pole side
down. The rainy poles should
pointing out over the doors and
toward the sides of the tent.
–Secure the underside of the
rainy to the tent poles with fabric ties
– Attach “S”hooks to the loops on
the tent while wrapping stretch cord
around tent pole one time
–Attach Guy Linesto fabric loops on rainy.
Two at each end over side windows and
four on the rainy. Stake out Guy lines
away from the tent at an angle.(illus. 9)
illus. 6
Assembled tent without Rainy. Note
the Frame Clips located on tent.
illus. 5
Frame Clips
illus. 8
Completed tent with Rainy. Note the 2 guy
lines on each end and 4 main guy lines
Side pole
Side pole
End Guy
Lines
End Guy Lines
4 Main Guylines attach to
fabric loops on Rainy
Frame ties located on
under side of Rainy
illus. 9
Stake out tent withadjustable Guy
Lines. Slide the metal disc up the
rope to tighten Guy Line.
illus. 7 Insert Rainy
Pole piece into
pockets on underside
of Rainy
Things You Should Know
•
Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be mini-
mized by removing wet clothing from your tent and by providing good ventila-
tion through the tent.
•
Never store tent, even for a short period of time, without drying it thorough-
ly and brushing off caked dirt. Do not pack stakes or poles inside your tent.
Use separate storage bag.
•
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
•
TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
•
Seam sealer has not been provided with your tent. It is necessary
and we recommend seam sealing your tent prior to camping. Seam sealer
may be purchased through your local retailer or at your local sporting goods
store.
•
Do not leave your tent set-up for weeks at a time, be aware that expo-
sure to the ultraviolet rays of the sun can seriously damage nylon material
and/or cause it to become discolored.
•
See owners manual for more tips.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the ammability
requirements of CPAI-84. The fabric may burn if left in continuous contact
with any ame source. The application of any foreign substance to the
tent fabric may render the ame-resistant properties ineective.
THE COLEMAN CO., INC.
3600 N. Hydraulic • Wichita, Kansas 67219
1-800-835-3278 • www.coleman.com
