Seite 1/4
Connect Frame to Tent
– Insert one pin into the end of main tent pole
at tent corner. (illus. 3, illus. 4)
– Go to opposite end of pole and gradually
apply pressure to the pole forming an arch
until you are able to insert the pin into the
pole end.
– Repeat for second and third main poles.
(illus. 3, illus. 4) This will raise the
center of the tent.
– Assemble side and front shock-corded poles.
1

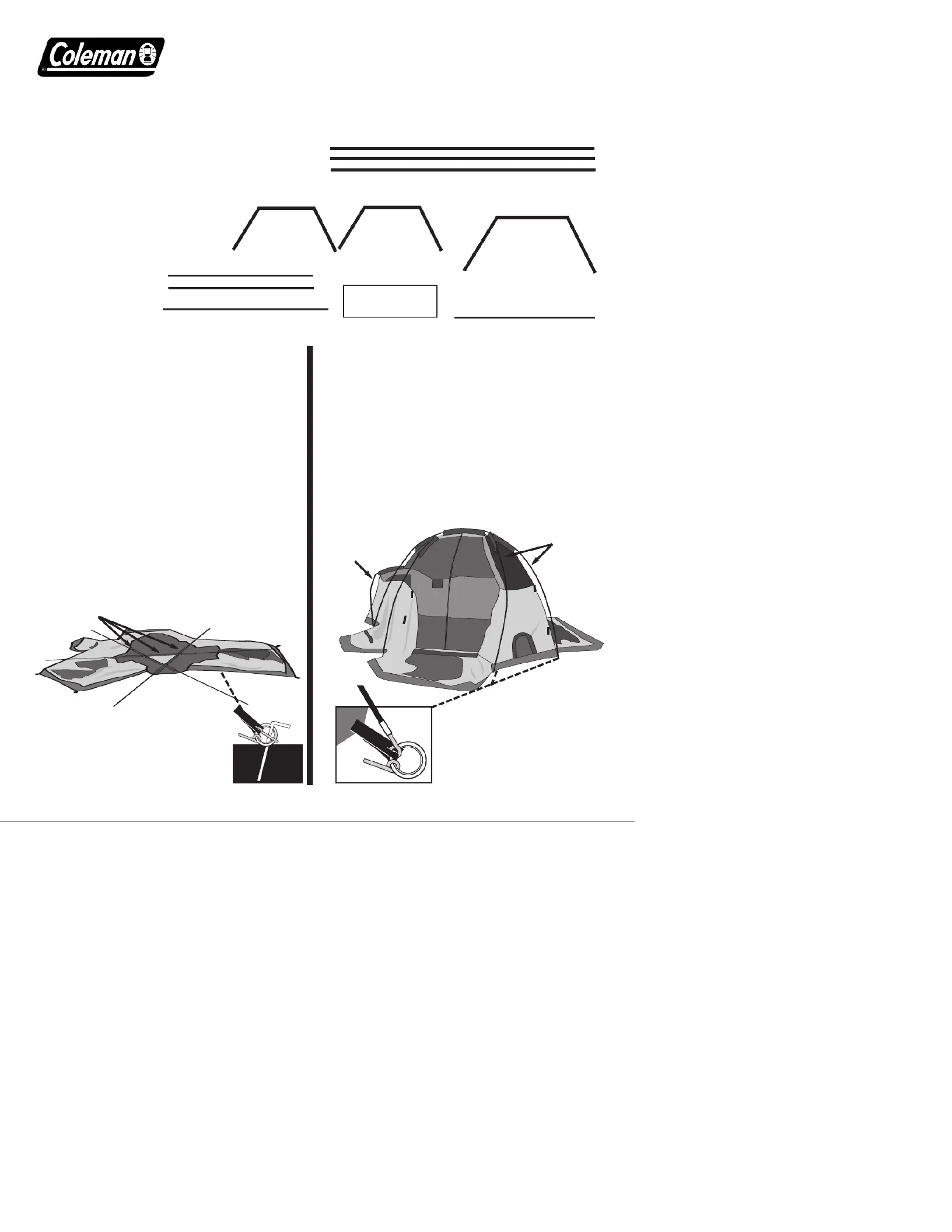

Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with front door
facing desired direction. (illus. 1)
– Unzip doors.
– Stake down tent corners only, using the
stake loops. Keep the floor taut.
(illus. 2)(Intermediate loops will be
staked later.)
– Assemble main tent poles by interlocking
shock-corded poles. (three poles)
– Insert the poles into pole sleeves.The
poles should cross forming a triangle in
the middle of tent. (illus. 1)
2
When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
–
For best results in windy conditions,
position the end of tent into the wind.
Front Entrance Pole (Gray)
Assembled Main poles
inserted through
pole sleeves
Instructions apply to Part Number 9230-174C
illus. 1
illus. 2
Tent stake
through ring
on stake loop
illus. 4
Tent center
frame set-up
Side Pole in
position see step 3
Center poles
Part No. 9230-3521
Part No. 9230-3541
Part No. 9230-3571
illus. 3
Insert pin into pole end
Rainfly
Part No.
9230-3561
(3) Main Tent Poles
(Black)
(2) Side Poles
Pet Den Pole
Part No. 9230-3591
(2) Side Rainfly Poles
Part No. 9230-3581
(1) Front Rainfly Pole
(Gray)
Part No. 9230-3562
POLE ASSEMBLY PARTS
Somerset Pass
™
17’x16’5”
3
4

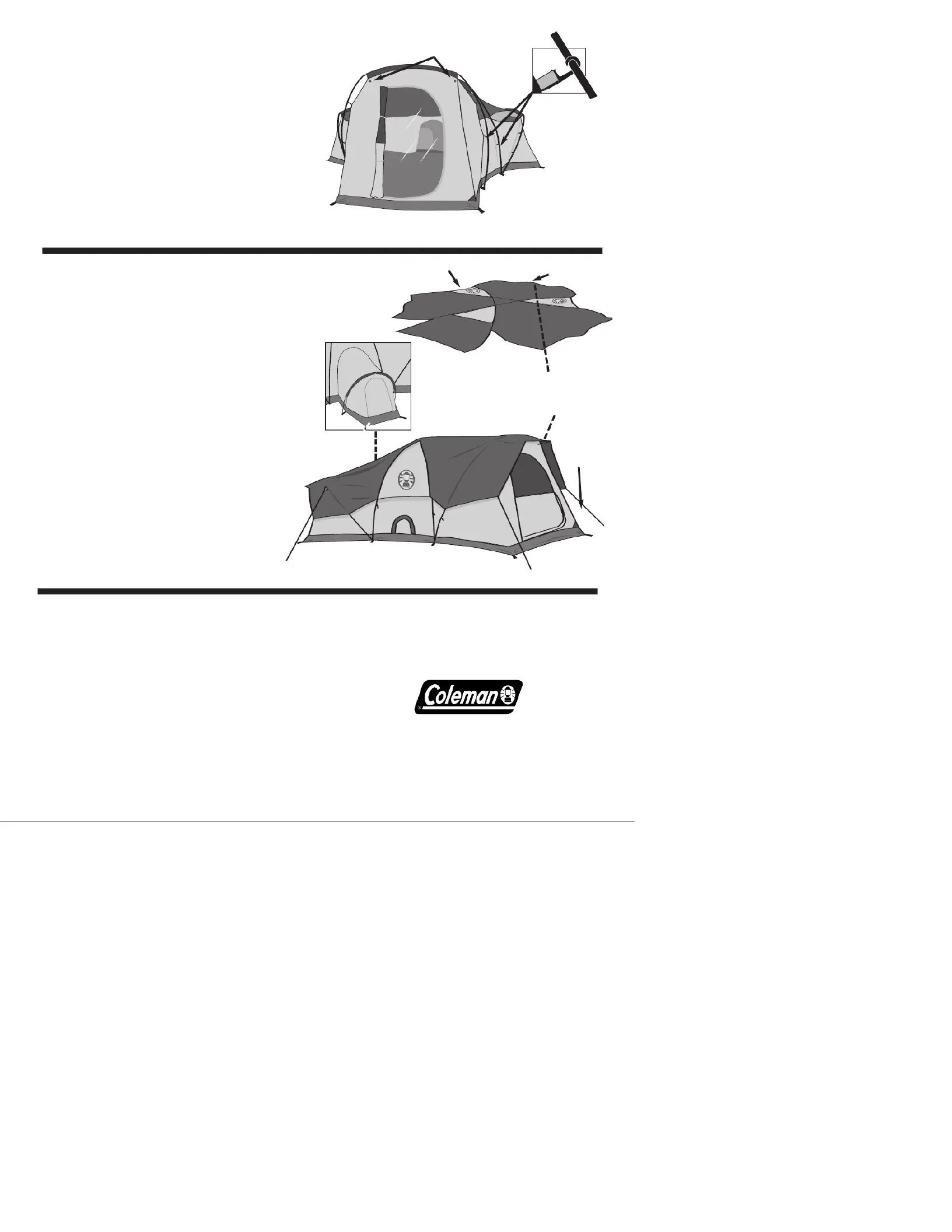

illus. 5 Assembled tent without rainfly.
Note the frame clips located on edge of tent.
illus. 6
Frame clips
illus. 7
Rainfly
Grommets for rainfly poles
Front of Rainfly
Right side logo
illus. 8 Completed tent with rainfly.
Guyline
Attach Rainfly
– Drape rainfly over tent frame, with logos
on each side of tent. (illus. 7, 8)
– Connect the elastic loops with “S” hooks
on the rainfly corners, to the fabric loops
on the frame clips.
– Assemble all rainfly poles.
– Insert side (black) rainfly poles through
pole sleeve on underside of rainfly above
the rear doors. Insert front (gray) rainfly
pole in pole sleeve above front door.
Gently bend and insert tips of the rainfly
poles into the grommets above the doors.
(illus. 5, 8)
– Secure rainfly with attachments
located on underside of fly. (illus. 8)
– Attach and stake out guylines.
–
Pet room: Insert pet room pole through
pole sleeve and gently bend until
you can insert tips into grommets
on stake loops. (illus. 9)
Add Side & Front Poles,
Attach Frame Clips
– Insert side poles into pole sleeves above
rear doors. Insert front pole into pole (gray)
sleeve above front door. (illus. 5)
– Insert pin on stake loops into the end
of side and front tent poles. (illus. 3, illus. 4)
– Go to opposite end of pole and gradually
apply pressure to the pole forming an arch
until you are able to insert the pin into the
pole end. Repeat for remaining poles.
– Attach frame clips to frame poles. (illus. 5, 6)
– Stake out all additional loops.
Insert Front Rainfly
pole through pole
sleeve on underside
of rainfly.
illus. 9
Pet Den shown
set-up with pole
and staked out.
Things You Should Know
•
Under certain conditions (cold weather, high humidity, etc.)
condensation will form on the inside surfaces of your tent. Condensation is
caused by water vapor from your breath, perspiration, or any wet clothing
inside your tent. It is NOT LEAKAGE through the tent fabric. It can be
minimized by removing wet clothing from your tent and by providing good
ventilation through the tent.
•
Never store tent, even for a short period of time, without drying it
thoroughly and brushing off caked dirt. Do not pack stakes or poles inside
your tent. Use a separate storage bag.
•
STAKES SHOULD BE REMOVED BY PULLING ON THE STAKE ITSELF.
NEVER PULL ON THE TENT FABRIC OR TENT STAKE LOOP TO
REMOVE STAKE.
•
TENT POLES SHOULD NOT BE LEFT TELESCOPED
TOGETHER DURING STORAGE.
•
Seam sealer has not been provided with your tent. For additional protection
we recommend seam sealing your tent prior to camping. Seam sealer may be
purchased through your local retailer or at your local sporting goods store.
•
Do not leave your tent set-up for weeks at a time, be aware that
exposure to the ultraviolet rays of the sun can seriously damage nylon
material and/or cause it to become discolored.
WARNING: KEEP ALL FLAME AND HEAT SOURCES
AWAY FROM THIS TENT FABRIC. This tent meets the flammability
requirements of CPAI-84. The fabric will burn if left in continuous
contact with any flame source. The application of any foreign substance
to the tent fabric may render the flame-resistant properties ineffective.
IMPORTED BY
SUNBEAM CORPORATION (CANADA) LIMITED
DBA
JARDEN CONSUMER SOLUTIONS
20B Hereford Street, Brampton, Ontario L6Y 0M1
1-800-387-6161 • www.colemancanada.ca
MADE IN CHINA
PRINTED IN CHINA REV
. 12/07
Fixez l’armature à la toile
– Introduisez une cheville dans le bout d’un
mât principal, au coin de la tente (ill. 3, 4).
– Allez à l’autre bout du mât et arquez celui-
ci progressivement afin de pouvoir insérer
la cheville dans le bout du mât.
– Agissez de la même façon avec les deux
mâts principaux restants (ill. 3 et 4). Vous
lèverez ainsi le centre de la tente.
– Enclenchez les mâts latéraux et avant.
1
Étalez et positionnez
la tente et les mâts
– Étalez et positionnez la tente en orientant
la porte dans la direction désirée (ill. 1).
– Ouvrez la glissière des portes.
– Ancrez les coins avec les bagues des
ganses de piquet. Tendez bien le tapis
de sol (ill. 2). (Vous n’ancrerez les
ganses intermédiaires que plus tard.)
– Enclenchez les (trois) mâts solidarisés
de la tente principale.
– Enfilez ces mâts dans les passants.
Les mâts se croiseront et formeront un
triangle au milieu de la tente (ill. 1).
2
Quand vous êtes prêt
à monter votre tente
– Choisissez un endroit propice:
de niveau et sans pierres, branches
ou matières dures et pointues
– Ne la placez pas sous les arbres
– Pour obtenir les meilleurs résultats en
cas de vent, mettez l’arrière au vent
Mât de l’entrée avant (gris)
Mâts de la tente principale
emboîtés et enfilés dans
les passants
Instructions relatives au modèle 9230-174C
ill. 1
ill. 2
Piquet passé
dans la bague d’une
ganse de piquet
ill. 4
Armature du
centre de la
tente montée
Mât latéral en place
– voyez le numéro 3
Mâts principaux
Pièce n
o
9230-3521
Pièce n
o
9230-3541
Pièce n
o
9230-3571
ill. 3
Insérez la cheville
dans le bout du mât
Double toit – Pièce
n
o
9230-3561
3 mâts de la tente
principale (noirs)
2 mâts latéraux
Mât de l’abri niche
Pièce n
o
9230-3591
2 mâts latéraux du double
toit
Pièce n
o
9230-3581
1 mât avant du double toit
(gris)
Pièce n
o
9230-3562
PIÈCES DES MÂTS
Somerset Pass
™
5,2 x 5 m
