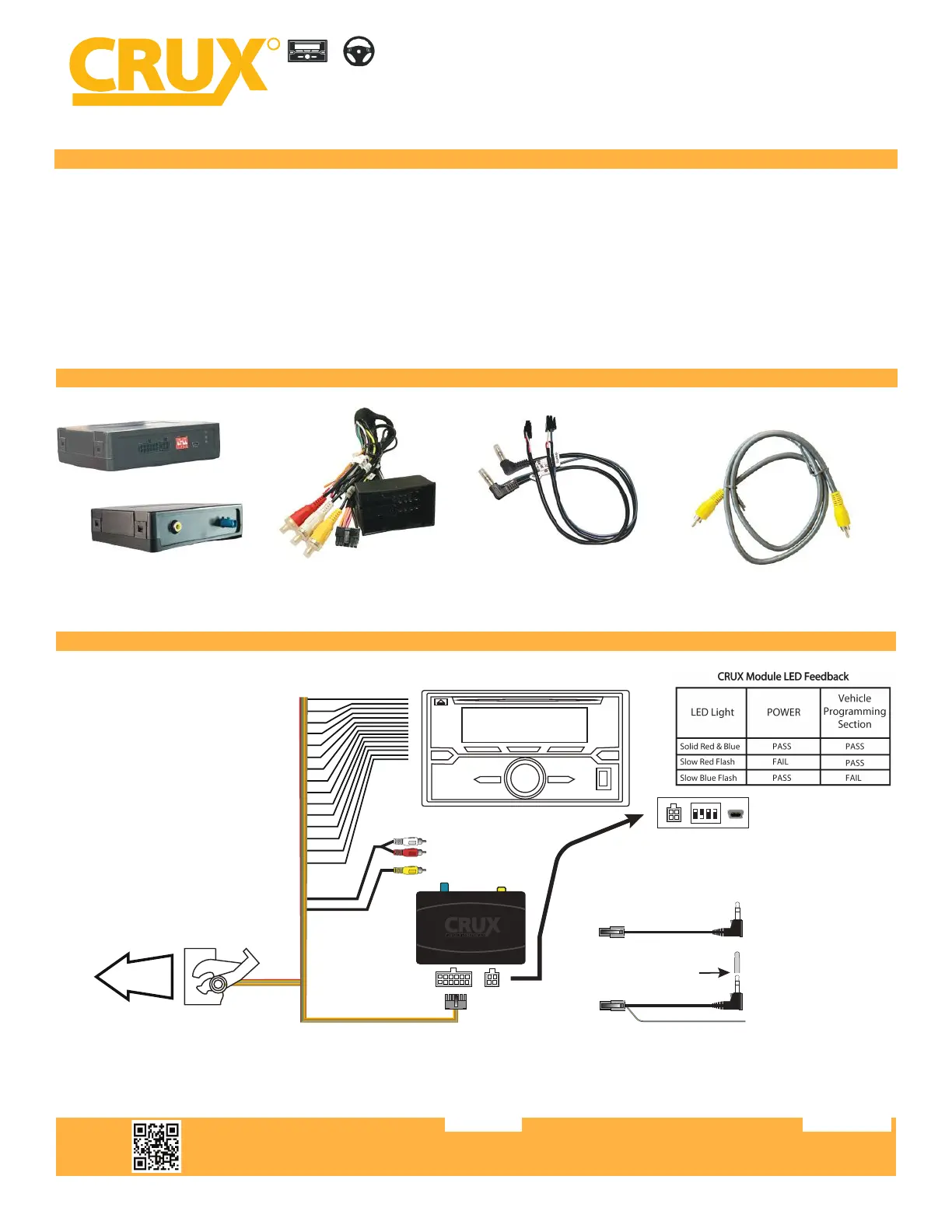

Crux Interfacing Solutions • Chatsworth, CA 91311

phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com

rev.072424

SWRCR-59LV

Radio Replacement with Steering Wheel Control Retention

for Select Dodge, Fiat, Jeep and RAM Vehicles

1 of 4

RADIO REPLACEMENT

SWC RETENTION

+

R

INTERFACING SOLUTIONS

-Retains factory features in select Dodge, Fiat, Jeep and RAM vehicles while functioning with an aftermarket radio.

-Retains Steering Wheel Controls via built-in, pre-programmed interface.

-Provides accessory power (2A Max).

-Retains factory backup camera (composite and LVDS)

-Retains factory Aux input in select vehicles.

-Retains factory SWC phone button functionality in select vehicles.

-Retains factory Digital (Alpine amplifier) and analog amplifier.

-EIA color coded wiring for easy installation.

PRODUCT FEATURES:

PARTS INCLUDED:

INSTALLATION DIAGRAM:

SWRCR-59LV Module

Front view

Back view

SWRCR-59LV HarnessSWC Cables

AFTERMARKET

RADIO

+12V ConstantYellow

Gr

oundBlack

+12V

A

CC

Red

Reverse Trigger Red/White

VSS (Vehicle Speed Sense) Purple/White

Illuminaton (+)Orange

Amplifier Turn-on Blue/White

Right Fron

t (+)G

ray

Right Fron

t (-)G

ray/Black

Left Fron

t (+)Whi

te

Left Front (-) White/Black

Right R

ear (+)Viol

et

Right Rear (-) Violet/Black

Left R

ear (+)G

reen

Left Rear (-) Green/Black

To Retain Factory Aux Input Red/White RCA

To Retain OEM composite Camera* Yellow RCA

12-Pin

Connector

4-Pin

Connector

Option A:

Option B:

Cap or insulate if

not being used

BLUE / YELLOW

Insulate with tape

if not being used

3.5MM SWC CABLES (Option A or B)

Use the proper 3.5MM to 4-Pin cable for your radio.

Plug in the selected 3.5MM SWC cable to the 4-pin port

on the module. See “DIP SWITCH SETTINGS” section.

To the aftermarket

radio 3.5mm SWC

port or SWC wires

Video Cable (Male to Male)

1 2 3

ON

4

*NOTE: To Retain OEM non digital Backup Camera connect

the

video RCA directly to the aermarket radio

TO FACTORY

HARNESS
