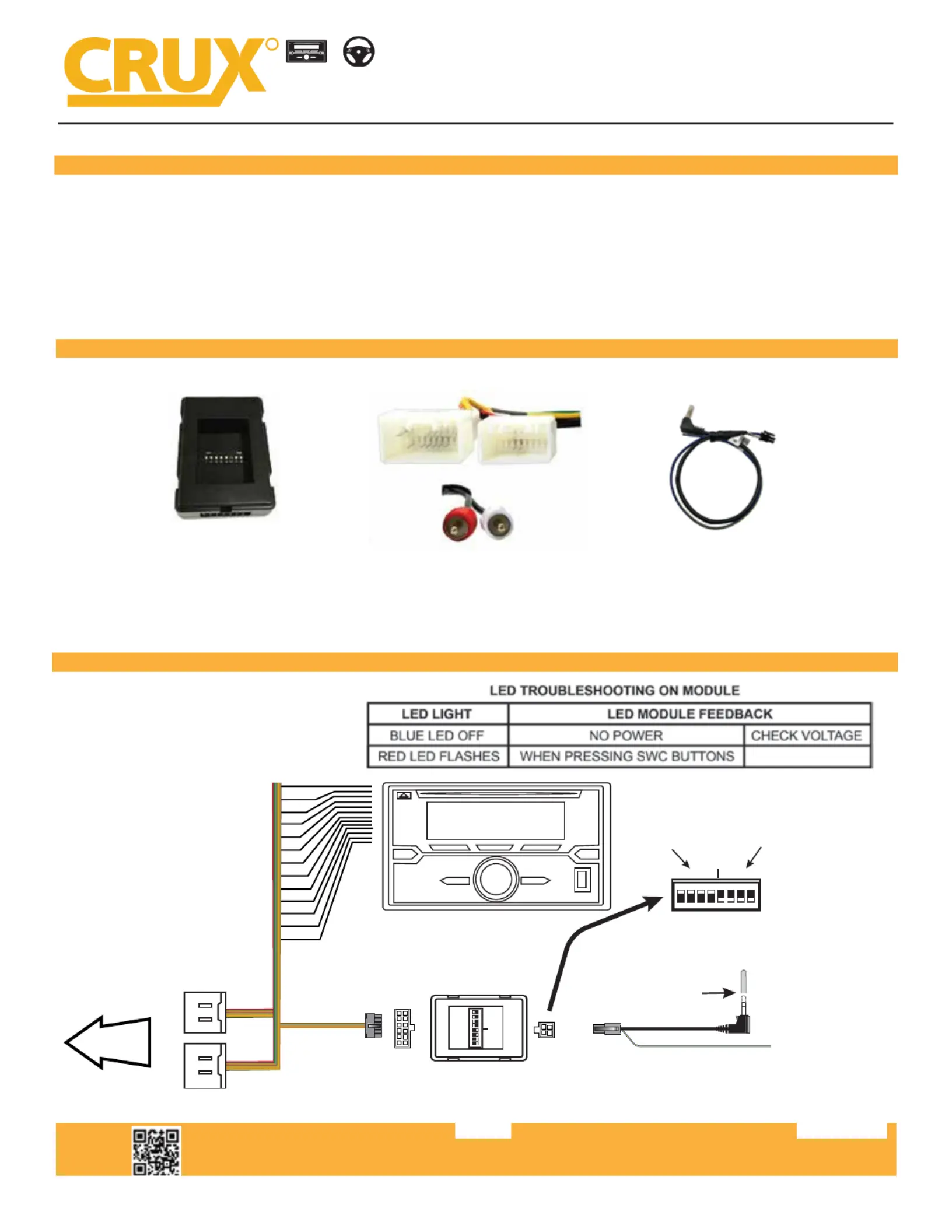

Seite 1/3
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100724
SWRMT-39N
Radio Replacement with Steering Wheel Control Retention for
Select Mitsubishi Vehicles 2008 - 2019
1 of 2
R PL A TADIO RE CEMEN
SWC ENTIORE T N
+
R
INTERFACING SOLUTIONS
- Pre-programmed to retain factory Steering Wheel Controls.
- Retains factory Auxiliary input for vehicle if equipped.
- Retains factory features in select Mitsubishi vehicles while functioning with an aftermarket radio.
- EIA color coded wiring for easy installation.
PRODUCT FEATURES:
PARTS INCLUDED:
SWRMT-39N Module SWRMT-39N Harness SWC Cable
INSTALLATION DIAGRAM:
AFTERMARKET
RADIO
4-Pin
Connector
Cap or insulate if
not being used
Kenwood/JVC (BLUE / YELLOW)
Insulate with tape
if not being used
3.5MM SWC CABLE
Plug in the 3.5MM SWC cable to the 4-pin port
on the module. See “DIP SWITCH SETTINGS” section.
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
+12V Constant
Yellow
+12V ACC
Red
Ground
Black
Illumina on (+)ti
Orange
Antenna Power
Blue
Right Front (+)
G yra
Right Front (-) Gray/Black
Le Front (+)ft
White
Le Front (-) White/Blackft
Right Rear (+)
Violet
Right Rear (-) Violet/Black
Le Rear (+)ft
Green
Le Rear (-) Green/Blackft
TO FACTORY
HARNESS
12-Pin Black
Connector
AFTERMARKET
RADIO SELECTOR
(See Page 2)
MITSUBISHI
SWC SETTING
(See Page 2)
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
18 Pin Connector
20 Pin Connector
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100724
SWRMT-39N
Radio Replacement with Steering Wheel Control Retention for
Select Mitsubishi Vehicles 2008 - 2019
2 of 2
R PL A TADIO RE CEMEN
SWC ENTIORE T N
+
R
INTERFACING SOLUTIONS

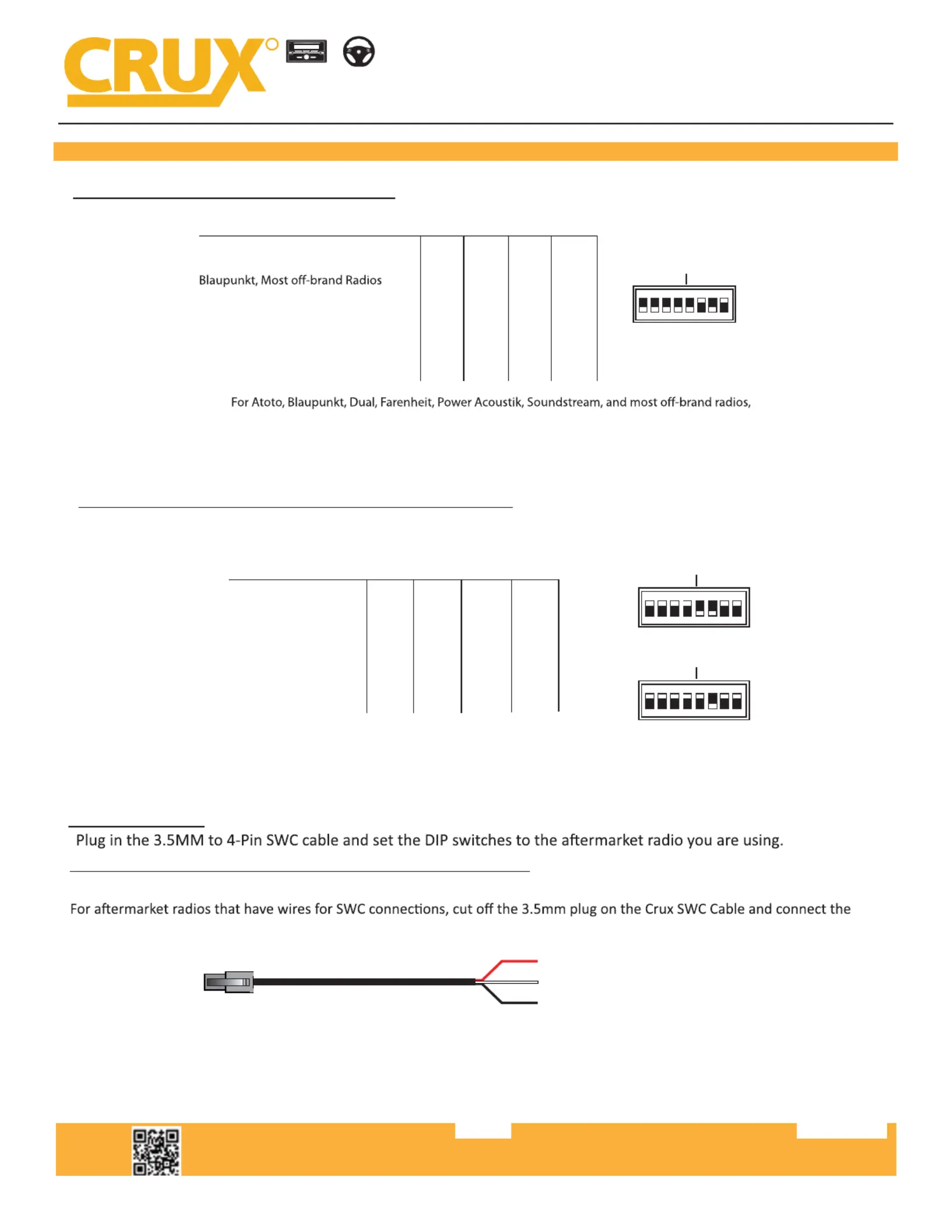

DIP SWITCH SETTINGS:
MITSUBISHI STEERING WHEEL CONTROL DIP SWITCH SETTING:
AFTERMARKET RADIO DIP SWITCH SETTINGS:
RADIO BRAND: DIP: 3 41 2
Atoto, Dual, Farenheit, Jensen, Pioneer
Power Acoustik, Soundstream
Alpine
Clarion
Kenwood
JVC
Boss, Old Sony
New Sony
OFF OFF ON ON
OFF OFF ON ON
OFF OFF ON ON
OFF OFF OFF OFF
OFF ON ON OFF
OFF ON ON ON
OFF ON OFF ON
OFF ON OFF OFF
OFF OFF ON OFF
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
NOTE:
check the aftermarket radio’s manual to see if the SWC buttons need to be programmed.
DIP: 7 85 6
Older Mitsubishi models
OFF OFF ON ON
Newer Mitsubishi models ON OFF ON ON
SWC MODULE
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
ON RADIO VEHICLE
1 2 3 4 5 6 7 8
3.5MM SWC CABLE
NOTE: Insulate the Blue/Yellow wire or the 3.5mm plug if not being used.
RED to SWC Key 1
WHITE to SWC Key 2
SHIELD to SWC Ground
SWC wires as follows:
Note that there are some radios that only have SWC1 and SWC2, in this case “shield” does not need to be connected.
Crux Interfacing Solutions • 21541 Nordhoff St., Unit C, Chatsworth, CA 91311
phone: (818) 609-9299 • fax: (818) 996-8188 • www.cruxinterfacing.com
rev.100724
SWRMT-39N
Radio Replacement with Steering Wheel Control Retention for
Select Mitsubishi Vehicles 2008 - 2019
2 of 2
R PL A TADIO RE CEMEN
SWC ENTIORE T N
+
R
INTERFACING SOLUTIONS

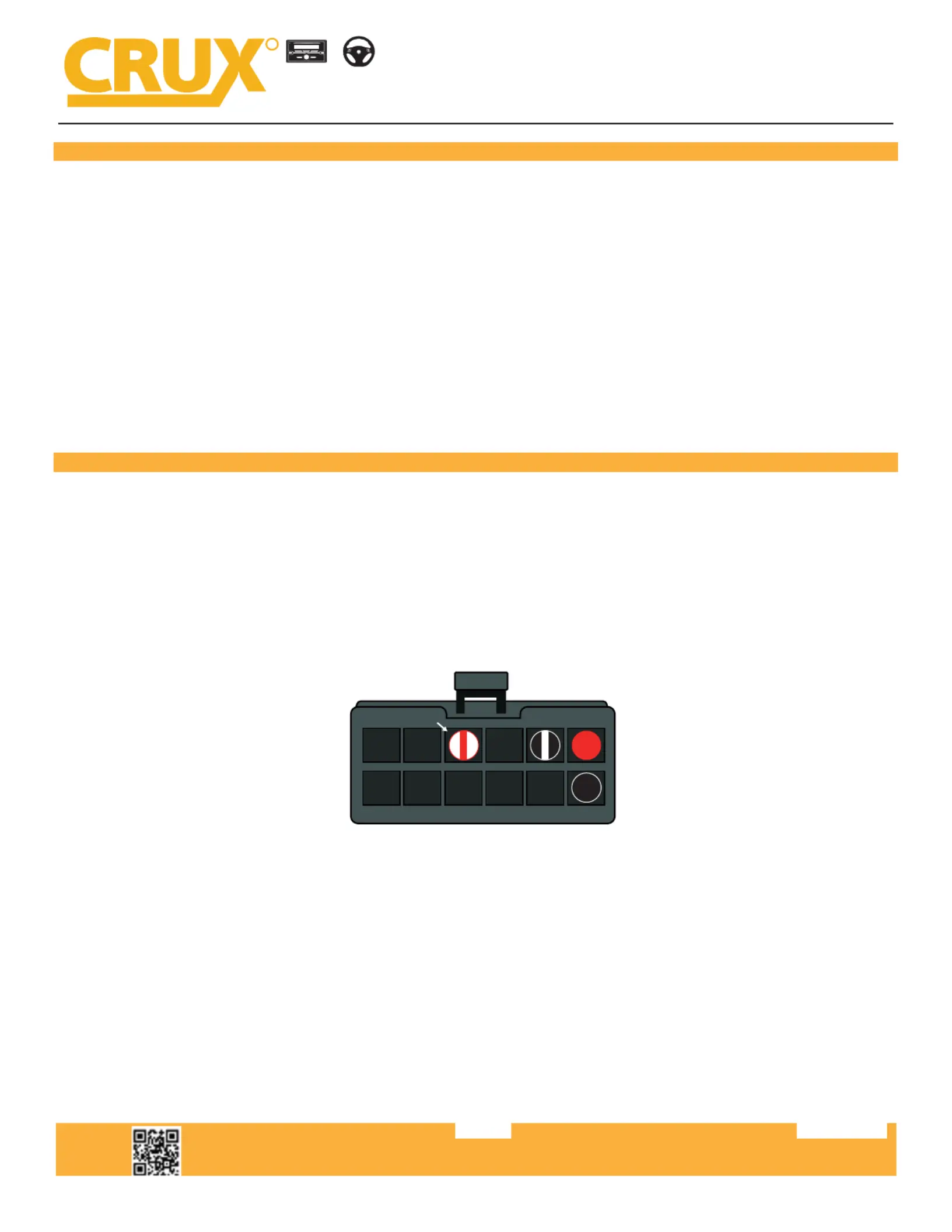

TROUBLE SHOOTING:
MITSUBISHI
NOTE: Not compatible with vehicles equipped w/ factory Nav
Not compatible with vehicles that have Rockford Fosgate
Make sure the swc white/red pin is in the correct locaon
in the 12 pin molex connector going into the module
2008-2017 Lancer
2008-2015 Lancer Evoluon
2014-2019 Mirage
2008-2019 Outlander
2011-2019 Outlander Sport
VEHICLE APPLICATIONS:
01
07
06
12
If vehicle is equipped with a factory Rockford Fosgate amplier use CRUX part# SWRMT-39M
10
