Articulating Desk Mount Arm

with Universal Security Enclosure

PAD-ADMAEU

CONTENTS:

INSTRUCTIONS:

2A. When the C-Clamp is securely

attached to a surface, use the

provided security tool (C), attach to

security component, and rotate

closewise to put the C-Clamp in an

‘locked’ state. To loosen, rotate

counterclockwise with the security

tool.

Remove arm (D) from the

base clamp mount. Repeat

steps in reverse order to

re-install connection

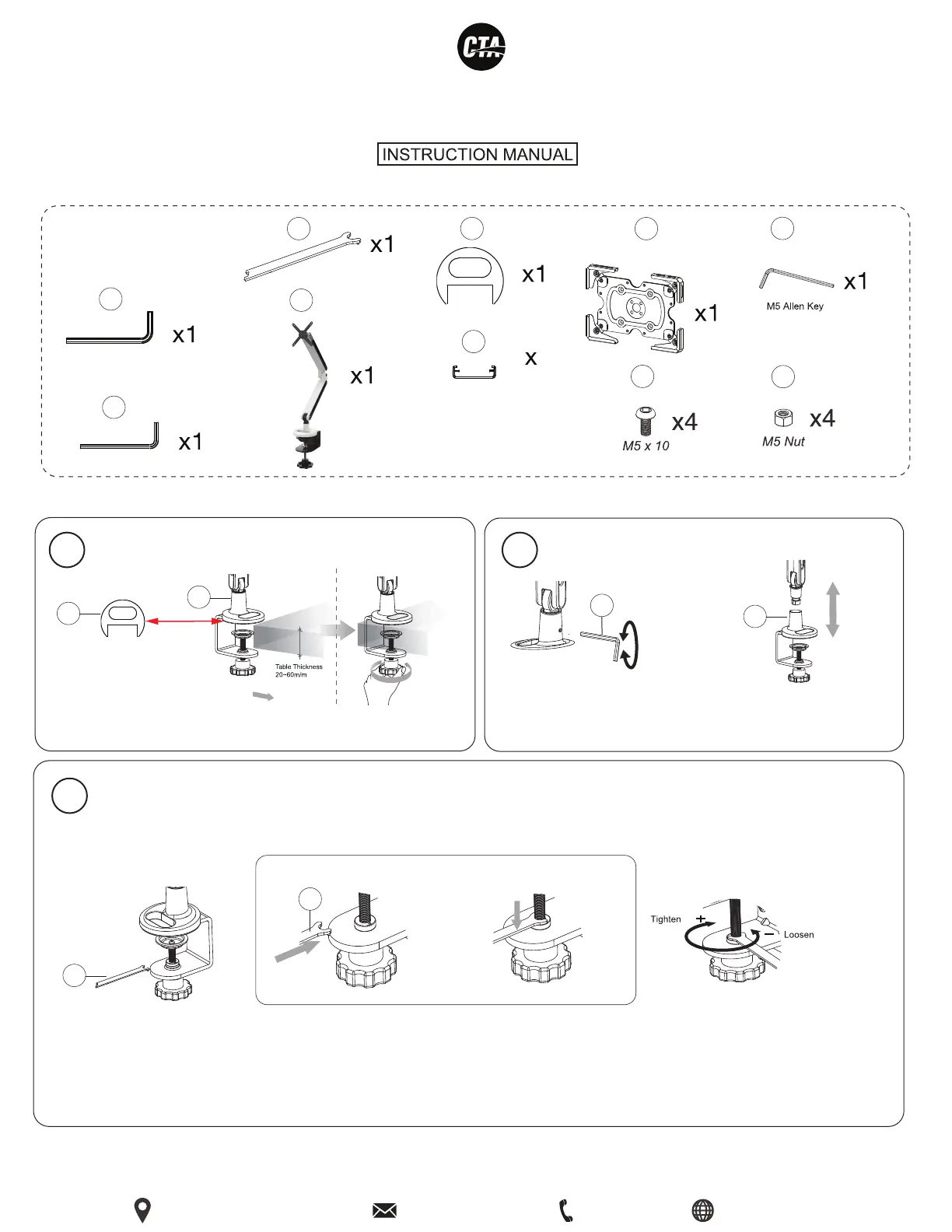

2B. Align the (2) dimples on the underneath of the

security tool into the two holes on the security

component on the clamp as shown above

2C. Rotate counter-clockwise to

loosen and place the clamp in an

‘unlocked’ state. Continue rotating

until there is enough slack to rotate

the knob.Turn it clockwise to tighten

and place the clamp in a ‘locked’

state.

2

BASE CLAMP SECURITY SETUP

BASE MOUNT INSTALLATION

ARM & BASE CLAMP

ADJUSTMENTS

If you need to remove the arm

from the base clamp, take the

provided tool (B), rotate, and

loosen connection.

1

2

3

Find the included base

pad (E) and peel off the

backing. Align to the

underneath of the

C-Clamp (D) and apply

pad.

While the clamp is in unlocked mode, rotate the

knob at the bottom (as shown above) to loosen

or securely tighten to the table top.

ALIGNING SECURITY TOOL WITH SECURITY COMPONENT

A

B

C

D

E

F

E

D

B

D

C

C

G

H

I

J
