Declaration of conformity
Products with a CE symbol fulfill the RED directive (2014/53/EU) and RoHS
directive (2011/65/EU+2015/863+2017/2102), which were released by the
EU-comission.
The declaration of conformity can be downloaded here:
https://www.delock.de/produkte/G_90586/merkmale.html
Frequency band(s): 2402 - 2480 MHz
Maximum radio-frequency power transmitted: 1.28 mW EIRP
WEEE-notice
The WEEE (Waste Electrical and Electronic Equipment)-directive, which became
eective as European law on February 13th 2003, resulted in an all out change
in the disposal of disused electro devices. The primarily purpose of this directive
is the avoidance of electrical waste (WEEE) and at the same time the support of
recycling and other forms of recycling in order to reduce waste. The WEEE-logo on
the device and the package indicates that the device should not be disposed in the
normal household garbage. You are responsible for taking the disused electrical
and electronical devices to a respective collecting point. A separated collection and
reasonable recycling of your electrical waste helps handling the natural resources
more economical. Furthermore recycling of electrical waste is a contribution to
keep the environment and thus also the health of men. Further information about
disposal of electrical and electronical waste, recycling and the collection points
are available in local organizations, waste management enterprises, in specialized
trade and the producer of the device.
Battery guideline (2006/66/EC)
The built in battery is recyclable. Please dispose of it by using the battery container
or dealer. Just dispose of the empty battery to gurantee the environmental
protection.
Cet appareil et
ses accessoires
se recyclent
Points de collecte sur www.quefairedemesdechets.fr
EU Import: Tragant Handels- und Beteiligungs GmbH
Beeskowdamm 13/15, 14167 Berlin, Germany
Support Delock
If you have further questions, please contact our customer support
support@delock.de
You can nd current product information on our homepage: www.delock.com
Final clause
Information and data contained in this manual are subject to change without notice
in advance. Errors and misprints excepted.
Copyright
No part of this user's manual may be reproduced, or transmitted for any purpose,
regardless in which way or by which means, electronically or mechanically, without
explicit written approval of Delock.
Edition: 11/2024
User manual
Bedienungsanleitung
Product-No: 90588
User manual no: 90588-a
www.delock.com
Industrial Barcode Scanner
for 433 MHz or Bluetooth, USB
Note
Not suitable for Swiss QR Codes.
The read distance depends on the resolution of the barcodes.
Technical details
Charging station
• Connector: 1 x USB 2.0 Type-A male
• Input voltage: 5 V
• Current consumption:
operation: max. 1100 mA
standby: max. 700 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -20 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black
• Weight: ca. 216 g
• Dimensions (LxWxH): ca. 210 x 95 x 75 mm
• Cable length without connectors: ca. 1.25 m
• Bluetooth standard V 4.1
• 433 MHz
Barcode scanner
• Decoding chip: ARM Cortex 32 Bit
• Rechargeable battery: Li-Polymer battery 2600 mAh
• Resolution: max. 1280 x 1024
• Trigger: scan button
• Reading distance: ca. 12 cm - 650 cm
• Reading accuracy: 5 - 100 mil
• Range:
Bluetooth: up to 10 m
433 MHz: up to 100 m
• Internal memory: 16 MB
• Charging time: ca. 4 hours
• Operation time: ca. 16H with 2D, 24H with 1D
• Scan type: LED
• Light colour: visible LED red
• Compensation light: LED white
• Sensor: CMOS image sensor
• Scan rate: up to 120 scans per second
• Scan angle: 65°
• Surrounding brightness: max. 100000 Lux
• Input voltage: 5 V
• Current consumption:
operation: max. 220 mA
standby: max. 20 mA
• Operating temperature: -20 °C ~ 60 °C
• Storage temperature: -40 °C ~ 70 °C
• Relative humidity: 5 - 95 % (non condensing)
• Colour: black / green
• Weight: ca. 321 g
• Dimensions (LxWxH): ca. 185 x 100 x 80 mm
• Scancodes:
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro PDF417
Micro QR
PDF417
QR Code
• Supported languages:
German, French, Spanish, Italian, Belgian
English, Swiss French, Swiss German
Hungarian, Czech, Polish, Norwegian
System requirements
• Android 14.0 or above
• iPad Pro (3rd Generation) or above
• Mac OS 14.5 or above
• Windows 10/10-64/11
• Bluetooth standard 4.1 or above
• PC or laptop with a free USB Type-A port for dongle
Package content
• Barcode scanner
• Charging cradle
• User manual
English
Hinweis
Nicht für Swiss QR Codes geeignet.
Der Leseabstand ist abhängig von der Auösung der Barcodes.
Technische Daten
Ladestation
•
Anschluss: 1 x USB 2.0 Typ-A Stecker
• Eingangsspannung: 5 V
• Stromaufnahme:
Betrieb: max. 1100 mA
Standby: max. 700 mA
• Betriebstemperatur: -20 °C ~ 60 °C
• Lagerungstemperatur: -20 °C ~ 70 °C
• Relative Luftfeuchtigkeit: 5 - 95 % (nicht kondensierend)
• Farbe: schwarz
• Gewicht: ca. 216 g
• Maße (LxBxH): ca. 210 x 95 x 75 mm
• Kabellänge ohne Anschlüsse: ca. 1,25 m
• Bluetooth Standard V 4.1
• 433 MHz
Barcode Scanner
• Dekodierungschip: ARM Cortex 32 Bit
• Akku: Li-Polymer 2600 mAh
• Auösung: max. 1280 x 1024
• Auslöser: Drucktaste
• Leseabstand: ca. 12 cm - 650 cm
• Lesegenauigkeit: 5 - 100 mil
• Reichweite:
Bluetooth: bis zu 10 m
433 MHz: bis zu 100 m
• Interner Speicher: 16 MB
• Ladezeit: ca. 4 Stunden
• Betriebszeit: ca. 16 Std. bei 2D, 24 Std. bei 1D
• Scan Art: LED
• Lichtfarbe: sichtbare LED rot
• Kompensationslicht: LED weiß
• Sensor: CMOS Bildsensor
• Scan Rate: bis zu 120 Scans pro Sekunde
• Scan Winkel: 65°
• Umgebungshelligkeit: max. 100000 Lux
• Eingangsspannung: 5 V
• Stromaufnahme:
Betrieb: max. 220 mA
Standby: max. 20 mA
• Betriebstemperatur: -20 °C ~ 60 °C
• Lagerungstemperatur: -40 °C ~ 70 °C
• Relative Luftfeuchtigkeit: 5 - 95 % (nicht kondensierend)
• Farbe: schwarz / grün
• Gewicht: ca. 321 g
• Maße (LxBxH): ca. 185 x 100 x 80 mm
• Scancodes:
Code 128
Code 39
Interleaved 2 of 5
EAN-8 / EAN-13
ISBN - 13
Data Matrix
Micro PDF417
Micro QR
PDF417
QR Code
• Unterstütze Sprachen:
Deutsch, Französisch, Spanisch, Italienisch, Belgisch
Englisch, Schweizer Deutsch, Schweizer Französisch
Ungarisch, Tschechisch, Polnisch, Norwegisch
Systemvoraussetzungen
• Android 14.0 oder höher
• iPad Pro (3. Generation) oder höher
• Mac OS 14.5 oder höher
• Windows 10/10-64/11
• Bluetooth Standard 4.1 oder höher
• PC oder Notebook mit einem freien USB Typ-A Port für Dongle
Packungsinhalt
• Barcode Scanner
• Ladestation
• Bedienungsanleitung
Deutsch
Safety instructions
• Protect the product against moisture
• Protect the product against direct sunlight
• Do not look directly into the LED diode of the scanner
Battery charging
You can charge the scanner's battery using the charging station. To do this, place
the scanner in the device.
Beep sounds
One long beep Scanner is activated
One short beep Bluetooth connection is established
Two short beeps The scanner successfully reads a conguration
barcode.
Two long beeps Bluetooth connection disconnected
Three short beeps a) The scanner reads a barcode although it is not
connected.
b) The scanner reads an unexpected barcode during
conguration. (Scan [ABORT] to cancel and restart)
Two long beeps Out of range / Bad connection
7 short beeps Device switches o
Reset scanner to factory settings
Connect with Bluetooth
To connect the device to Bluetooth, start the scanner and press and hold the
yellow button for 8 seconds. A vibration and a beep indicate that the scanner is
now ready for connection.
Scan the barcode below and turn on the Bluetooth on your smartphone, notebook
or tablet.
Now connect to "Barcode Scanner HID". If the connection was successful, you will
hear a short tone.
Change name of Scanner
You have the possibility to change the name of the scanner via Bluetooth.
You need to generate a name in advance using a barcode generator with the help
of the barcode.
Scan the barcode below
Then scan the barcode you generated to change the name of the scanner.
If you select the code from the example below, the name of the scanner changes
to "Scanner 123".
With the following barcode you can x the name of the scanner
To change the name permanently, you need to turn o the Bluetooth completely,
remove the device from the list, reconnect and add the device again.

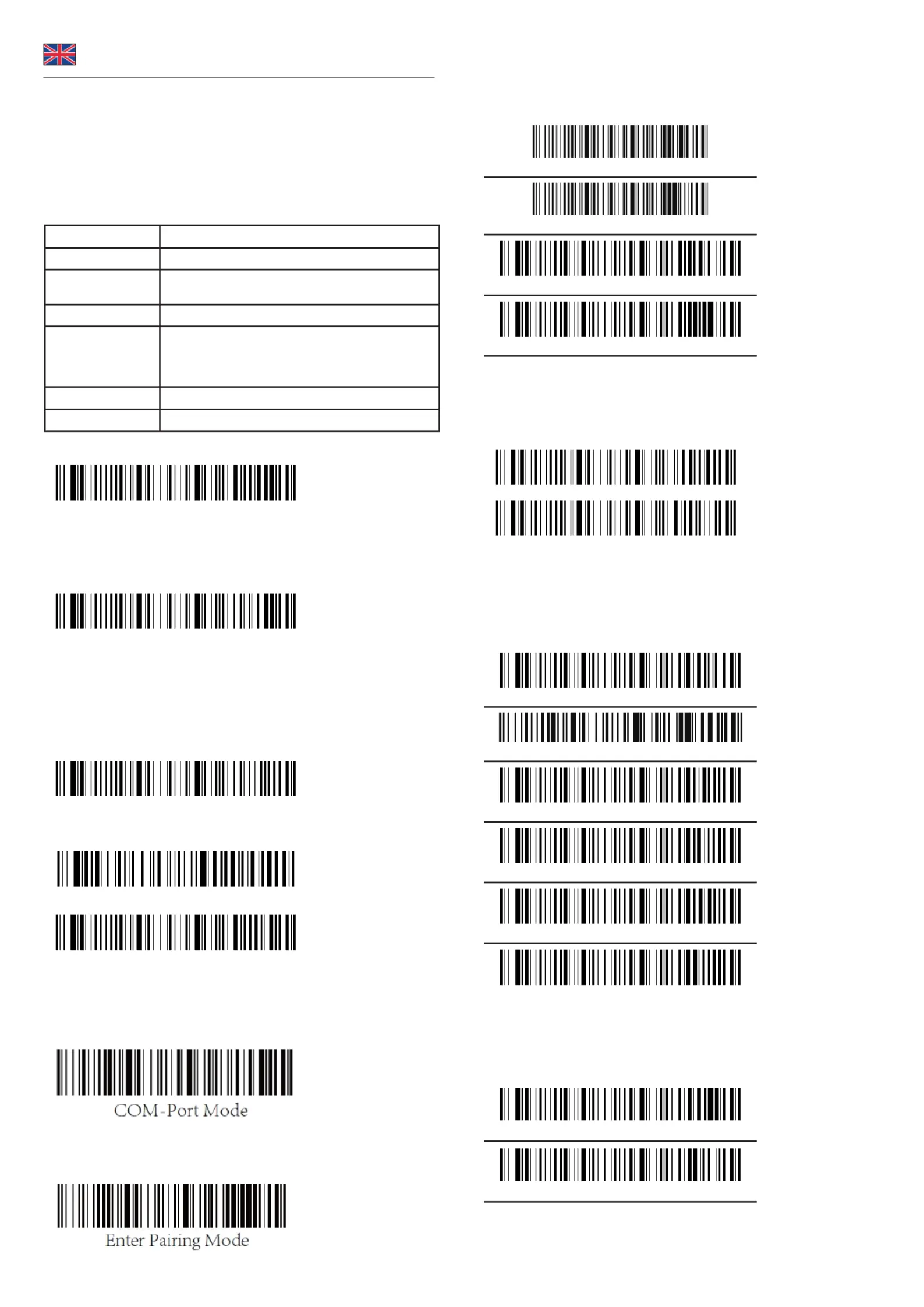

USB Com
To connect the scanner via USB Com mode, please scan the below code to enter
the com port mode.
After this please scan the upcoming code to set the enter pairing mode and plug
the dongle into the USB port afterwards.
If the connection was successful you will hear a beep.
English
Sound and vibration setting
Switch o sound
Switch on sound
Turn o vibration
Turn on vibration
Connect via 433 MHz
Alternatively to Bluetooth, you can connect the scanner to your system via the 433
MHz frequency band.
For this, scan the dongle menu of the scanner
Connect to the dongle with the barcode below
Then plug the cable into the USB socket provided for this purpose. If the
connection was successful you will hear a beep. The blue light shines continuously
Attention: if the scanner enters the matching state and does not successfully pair
up within 1 minute, a double beep is displayed indicating a mismatch and returns
to scan mode
Set standby time
Standby after 1 minute
Standby after 5 minutes
Standby after 10 minutes
Standby after 30 minutes
Never switch to standby mode
Directly switch to standby mode
Change language
The following keyboard languages are only valid for the output via American
keyboard.
German
English
