Seite 1/8

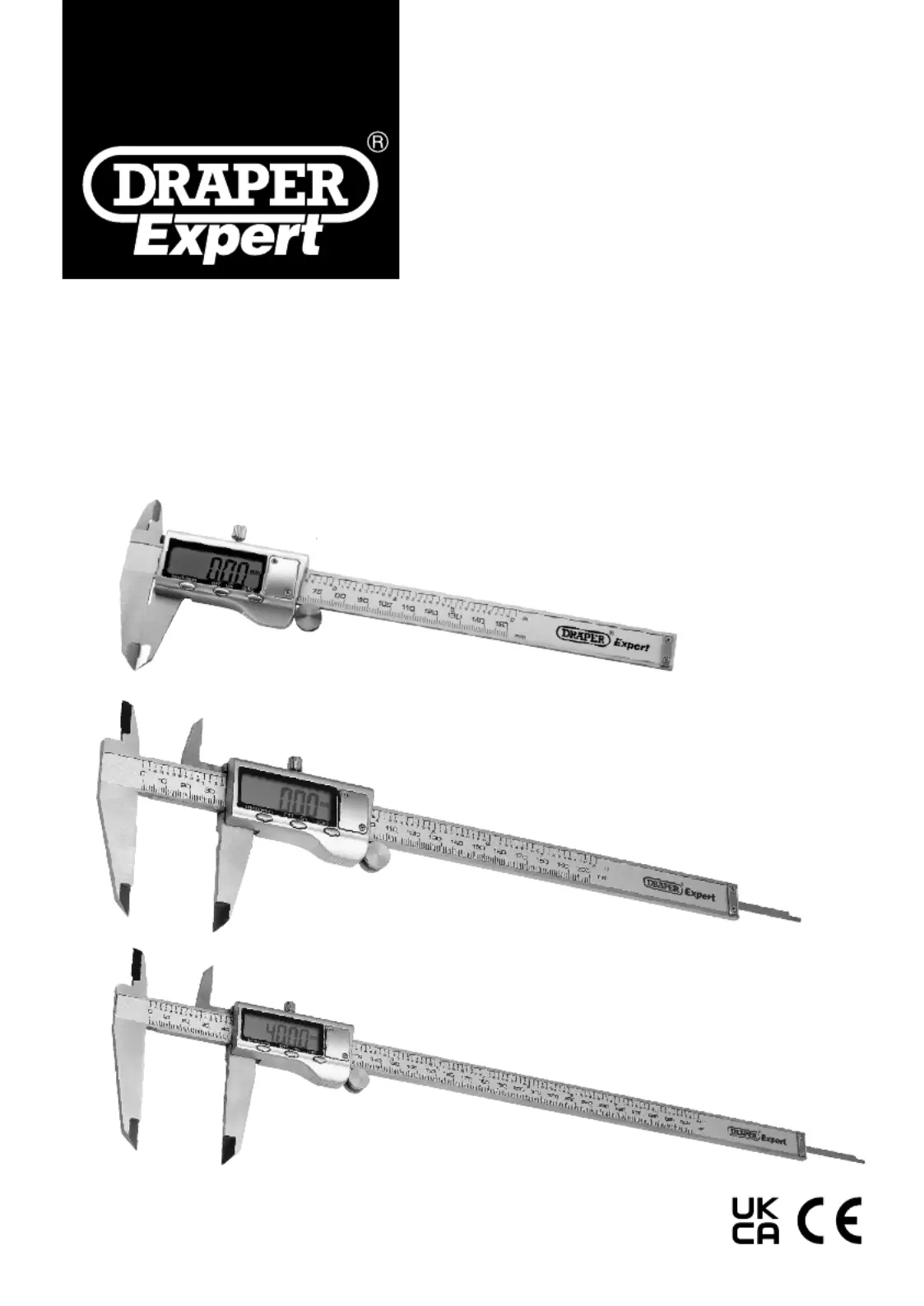

07088, 07089, 80859
80859
07088
07089
EN
Original Instructions
Version 1
August 2024
DIGITAL
CALIPERS
Version 1: August 2024 – First release
Read this manual in full before using this product and retain it for future use. Always use the latest version of the
manual. Please visit for the latest version.drapertools.com/manuals
1. Intended Use
This stainless-steel digital caliper is designed for carrying out external and internal metric and imperial measurements.
Any other application beyond the conditions established for use will be considered misuse. Draper Tools accepts no
responsibility for improper use of this product.
2. Specication
Stock No: 80859 07088 07089
Part No: PDVC150M/B PDVC200M/B PDVC300M/B
Battery Required:
2 x LR44 Alkaline button
cell (1 x tted/1 x spare)
1 x LR44 Alkaline button
cell (supplied not tted )
1 x LR44 Alkaline button
cell (supplied not tted )
Measuring Range: 0 – 150mm/0 – 6” 0 – 200mm/0 – 8” 0 – 300mm/0 – 12”
Resolution: 0.01mm/0.0005” 0.01mm/0.0005” 0.01mm/0.0005”
External Measurement:
Accuracy 0- 50mm +/- 0.02mm +/- 0.02mm +/- 0.02mm
Accuracy 50 – 200mm +/- 0.03mm +/- 0.03mm +/- 0.03mm
Accuracy 200 – 300mm N/A N/A +/-0.04mm
Max. Measuring Speed:
3m/sec
120”/sec
3m/sec
120”/sec
3m/sec
120”/sec
Operating Temperature: 0 to 40°C 0 to 40°C 0 to 40°C
Storage Temperature: -20 to 70°C -20 to 70°C -20 to 70°C
Auto Shutdown (approx.): 5min 30secs 5min 5min
– 2 –
3. HealthandSafetyInformation
Important: Read all the Health and Safety instructions
before attempting to operate, maintain or repair this
product. Failure to follow these instructions may result in
injury or damage to the user or the product.
3.1GeneralHealth&SafetyPrecautions
• DO NOT use the caliper if damaged.
• DO NOT use this device for any purpose other than for
which it is designed.
• DO NOT use in damp or wet locations or areas where
there is condensation.
• DO NOT dip or submerge the caliper in any type of
liquid.
• DO NOT expose to bright sunlight or dust.
• DO NOT disassemble the caliper. It must be checked
by qualied service personnel only.
• DO NOT apply any voltage to the caliper.
• The caliper is a precision instrument, treat with care,
avoid using force and do not subject to knocks or
shocks or damage or scratch the scale surface.
3.2ButtonBatteryHealth&Safety
BATTERY WARNING!
KEEP OUT OF REACH OF CHILDREN
• If the battery compartment does not close securely,
stop using the product and keep it away from
children.
• If you think batteries might have been swallowed or
placed in any part of the body, seek immediate
medical attention.
Battery swallowed - No obvious symptoms
• Unfortunately, it is not obvious and there are no
specic symptoms when a button or coin battery is
stuck in a child’s oesophagus (food pipe).
The child might:
− cough, gag or droll alot;
− appear to have a stomach upset or virus;
− be sick;
− point to their throat or stomach;
− have a pain in their abdomen, chest or throat;
− be tired or lethargic;
− be quieter or more clingy than usual or ‘not
themselves’;
− loss of appetite or reduced appetite; and
− not wanting to eat solid food/be unable to eat
solid food.
• These sorts of symptoms will vary or uctuate, as
the pain increases or subsides.
• A specic symptom to button or coin battery
ingestion is vomiting fresh bright red blood. If the
child does this seek immediate medical help.
• The lack of clear symptoms is why it is important to
be vigilant with ‘at’ or spare button or coin batteries
in the home and the product that contains them.
– 3 –
