DIN RDS4 (72004)
Visit the ENTTEC website for the latest version.
..
USER MANUAL
1 |
ID: 5928467
Document Updated: April 2021
DIN RDS4 – User Manual

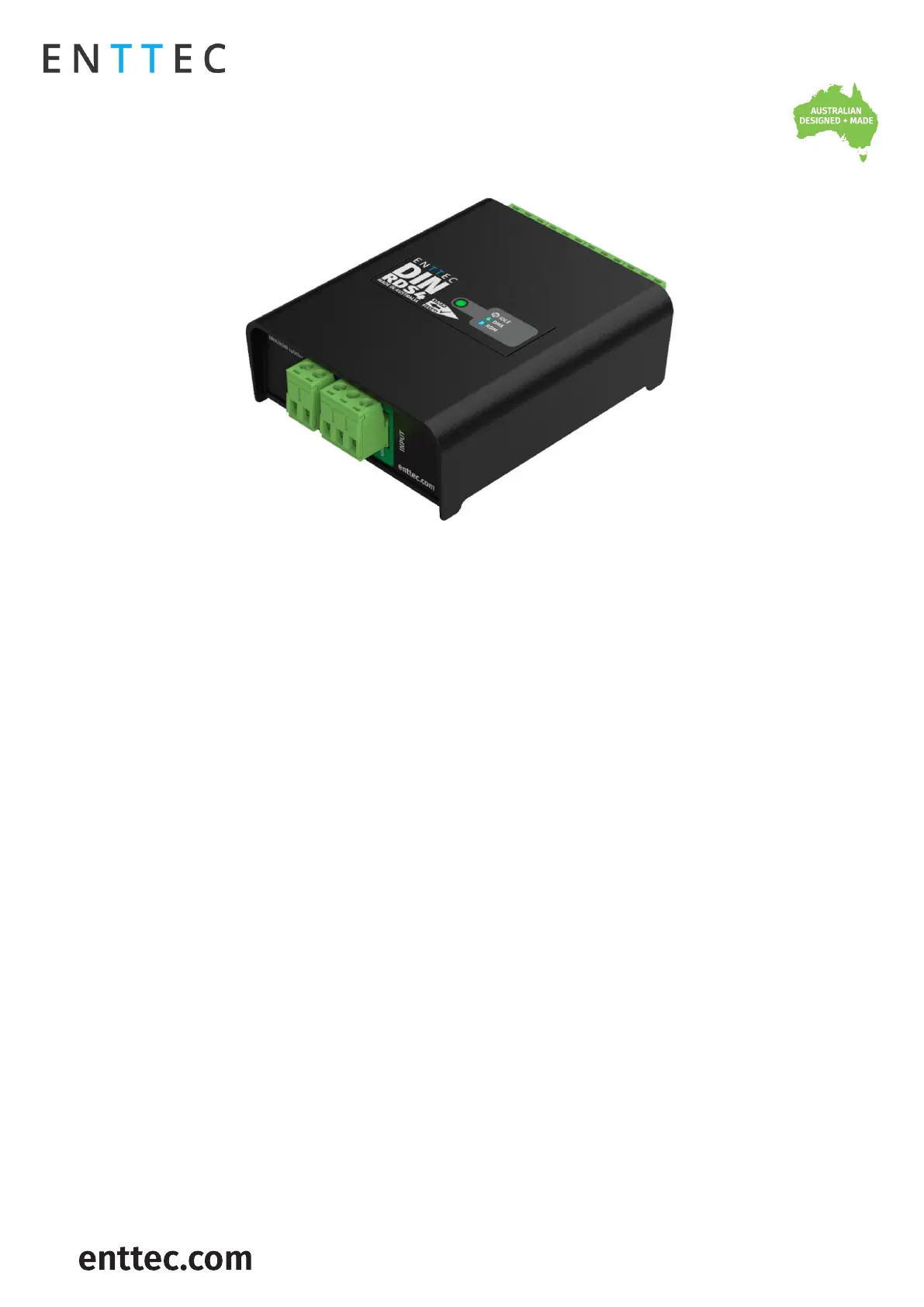

4 way DMX/RDM splitter in compact 4-module DIN-rail form factor.
ENTTEC’s DIN RDS4 is a robust, reliable installation
grade 4 port DMX & RDM Isolated splitter engineered
to take any architectural, commercial or
entertainment project to the next level.
Use the DIN RDS4 to turn one DMX feed into 4,
eliminating the need to create long, complex DMX
chains. Each port is the beginning of a new chain.
Multiple RDS4’s can be chained together to create
as many outputs as you need.
1500V isolation between the DMX input, outputs and
between any individual port protects your DMX
source from power surges on the DMX line alongside
blocking stray voltage from crossing to other DMX
chains.
The DIN RDS4 is packed with installer friendly
features including a flexible 7-24VDC power input
range, removable terminal plugs for simple wiring,
and no configuration needed. All housed within a
compact, electrically insulated form factor with
flexible mounting options.
Features
1 DMX/RDM input & 4 DMX/RDM outputs.
Pluggable screw terminal connectors.
Forward facing LED status indicator to view
current DMX/RDM traffic.
Support for DMX512-A and ANSI E1.20 RDM.
Output refresh rate mimics the input.
Electrically insulated case material.
Surface or TS35 DIN rail mount.
No configuration required.
7V-24V DC power input.
1500V Opto-isolation between each DMX port to
protect against stray voltages on the DMX line.
Operating temp: -20°C to 50°C
Din Mount
DIN RDS4 (72004)
Visit the ENTTEC website for the latest version.
..
USER MANUAL
2 |
ID: 5928467
Document Updated: April 2021
Content
Safety ............................................................................................................................................................................................................................ 2
Electrical safety ............................................................................................................................................................................................................................. 2
System Planning and Specification ................................................................................................................................................................................... 3
Protection from Injury During Installation ..................................................................................................................................................................... 3
Installation Safety Guidelines ............................................................................................................................................................................................... 3
Physical Dimensions ............................................................................................................................................................................................. 4
Mounting Options ................................................................................................................................................................................................... 4
Wiring Diagrams ...................................................................................................................................................................................................... 5
Functional features ...............................................................................................................................................................................................6
1>4 Splitter ...................................................................................................................................................................................................................................... 6
RDM (ANSI E1.20)........................................................................................................................................................................................................................... 6
Hardware features .................................................................................................................................................................................................6
LED status indicator ................................................................................................................................................................................................................... 6
Out of the Box ..........................................................................................................................................................................................................6
Screw Terminal Connectors...............................................................................................................................................................................6
Servicing, Inspection & Maintenance ........................................................................................................................................................... 7
Cleaning ............................................................................................................................................................................................................................................ 7
Package Contents .................................................................................................................................................................................................. 8
Ordering Information .......................................................................................................................................................................................... 8
Safety
Ensure you are familiarized with all key information within this guide and other relevant ENTTEC
documentation before specifying, installing, or operating an ENTTEC device. If you are in any doubt about
system safety, or you plan to install ENTTEC device in a configuration that is not covered within this guide,
contact ENTTEC or your ENTTEC supplier for assistance.
ENTTEC’s return to base warranty for this product does not cover damage caused by inappropriate use,
application, or modification to the product.
Electrical safety
This product must be installed in accordance with applicable national and local electrical and
construction codes by a person familiar with the construction and operation of the product and the
hazards involved. Failure to comply with the following installation instructions may result in death or
serious injury.
Do not exceed the ratings and limitations defined in the product datasheet or this document. Exceeding
can cause damage to the device, risk of fire and electrical faults.
Ensure that no part of the installation is or can be connected to power until all connections and work
is complete.
Before applying power to your installation, ensure your installation follows the guidance within this
document. Including checking that all power distribution equipment and cables are in perfect condition
and rated for the current requirements of all connected devices and factor in overhead and verify that
it is appropriately fused and voltage is compatible.
