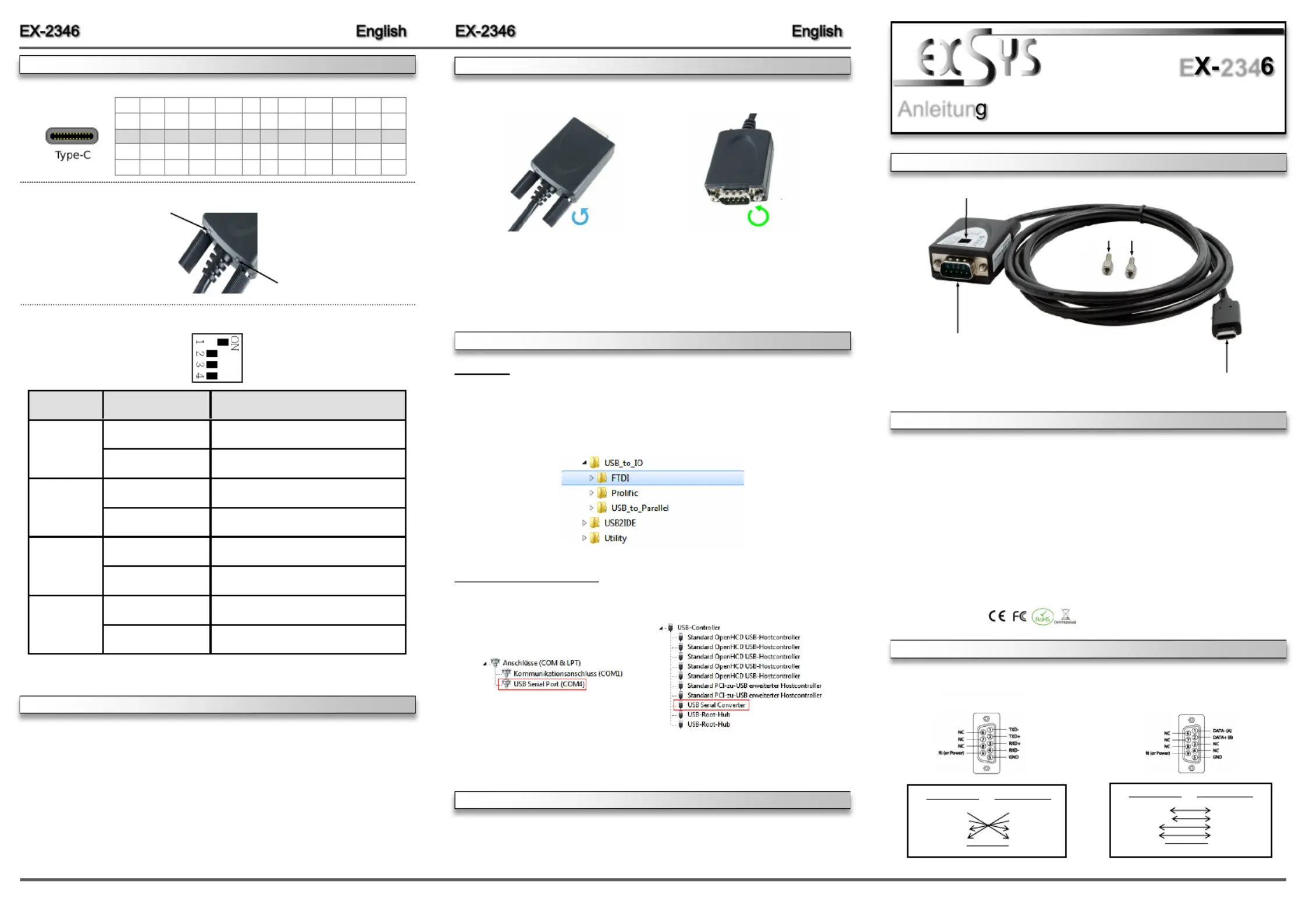

Seite 1/2
6 5
Die EX 2346 ist ein Modul zur Umsetzung von USB 2.0 auf eine RS 422/485 Schnittstelle mit - -
FIFO 16C550 Port für den Anschluss von High Speed seriellen RS 422/485 Peripherie Geräten -
(z.B. Modem, Plotter usw.). Die EX 2346 ist mit einem USB 2.0 C Stecker zum Anschluss an - -
den PC und einem RS 422/485 seriellen 9 Pin Stecker ausgestattet. Das USB Modul ist Hot -
Plug & Play fähig. Für die Einstellungen der I/O Adressen und Interrupts sind keine Jumper und
Einstellungen notwendig, da die Einstellungen automatisch vom System BIOS und bei der
Installation des Betriebssystems vorgenommen werden.
Kompatibilität: USB 1.1, 2.0 & 3.2
Betriebssysteme: Windows 9.x / ME / 2000 / XP / Vista / 7 / 8.x / 10 / 11 / Server 20xx /
Linux / MAC
Lieferumfang: 2346, Adapter 9 Pin Buchse zu 5 Pin Terminal Block, EX-
2x Sechskantmuttern, Treiber CD, Anleitung
Zertifikate:
1
BESCHREIBUNG & TECHNISCHE DATEN
AUFBAU
Anleitun
Vers. 1.1 / 08.12.21
E 234
USB 2.0 C Stecker -
zum Anschluss an PC
S1: 9 Pin Stecker Seriell RS 422/485-
2x Sechskantmuttern
CONNECTORS, STATUS LED S & DIP SWITCH-
DIP Schalter-
HARDWARE INSTALLATION
Because there are large differences between PC s, we can give you only a general installation
guide for the EX-2346. Please refer your computers reference manual whenever in doubt.
1. - - Connect the EX 2346 USB to the USB C Port at the your PC.
2. -If you would like to screw the serial cable to the 9 Pin connector of the EX 2346, then
unscrew the screws (see Picture 1) and screw the supplied hexagon nuts into the holes on
the EX 2346 (see Picture 2). Now you can attach the serial cable to the EX- -2346.
USB 2.0 C Plug:-
Status LEDs:
RXD
TXD
DIP Switch Position Description-
1
ON (Factory Settings) 2 wire RS 485 Mode- -
OFF 4 wire RS 485 or RS 422 Mode - - -
2
ON Reserved for features in future
OFF (Factory Settings) Reserved for features in future
3
ON 120 Ohm TXD Termination Resistor is Enabled
OFF (Factory Settings) 120 Ohm TXD Termination Resistor is Disabled
ON 120 Ohm RXD Termination Resistor is Enabled
4
OFF (Factory Settings) 120 Ohm RXD Termination Resistor is Disabled
DIP Switch:-
DRIVER INSTALLATION
CLEANING
Windows
After the hardware installation Windows will recognize the device automatically and install the
drivers. If the driver shoul not be installed automatically, please insert the Driver CD into your
CD-Rom drive (e.g. Drive D:) and open the folder USB_to_IO/FTDI Please select the folder “.
with your operating system and install the driver (see Picture). Follow the hardware assistant
and finish the installation. Restart your PC in any case after installing the drivers.Important!
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In
the area of the connectors please make sure that no fibres from the cloth remain in the connect-
ors. Attention! Never use a moist or wet cloth for cleaning!
CHECK INSTALLED DRIVER
Open the . Now you should see at >Device manager< Ports (COM & LPT) USB and -
Controller the following new entry:
If you see this or a similar information the device is installed correctly.
Picture 1 Picture 2
Remove the Screws Insert the Hexagon Nuts
3. Now set the DIP-Switch to the desired settings (see figure DIP-Switch on page 2).
4. When you are ready you can start your PC and continue with the point Driver Installation .
HARDWARE INSTALLATION
A12 A11 A10 A9 A8 A7 A6 A5 A4 A3 A2 A1
GND RX2+ RX2 VBUS SBU1 D VBUS TX1 TX1+ GND - - D+ CC1 -
GND TX2+ TX2 VBUS D SBU2 VBUS RX1 RX1+ GND - CC2 D+ - -
B1 B2 B3 B4 B5 B6 B7 B8 B9 B10 B11 B12
ANSCHLÜSSE, STATUS LED S & DIP SCHALTER-
DB 9M RS 422/485 Anschlussbelegung:-
DB9 (EX- 2346) DB9 (Endgerät)
1 TXD 1 TCD- -
2 TXD+ 2 TXD+
3 RXD+ 3 RXD+
4 RXD- 4 RXD-
5 GND 5 GND
DB9 (EX-2346) DB9 (Endgerät)
1 DATA- 1 DATA-
2 DATA+ 2 DATA+
3 NC 3 NC
4 NC 4 NC
5 GND 5 GND
RS- -422 und RS 485 4 Draht Anschlussbelegung-
RS- -485 2 Draht Anschlussbelegung
