ZipClip and Caddy Mounting • Installation

ZipClip 200 and ZipCaddy 200 Mounting

Kit Installation Guide

Getting Started

This manual contains installation instructions for the Extron

ZipClip 200 and ZipCaddy 200 Mounting Kit (part #101-001-01).

The kit consists of two parts: the ZipClip 200 holster that mounts

to the furniture or a rack mount system, and the ZipCaddy

200 Mounting plate that mounts one 1/4 rack or two 3" deep

1/8 rack Extron enclosures. As an option, the ZipCaddy 200

mounting plate may be mounted directly to furniture without

the ZipClip 200 holster

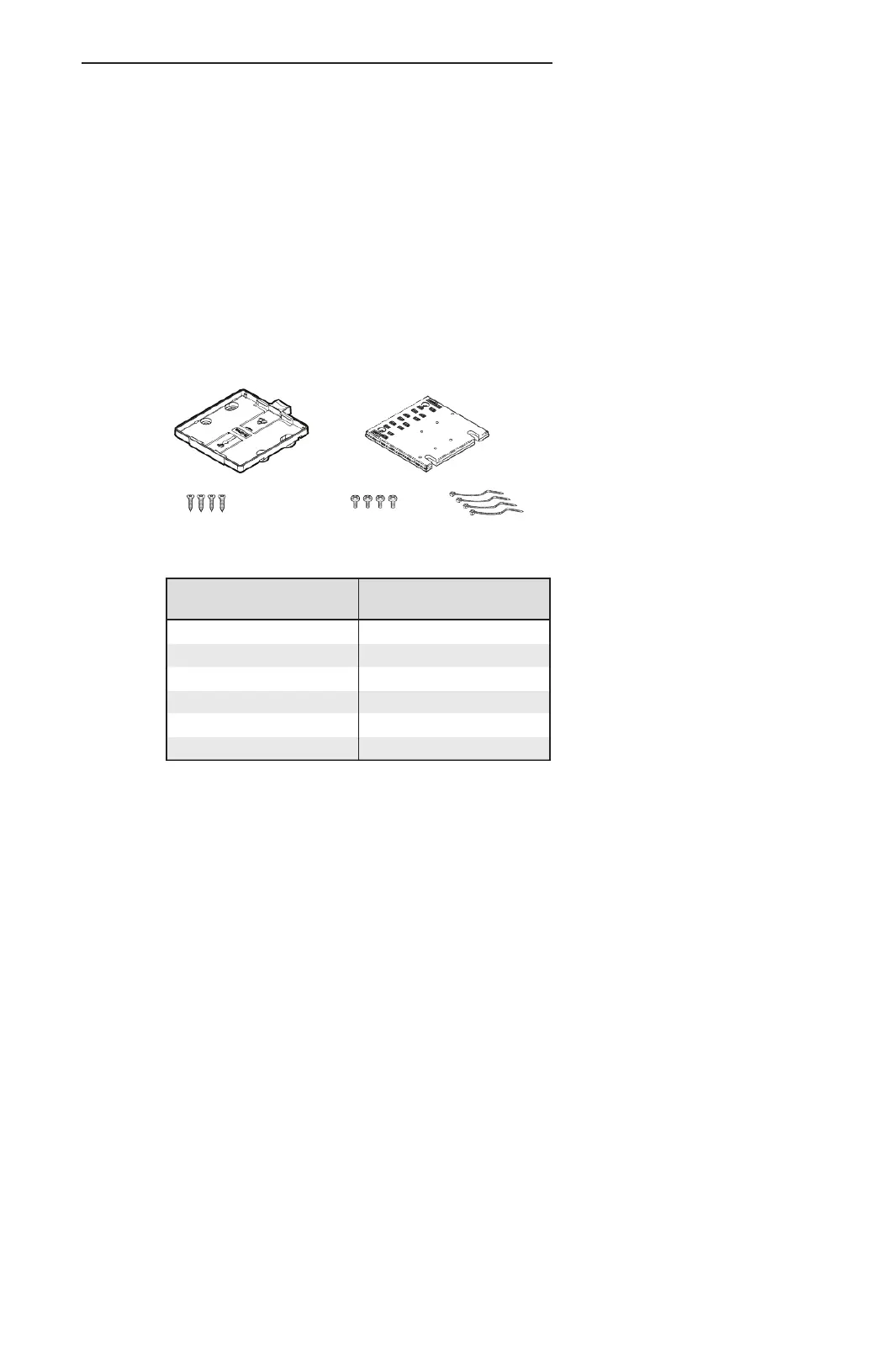

Included Parts

These parts are included in each ZipClip 200 and ZipCaddy 200

Mounting Kit.

Cable Ties (4)

Device Screws (4)

ZipClip 200 ZipCaddy 200

Mounting Self-tapping Screws (4)

Included parts Replacement part

number

(1) ZipClip 200 21-103-01LF

(1) ZipCaddy 200 21-141-01LF

(4) Cable tie wraps 40-007-02LF

(4) Device mounting screws 40-206-01LF

(4) ZipClip mounting screws 40-519-03LF

Installation guide

ZipClip and Caddy Mounting • Installation

Installation, cont’d

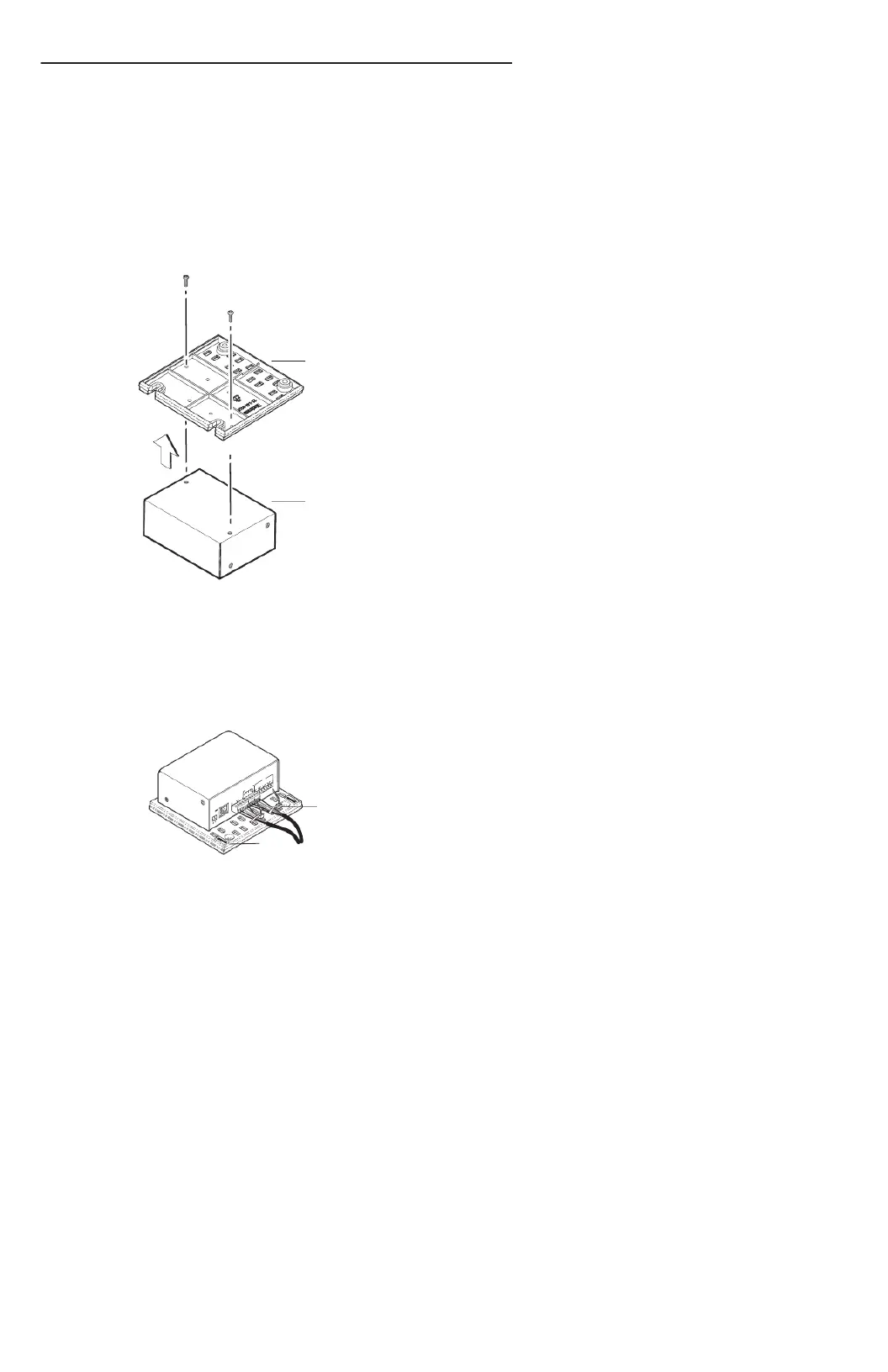

Attaching Device to the ZipCaddy 200

The ZipCaddy 200 can accommodate up to two 1/8 rack, or

a single 1/4 rack, 3" deep product. A single 1/8 rack width

product can also be mounted in the middle of the plate. The

mounting holes on the rack devices align with the mounting

holes on the plate.

The following illustration shows how a 1/4 rack device

mounts to the ZipCaddy 200. Two screws attach the plate

to the bottom of the unit.

ZipCaddy 200

1/4 Rack Device

ZipCaddy 200 mounting example

Securing Cables to the ZipCaddy 200

Cable ties (included) are used to secure the cables to the

ZipCaddy 200 and provide strain relief, as shown below.

Do not overtighten the cable ties. Allow enough slack for

strain relief of the cables.

COM1

COM2

LAN

00-05-A6-xx-xx-xx

POWER

12V

.5A MAX

FLEX I/O

21 34 1

234

SGSG

Cable Tie

Slot

ZipClip and Caddy Mounting • Installation

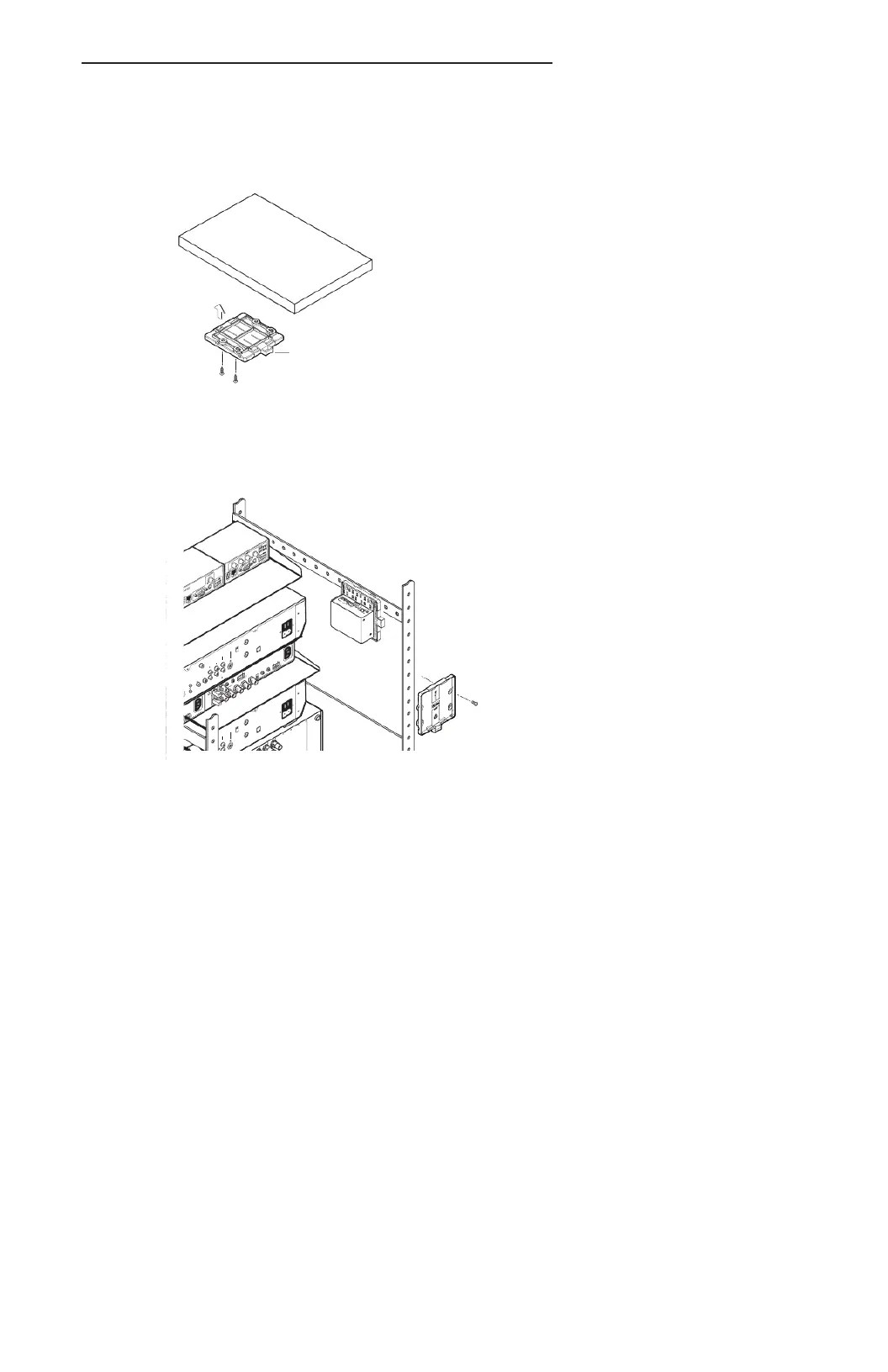

Mounting the ZipClip 200

The diagrams below illustrate how the ZipClip 200

attaches to an under-desk mounting surface using the four

ZipClip 200 mounting screws (included) or to a rack rail.

Quick-release Tab

Under-desk mounting

VIDEO S VIDEO

CH 3

CH 4

VHF/UHF

VHF(SAT)/UHF

OUT

TEL LINE

AC IN

AC OUT

B O

RGB INP

AUDIO

V DEO

AUDIO

LRB

ISOGC SYNC

50/60 Hz

CONTROL S

OUT (MONO)

AUDIO VIDEO S VIDEO CH 3

CH 4

VHF/UHF

VHF(SAT)/UHF

OUT

TEL LINE

AC IN

AC OUT

RF REMOTE

AUDIO 3

OUT

ZipClip 200

COM1

COM2

LAN

00-05-A6-xx-xx-xx

POWER

12V

.5A MAX

FLEX I/O

21 3 4 1

SGSG

Back of Rack

Side of Rack

Rack Rail Mounting

Produktspezifikationen

Marke:	Extron
Kategorie:	Nicht kategorisiert
Modell:	ZipClip 200
Breite:	116 mm
Tiefe:	15 mm
Gewicht:	100 g
Produktfarbe:	Schwarz
Höhe:	135 mm
Material:	Kunststoff
Verpackungsbreite:	305 mm
Verpackungstiefe:	394 mm
Verpackungshöhe:	102 mm
Paketgewicht:	1370 g
