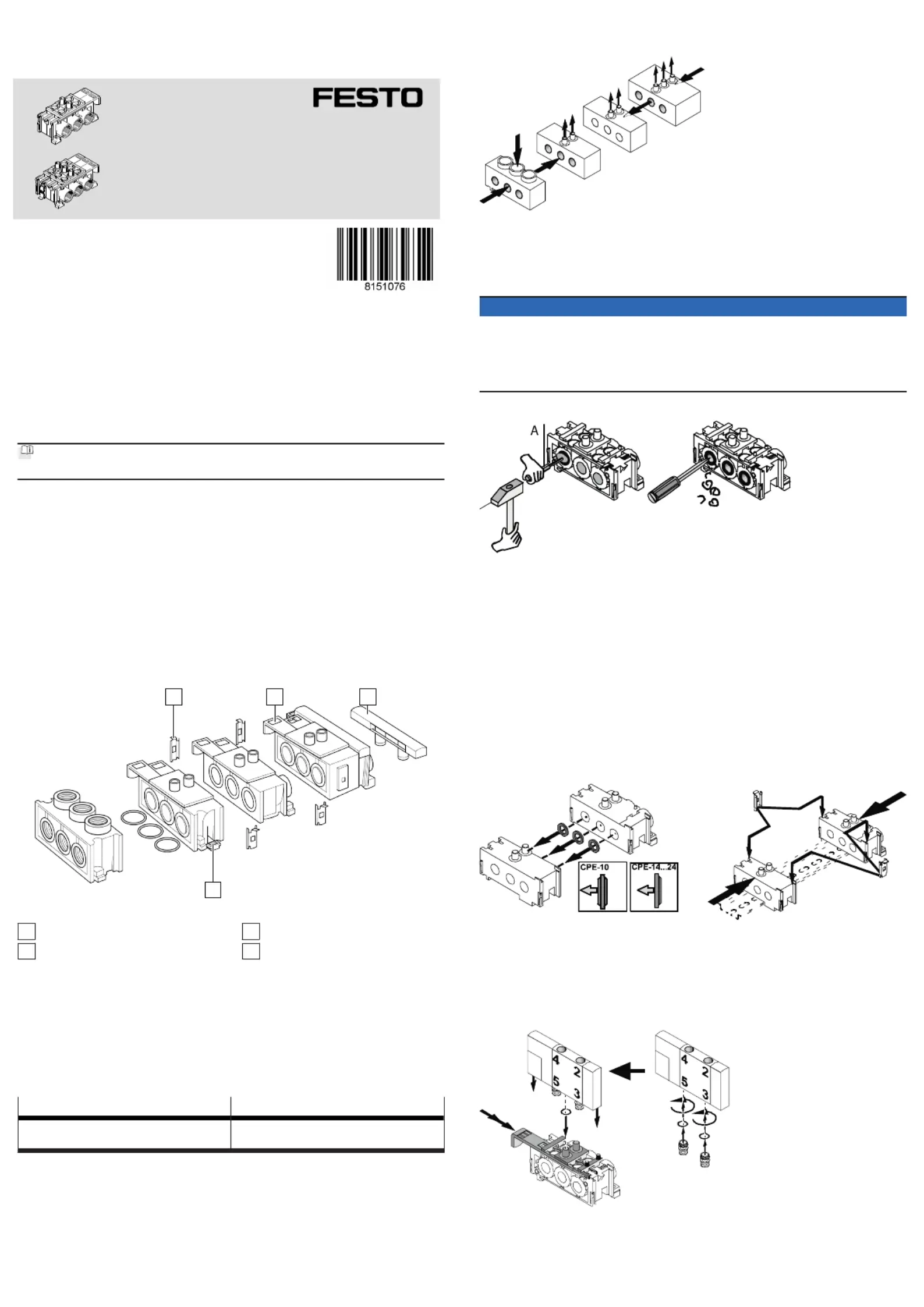

Operating instructions

8151076

2021-03g

[8151078]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

2Safety

Safety instructions

Only use the product in original status without unauthorised modifications.

Intended use

The manifold blocks CPE...- PRS connect directional control valves to central

supply ports and are intended for wall or H-rail mounting.

3

Additional information

–Accessories

è

www.festo.com/catalogue.

4

Product overview

Structure

1

23

4

Fig.1

1

Connecting component

2

Valve spool

3

Blind plate

4

Mounting slide

Function

The manifold block CPE...-PRSG-2/-3 (double or triple) connects type CPE 5/2- or

5/3-way valves to central supply ports.

Two additional valves can be supplied with the help of the extension plate CPE...-

PRS-2.

The end plate CPE...-PRS-EP can be used to create different pressure zones or a

two-sided compressed-air supply.

The maximum configuration level is:

6 valves12 valves

–

with one-sided compressed-air supply or

–for every pressure zone

–

with two-sided compressed-air supply

Tab. 1

The CPE-...-PRSO-... have the diaphragms removed.

5Assembly

Preparation

Fig.2

1.Place all manifold blocks in their assembly sequence.

2.Trace the pressure curve, e.g. with a sketch.

When using multiple pressure zones:

NOTICE

•Make sure that the diaphragms at the interface of two pressure zones remain

intact.

Pressed-in diaphragms cannot be closed again. In doing so, consider

removing the diaphragms of the compressed air ducts for an unobstructed

flow rate.

Removing unused diaphragms:

Fig.3

1.

Press in the 3 diaphragms of the compressed air ducts on the manifold block

from the outside inwards in accordance with the pressure curve sketch using

a punch (A)

2.

Deburr fracture margins and

3.

Remove chips.

This time-saving method of operation results in irregular broken edges compared

to precision machining.

Assembly

H-rail mounting:

1.

Place all manifold blocks on the H-rail in accordance with the assembly

sequence.

2.

Press the manifold blocks on the H-rail until the mounting slides engage.5

Linking manifold blocks:

Fig.4

1.

Place one sealing ring each between each of the three compressed air ducts

and press the manifold blocks together.

2.

Push a connecting component onto the rail shown on both sides until it1

clicks into place.

Mounting the CPE valves:

Fig.5

1.Insert all valve spools up to the first detent.2

2.

Place a seal on every compressed air outlet.
