Translation of the original instructions

Hiperface

®

is a registered trademark of its respective trademark holder in certain

countries.

1About this document

1.1Applicable documents

All available documents for the product www.festo.com/pk.è

User documentation

Name, type

Hiperface description, description of the Hiperface interface

1)

Implementation Manual Hiperface Safety

1)

Operating instructions SKM36S Stand-Alone

1)

Documentation for the motor controller used

Assembly instructions for the attachment elements

1) when using variants EMME-AS-…-AMX…; documentation provided by SICKAG www.sick.comè

Tab. 1 Documentation for EMME-AS

1.2Product version

This documentation describes the following product versions:

EMME-AS-...Product version

...-AS/ASBSingle-turn encoder for position monitoring

...-AM/AMBMulti-turn encoder for position monitoring

...-AMX...Safety multi-turn encoder for position monitoring

...-A...BHolding brake

EMGA ( 3 Additional information)Gear unitè

Tab. 2 Product version

1.3Specified standards

Version

EN61800-5-2:2007-10ENISO13849-1 + A1:2008-06

EN62061:2005-04EN60034-1:2010-10

Tab. 3 Standards specified in the document

2Safety

2.1Safety instructions

–Observe labelling on the product.

–Prior to assembly, installation and maintenance work: Switch off power sup-

ply, ensure that it is off and secure it against being switched back on.

–Store the product in a cool, dry, UV-protected and corrosion-protected envir-

onment. Ensure that storage times are kept to a minimum.

–Observe tightening torques. Unless otherwise specified, the tolerance

is±20%.

2.2Intended use

The motor is intended to be used for driving positioning systems.

NOTICE!

Die Varianten EMME-AS-…-AMX… mit sicher angebautem Encoder SKM36S

derFirma SICK sind als sicherheitsrelevantes Teil von Steuerungen geeignet.

The maximum operating life T

M

of the encoder in accordance with

ENISO13849-1+A1 is 20years.

2.3Foreseeable misuse

The holding brake must not be used for braking the motor.

2.4Training of skilled personnel

Installation, commissioning, maintenance and disassembly should only be con-

ducted by qualified personnel.

The personnel must be familiar with the installation of mechatronic control sys-

tems.

2.5Area of application and approvals

In combination with the UL inspection mark on the product, the information in this

section must also be observed in order to comply with the certification conditions

of Underwriters Laboratories Inc. (UL) for USA and Canada.

UL approval information

Product categoryPRHZ2 (USA) or PRHZ8 (Canada)

File numberE342973

Standards taken into accountUL 1004-1/-6, C22.2 No.100

UL inspection mark

Tab. 4 Approval information

3Additional information

–Accessories www.festo.com/catalogue.è

4Service

Contact your regional Festo contact person if you have technical questions

èwww.festo.com.

5Product overview

5.1Function

The product is a permanently excited, electrodynamic, brushless servo motor. The

motor is equipped with an encoder. The encoder supplies motor data, speed and

position signals to a higher-order servo drive/motor controller in the form of digit-

al signals.

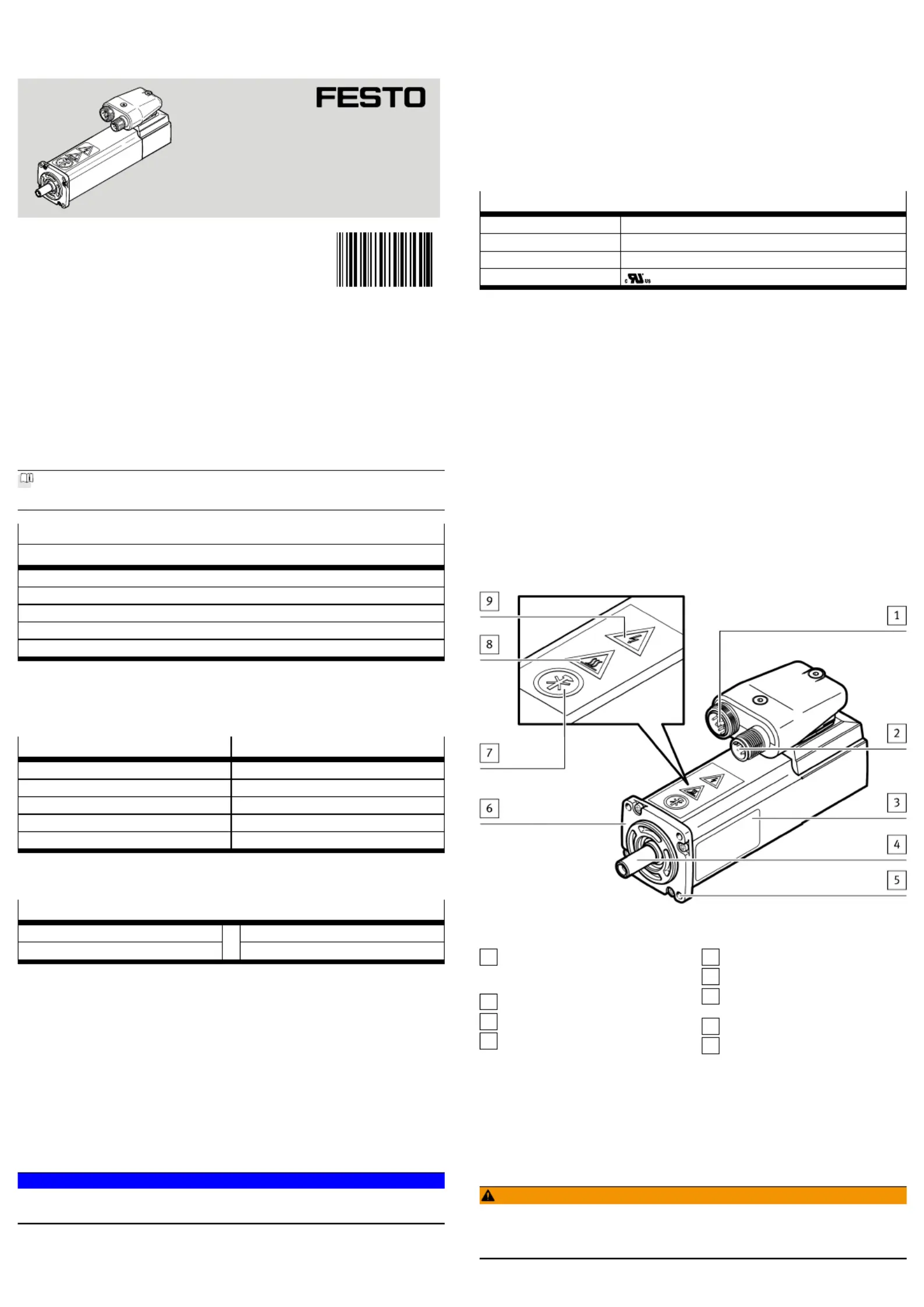

5.2Product design

1

Electrical connection: motor, hold-

ing brake (only with EMME-...-

A...B)

2

Electrical connection: encoder

3

Product labelling

4

Motor shaft

5

Through-hole for mounting

6

Motor flange

7

Note: mechanical knocks not per-

mitted

8

Warning: hot surface

9

Warning: dangerous electrical

voltage

Fig. 1 Product design of the EMME-AS (example EMME-AS-40-M)

6Transport

Take product weight into account www.festo.com/pk.è

7Mounting

7.1Installation

WARNING!

Risk of injury due to unexpected movement of components.

•Bring moving parts of the connected mechanical system into a secure posi-

tion (e.g.move into the lower end position).

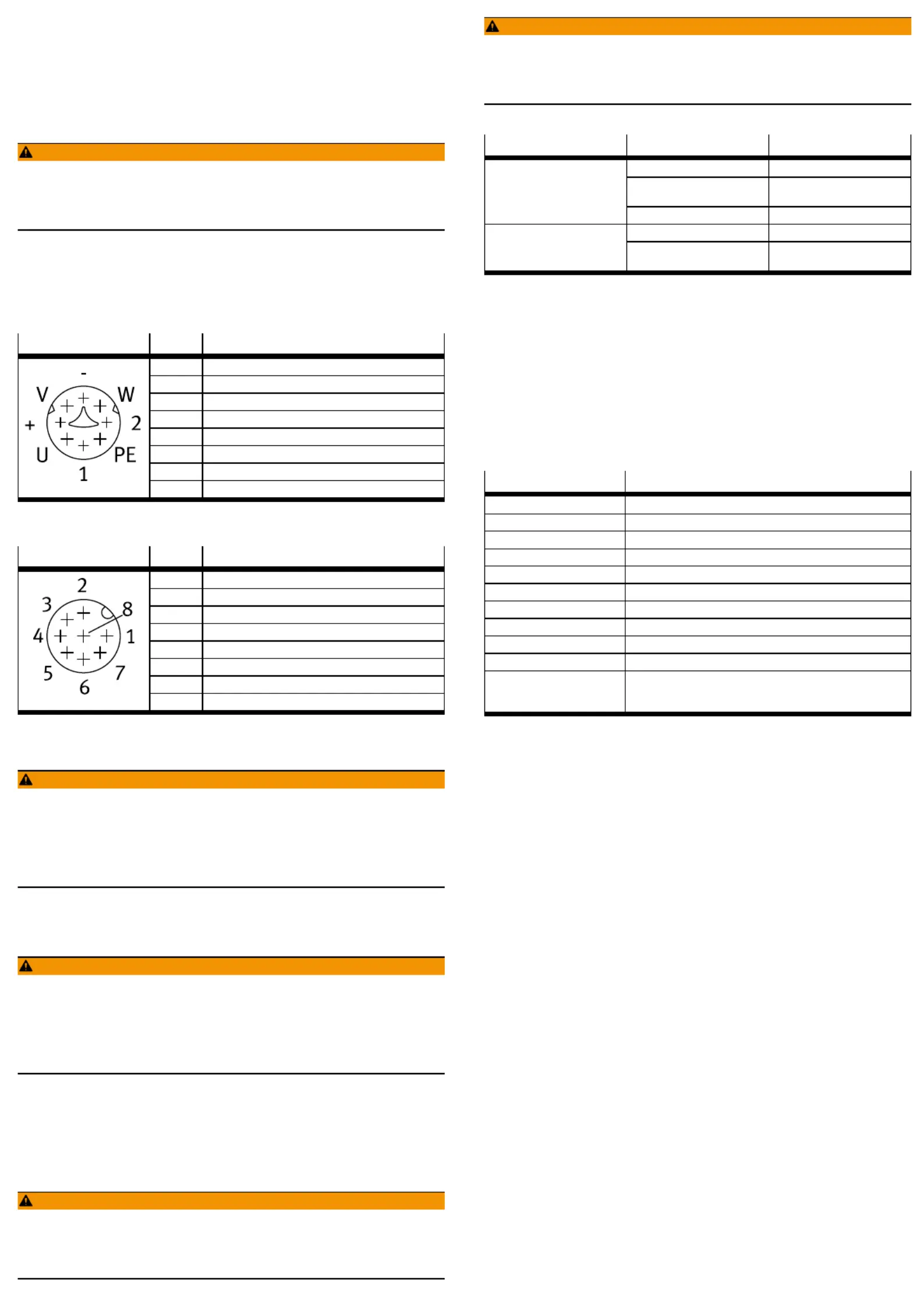

8104305

EMME-AS

Servo motor

8104305

2019-01c

[8104307]

Instructions| Operating

Festo SE & Co. KG

Ruiter Straße 82

73734 Esslingen

Germany

+49 711 347-0

www.festo.com
