Operating instructions

8159550

2021-09d

[8159552]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

DocumentsProductTable of contents

Operating instructionsShock absorber DYSS-G8–

Operating instructionsShock absorber DYEF-G8–

Tab. 1

2Safety

2.1

Safety instructions

–Only use the product in its original condition without unauthorised modifica-

tions.

–

Take into account the ambient conditions at the location of use.

–Observe the identifications on the product.

–

Store the product in a cool, dry environment protected from UV and corrosion.

Keep storage times short.

–Before working on the product, switch off the compressed air supply and lock it

to prevent it from being switched on again.

2.2

Intended use

The product is intended for the space-saving transport of masses. The product is

approved for slide operating mode.

Fig.1

2.3Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have skills and

experience in dealing with pneumatic (open-loop) control technology.

3Additional information

–

Contact the regional Festo contact if you have technical problems

è

www.festo.com.

–

Accessories and spare parts

è

www.festo.com/catalogue.

4Function

The product is a non-rotating twin-piston drive with bearing guide.

The slide is moved back and forth by alternate pressurisation of the supply ports.

The slide is braked at the end position by shock absorbers.

5Product design

12345

6

78910

Fig.2

1

Centring

2

Thread for mounting the payload

3

Slide

4

Shock absorber with threaded

sleeve

5

Drilled holes for mounting the

mini slide from above

6

Slot for proximity switch

7

Thread for mounting the mini

slide (concealed underneath)

8

Supply port (advance)

9

Supply port (retract)

10

Thread with centring hole for

mounting the payload

6

Transport

NOTICE

Unexpected and unbraked movement of components

•Secure moving components for transport.

1.

Take product weight into account

è

11 Technical data.

2.

Maintain the support clearance of 300 mm when attaching transportation£

equipment.

7

Assembly

7.1Preparation

–

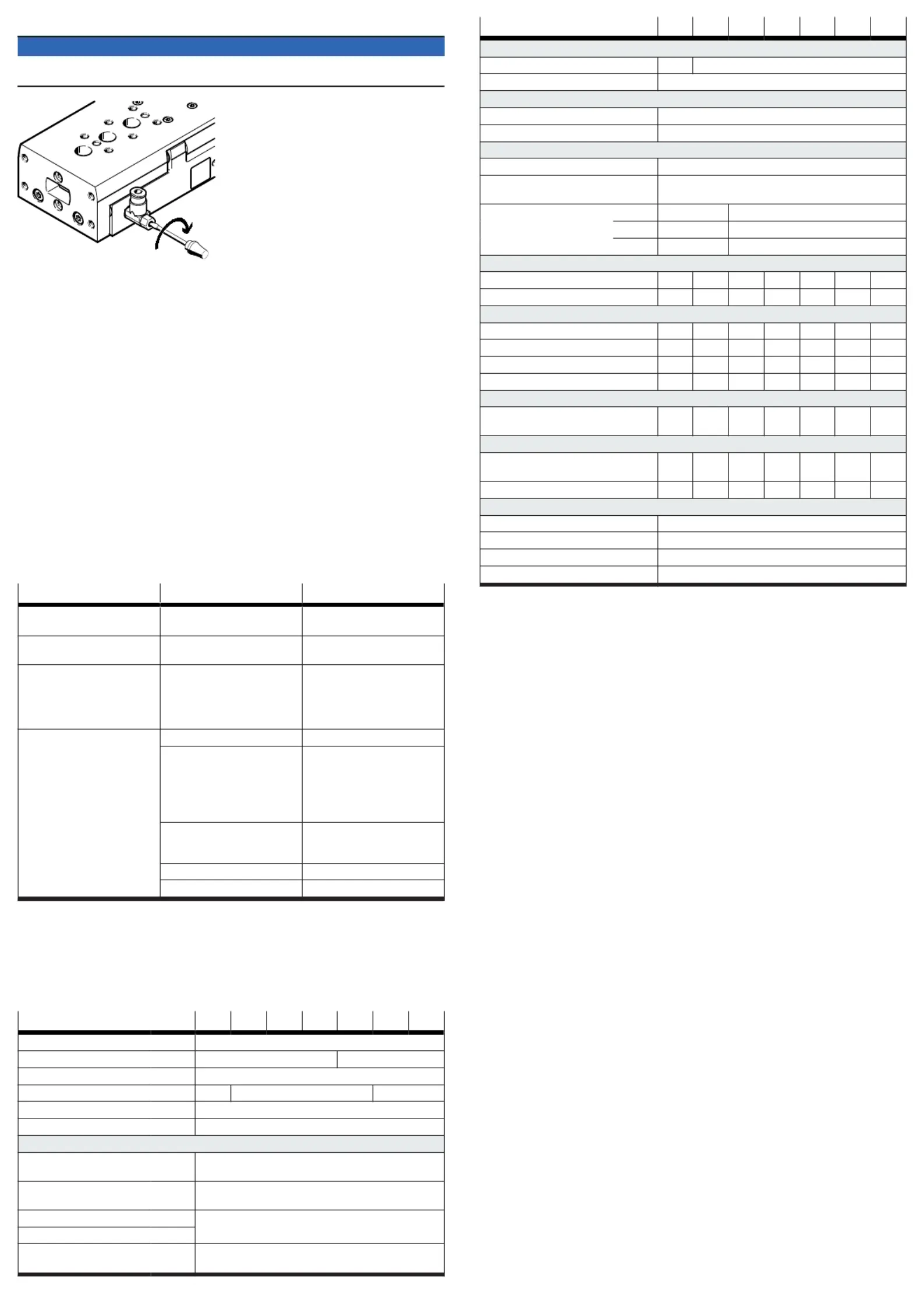

Position the product to ensure that the operating elements are accessible,

e.g. the clamping components for the shock absorbers.

–Mount the product without torsional stresses.

–

Mount the product on a mounting surface with a flatness of 0.05% of the stroke

length, but max. 0.1 mm.

–If necessary: select the mounting components or the accessories. The centring

sleeves are not included in the scope of delivery.

To prevent collisions: mount the mounting components outside the positioning

range.

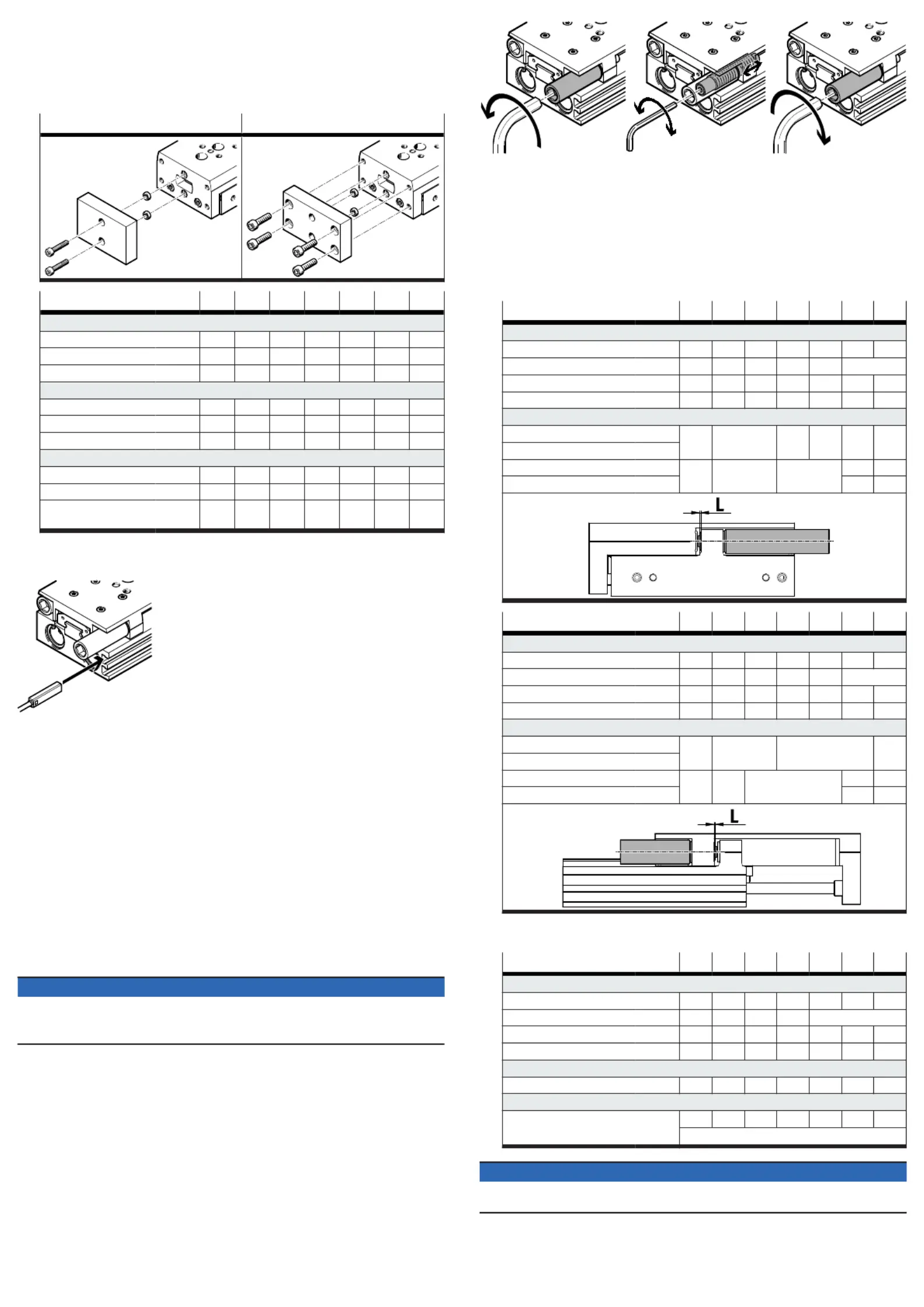

7.2Mounting mini slide

1.

Mount drive ensuring that the minimum number of screws is used.

Direct fasteningThrough-hole mounting

2.Tighten screws evenly.

DGST-6-8-10-12-16-20-25

Minimum number of screws dependent on the stroke

10 150[mm]2222222…

200[mm]–3

Direct fastening

ScrewM4M4M5M5M6M8M8

Centring [H7][mm]557791212

Through-hole mounting

ScrewM3M3M4M4M5M6M6

Centring [H7][mm]557791212
