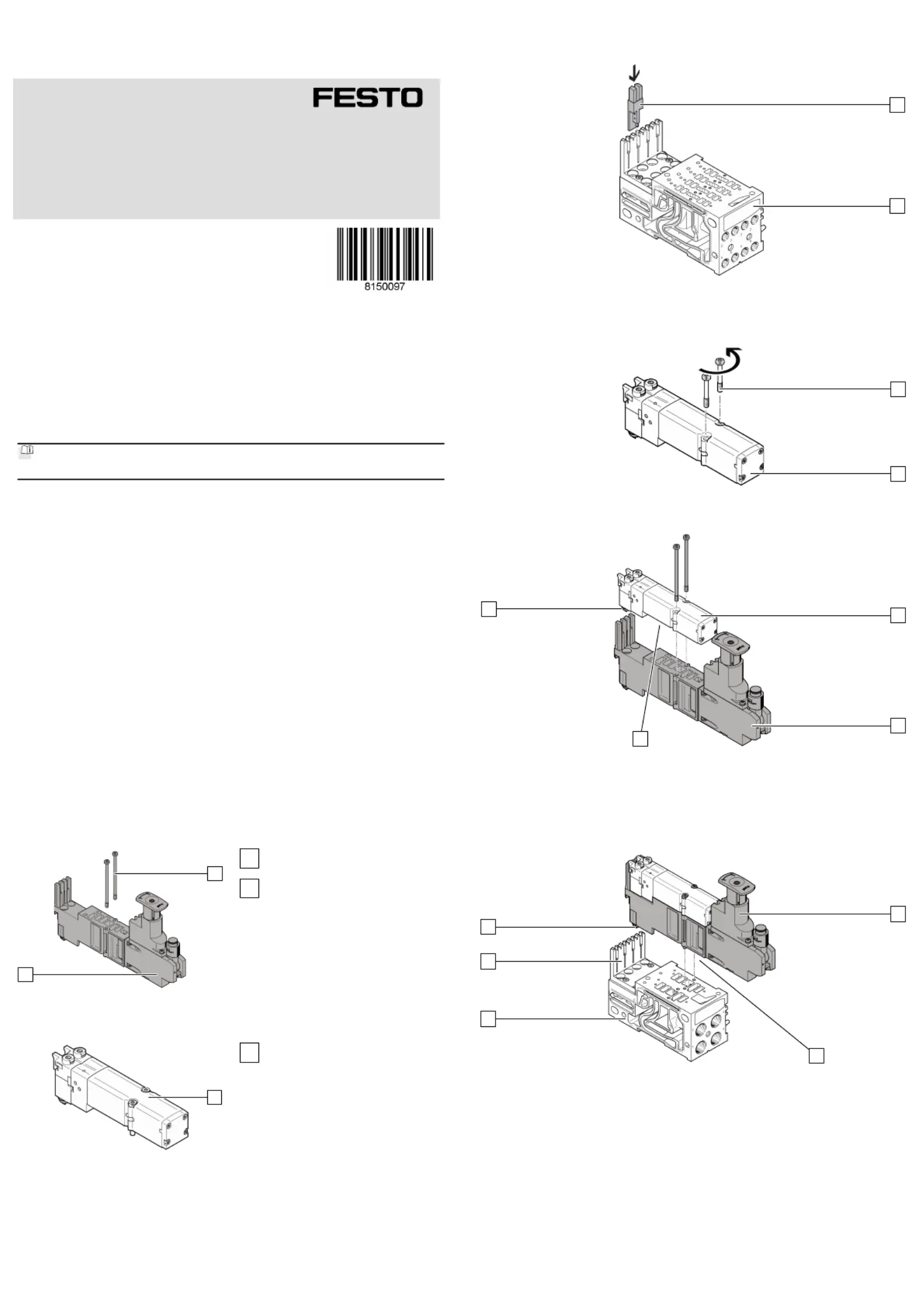

Assembly instructions

8150097

2021-08d

[8150099]

Translation of the original instructions

© 2021 all rights reserved to Festo SE & Co. KG

1

Applicable documents

All available documents for the product

è

www.festo.com/sp.

2Safety

2.1Safety instructions

–

Only use the product in its original condition without unauthorised modifica-

tions.

–

Only use the product if it is in perfect technical condition.

–

Before working on the product, switch off the compressed air supply and lock it

to prevent it from being switched on again.

2.2Intended use

The regulator plate regulates the operating pressure or working pressure of the

solenoid valves.

2.3

Training of qualified personnel

Work on the product may only be carried out by qualified personnel who can

evaluate the work and detect dangers. The qualified personnel have knowledge

and experience in pneumatics.

3Additional information

–

Contact the regional Festo contact if you have technical problems

è

www.festo.com.

4Product Range Overview

4.1Scope of delivery

1

2

Fig.1

1

Regulator plate (1x)

VMPA...-B8-R...

2

Screw (2x)

4.2Not in scope of delivery

3

Fig.2

3

Solenoid valve (1x)

VMPA...-M1H-...-PI

5Assembly

5.1Preparation for VMPA1-B8-R... and VMPA14-B8-R...

4

5

Fig.3

•Push the fibre optic cable extension onto the electronics module .45

5.2Assembly

3

6

Fig.4

•

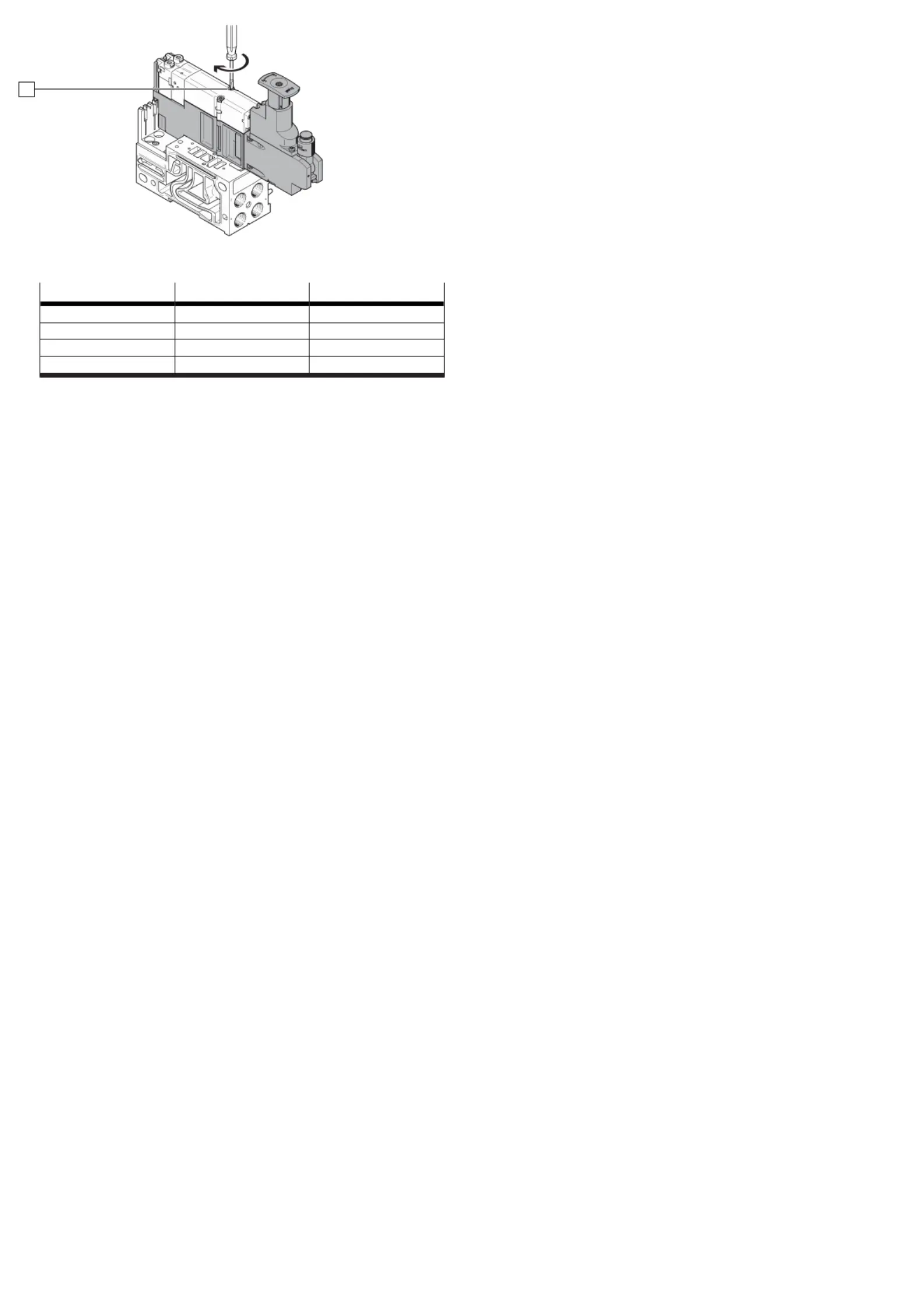

Unscrew the captive screws of the solenoid valve .63

1

3

7

8

Fig.5

1.

Check that the conical ring seal is positioned correctly.7

Ä

The tapered side is at the bottom

2.

Check that the seal is positioned correctly.8

Ä

The seal is in the slot of the solenoid valve 3

3.Place the solenoid valve on the regulator plate .31

1

5

9

10

11

Fig.6

1.Check that the conical ring seal is positioned correctly.9

Ä

The tapered side is at the bottom

2.Check that the seal is positioned correctly.aJ

Ä

The seal is in the slot of the regulator plate 1

3.Place the regulator plate on the electronics module .1aA
