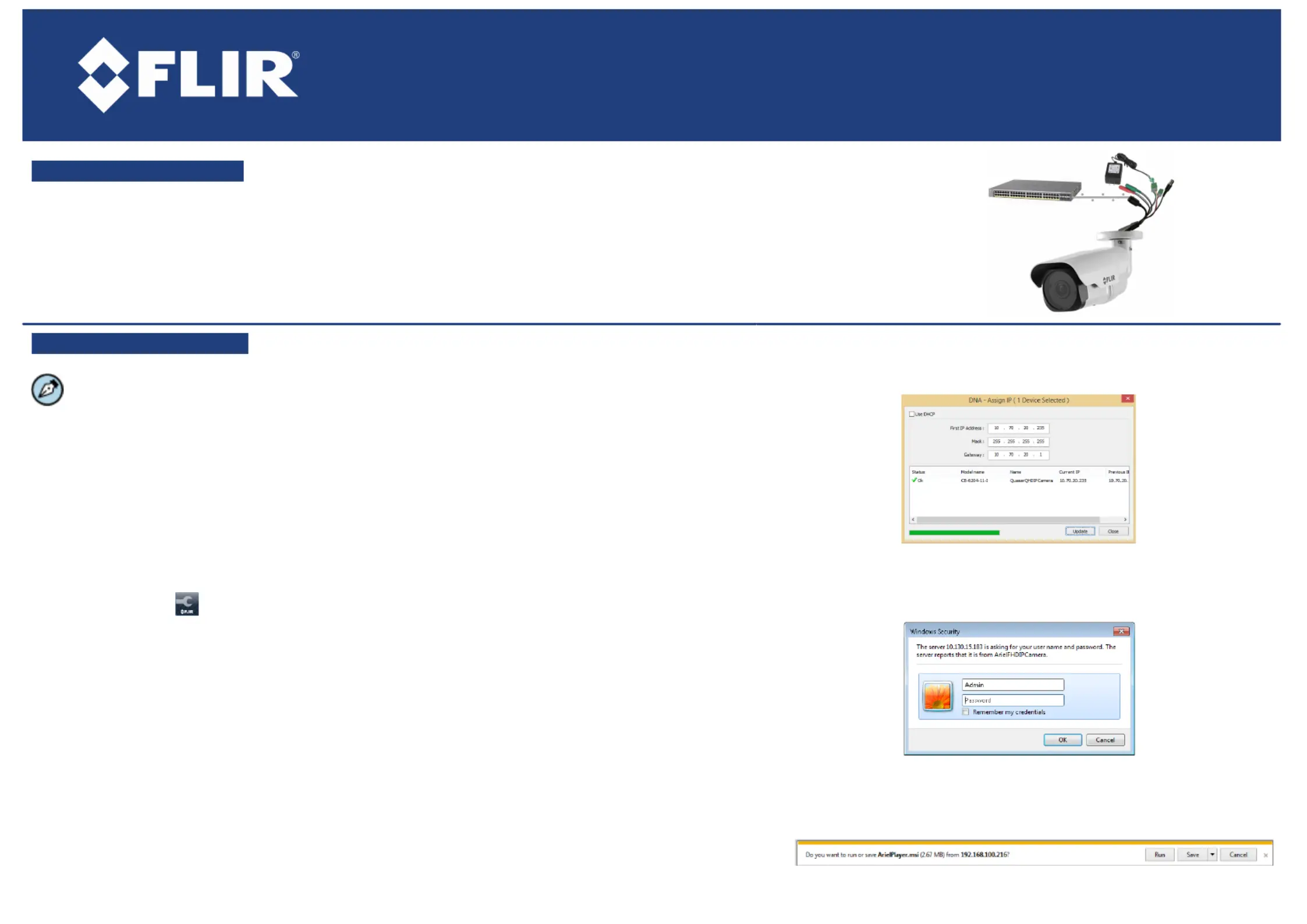

Quick Install Guide

ioi HD

CB-5222

Analytic Bullet IP Camera

A. Connect the Camera

1. Select one of the following power connections:

·Connect the Ethernet cable from the camera to a PoE+ switch/injector (for -40° to 50°C/-40° to 122°F)

·Connect the Ethernet cable from the camera to a PoE switch/injector (for -10° to 50°C/14° to 122°F)

·Connect the camera’s power cable to a 12VDC (1.6 amps), 24 VDC (0.8 amps), or 24VAC (0.85 amps)

power supply (for -40° to 50°C/-40° to 122°F)

2. Connect the analog video, audio in, audio out, alarm cables as required for your system.

B. Discover the Camera

The camera’s web interface can be accessed by

Internet Explorer 9 and higher (32-bit) with the ActiveX

plug-in on PCs running 64-bit Windows XP, 7, 8, 8.1,

or 10.

B.1. Configuring the camera on your workstation

for the first time

1.Install the CD in the product package or download

FLIR’s Discovery Network Assistant (DNA) utility from

the Support > FLIR Firmware & Software

Downloadspage at http://www.flir.com/security.

2.Click the DNA icon and run DNA version 2.1.x.x or

above to log into the unit.

3.Attach the unit to the same LAN segment as the

computer that is managing the unit. DNA

automatically discovers the unit on the network and

displays the device’s current IP address in the

Discover List.

4.Select the unit from the Discover List.

5. Select PAL or NTSC by selecting the unit and clicking

Change Video Format from the context menu, or

from the Properties > Device Propertiesscreen.

6. Click Update.

B.2.a Managing the camera with Horizon,

Meridian or on a DHCP-enabled network

If the camera is managed by Horizon configured

as a DHCP server, or is on a network with a DHCP

server, the camera automatically receives an IP

address.

1.Open DNA. The unit is automatically discovered

on the network. See section B.1 for instructions

how to install DNA.

2.Verify that the unit is displayed in the Discover

List. The unit status should be displayed as

OnlineAuthenticated.and

B.2.b Managing the camera with Latitude or

on a network with static IP configuration

If the camera is managed by Latitude or is on a

network without a DHCP server, you must

manually enter its IP address in DNA.

1.Open DNA. The unit is automatically discovered

on the network. See section B.1 for instructions

how to install DNA.

2.If you use non-default credentials, the unit might

become unauthenticated. In this case,

authenticate the unit:

a. Use DNA to select the unit(s).

b. Right-click or click the Login button.

c. Enter the camera's User Name ("admin") and

Password ("admin").

d. Click Login.

3.In the DNA Assign IP screen, uncheck Use DHCP, and enter the unit’s IP,

Mask and Gateway IP addresses. If the camera is not authenticated, you

must first authenticate it.

4.Click Update.

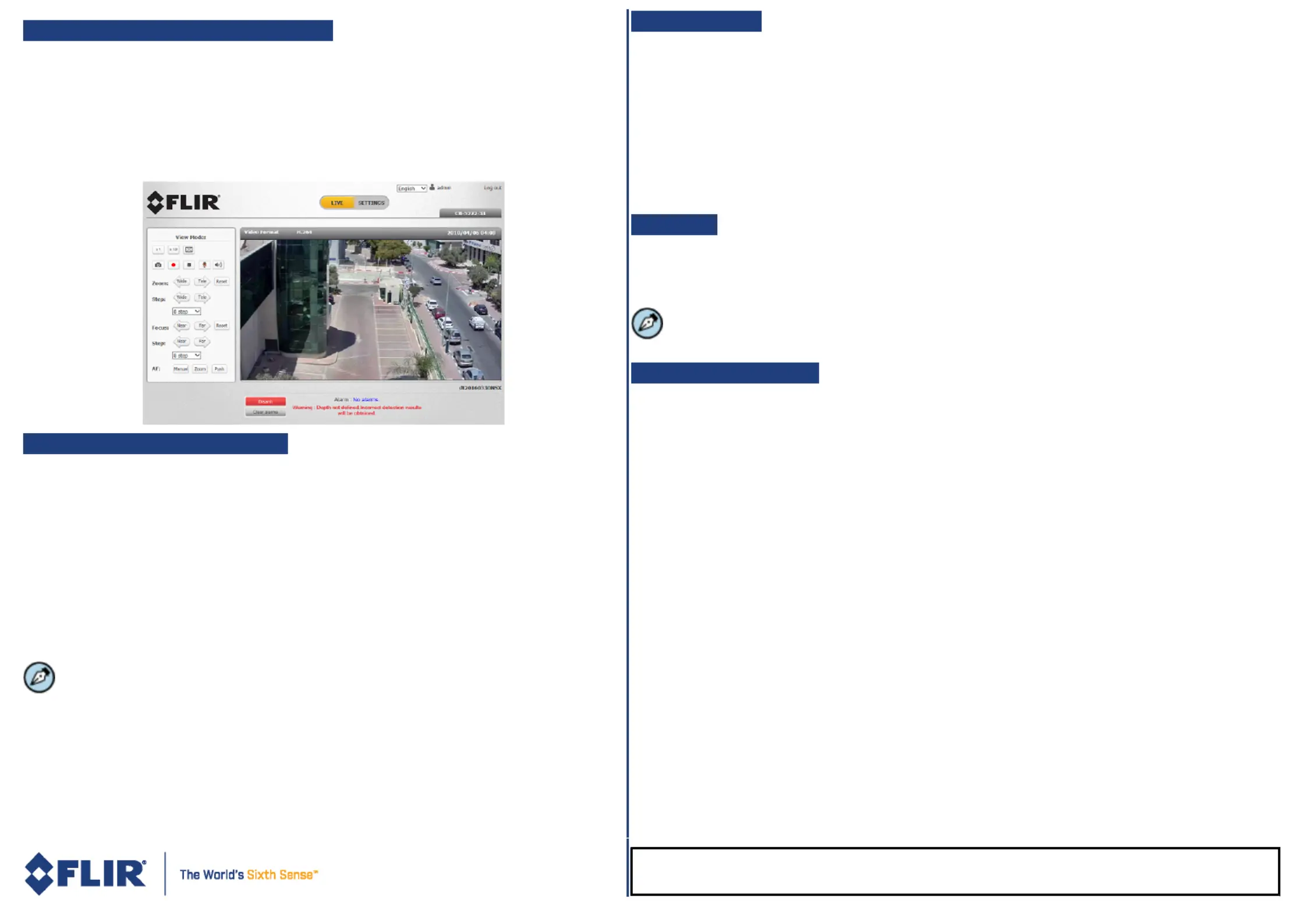

B.3. Log into the Unit

1.Click the unit in DNA’s Discover List. The Login window opens.

2.Enter the default User Name ("admin") and Password ("admin"), which are

case-sensitive. Then click OK.

3.Click Loginin DNA. The unit’s web interface opens.

4.Click the message to install the ActiveX plug-in.

5.Follow the on-screen instructions to install the plug-in.
