MINI DOME COLOR CAMERA
ZC-D4312 NHA/ZC-D4312 PHA
Operation Manual
Camera adjustments
Camera adjustments for the ZC-D4312NHA/PHA
DIP switch settings
The bank of dip switches allow the following settings to be made:
SDN mode (SDN / ON)
When ON the camera operates in monochrome mode in reduced
lighting.
Auto White Balance (AWB / AWB.EX)
AWB: The camera operates in the normal Auto White Balance range
2700K~11000K.
AWB EX: The camera runs in the extended Auto White Balance
range 2000K~18000K.
Line Lock (INT / LL)
In LL mode, the V-Phase may be adjusted to compensate for
connected supply phase differences.
Only appli
cable for 24VAC supply - otherwise the camera operates
with INTernal sync.
Flicker less mode (FL / ON)
ON: The Camera reduces flicker in the image under fluorescent
lighting.
Back Light Compensation (BLC)
When set ON, this option improves the camera response to strong,
unwanted lighting effects behind the required subject.
Low Light Sensitivity (AGC-EX)
When set to EX sensitivity in low light is increased.
Focus & view angle adjustment
Twist the levers on the side of the varifocal camera to adjust the
focus and view angle settings.
TIP: If necessary, perform the final focus through the dome cover.
Hold it to the lens reversed to confirm the final results.
Vertical phase adjustment
Use this adjustment when using an AC supply to align the camera
phase with that of the supply.
Iris adjustment
This is factory set and should not normally require adjustment
except to compensate for excessive image blooming.
ZC-D4312NHA/PHA camera specifications
Type / Format NTSC PAL
Scanning E
lement 2:1 Interlace,
H15.750 KHz/
V:59.94 Hz
2:1 Interlace,
H15.625 KHz/V:50 Hz
Image Picture Element 1/3" Interline CCD
Effective Picture Element 768(H) 494(V) 752(H) 582(V)
Approximate pixels 380K 430K
)lamron(045)senilVT(noituloseR
noitanimullImuminiM
Bd05oitaRN/S
Bd03niaGXE.CGA
Bd62niaGteserPCGA
Back Light Compensation Central area for auto iris
evirDSIRIotuACDlortnoCerusopxE
kcoleniL/lanretnImetsyScnyS
Line Lock
(Phase Adj.
Range)
0°~270°
Line Lock
(Frequency Range)
60 Hz 1 Hz 50 Hz 1 Hz
54.0noitasnepmoCammaG
decnalabnUmho57,ppV0.1tuptuOoediV
ecnalaBetihWcitamotuAecnalaBetihW
K00011-K0072egnaRlamroNBWA
K00081-K0002egnaRXE.BWA
CAV42:CAegnaRrewo ro %02 P
DC: 12 VDC -10% +20%
noitpmusnoCrewoP
Operating Temperature -10°C to +50°C
Storage Temperature -35°C to +60°C
External Dimensions 120(
φ
)mm x 100(H)mm
g053thgieW
Lens Specifications
htgneLlacoF
.oN-F
e
gnaRsirI
m5.0ecnatsiDtcejbOmuminiM
Angle Of View Diagonal 125.7°~29.9°
latnoziroH
lacitreV
epyTsneL
3.3~12 mm
F1.4
F1.4~F360
89.8°~23.9°
63.6°~17.9°
Aspherical

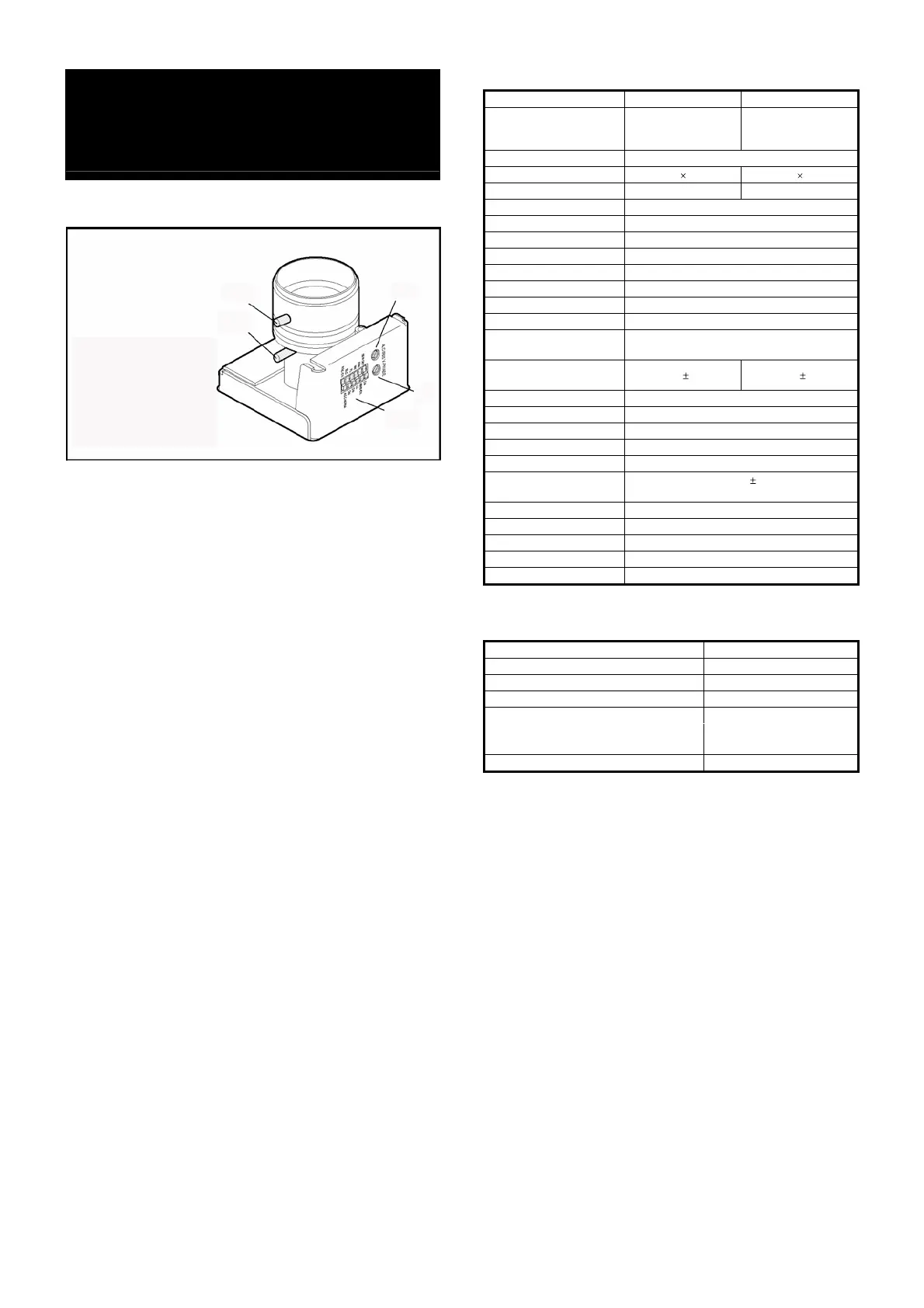

A: Focus adjustment lever
B: View angle adjustment lever
C: DIP switches
D: ALC adjustment
E: V-Phase adjustment
A
B
E
C
D
4.2W
1.4 lx @ F1.4
English
