ÆFKHOOH

|

6LE009053Aa - 145832

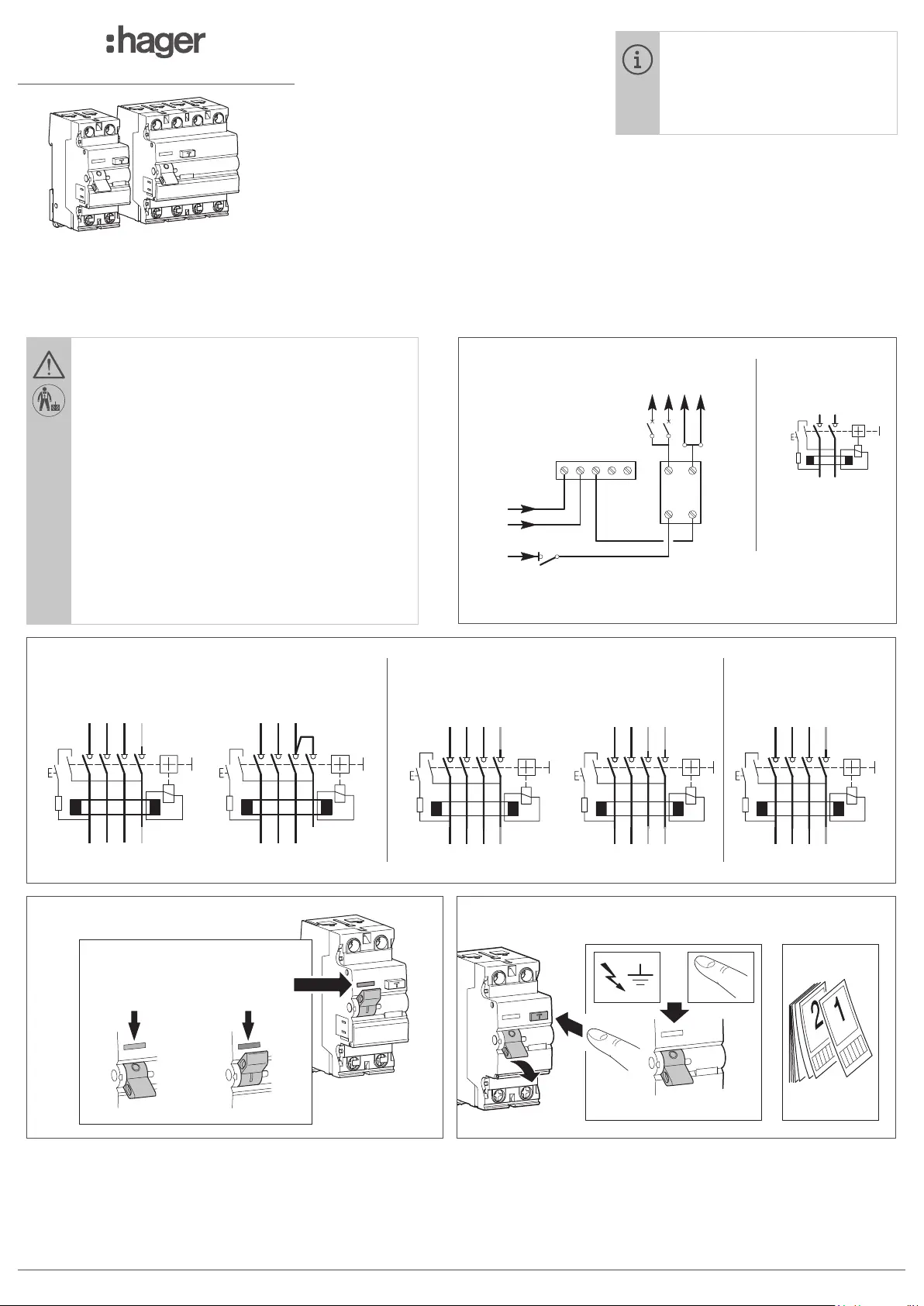

Safety switch (RCCB's) 25 - 40 - 63 A

z

For the tripping times verication

tests, in an electrical installation, Hager

certies that the RCDs, of the Hager brand,

conforming to standards EN 61008-2-1,

EN 61009-2-1, trip under a current of 5*I∆n

in accordance with the times imposed in

table 41.1 of standard DIN VDE 0100-410

(VDE 0100-410) 2018-10.

1Hager Electro S.A.S., Boulevard d'Europe, B.P. 3, 67215 OBERNAI CEDEX, France - www.hager.com

Electrical connection 2 poles.

E

N

A

C1C2N1N2

N

N

L

L

C1 - Circuit1

C2 - Circuit 2

24

13

N

N

T

For a 2 pole 40A unit, where, for example, two power circuits are to be

protected, the Hager neutral link KM03A may be connected to the N

terminal for convenient splitting of the neutrals.

échelle 40%

OFF

green

ON

red

Positive contact indication.

OFF

échelle 40%

1, 3, 5...12

Fev.

Fev.

Jan.

Jan.

Test

Test

7

/

1

1

1

1

/

/

/

/

/1

///

///

7

1

1

1

/11/

/1

1/

7

1

1

//1/

//

1/

7

1

1

//11

//

11

7

Earth leakage fault indication.

Back-up protection chart with MCB’s or fuses.

•

Refer to Hager general catalog.

•

Refer to Hager website.

or

Please note the following

1 - The current rating per pole of the RCCB must not be

exceeded by the maximum demand of the protected

circuits; refer to clause 1.6.3 “Maximum Demand” in

AS/NZS 3000: 2007.

2 - If RCCB trips OFF after installation, locate and repair

faulty appliances (cumulative leakage from a number

of appliances may exceed the RCCB tripping current,

causing RCCB to trip OFF).

3 - The “main neutral” and “main earth” should be checked

to ensure good connection.

4 - If RCCB trips intermittently will not reset, or test button

will not work, check for low insulation resistance

between neutral & earth wiring.

Electrical connection 4 poles.

Three phase & neutral use Three phase use Single phase use

Two circuits Three circuits
