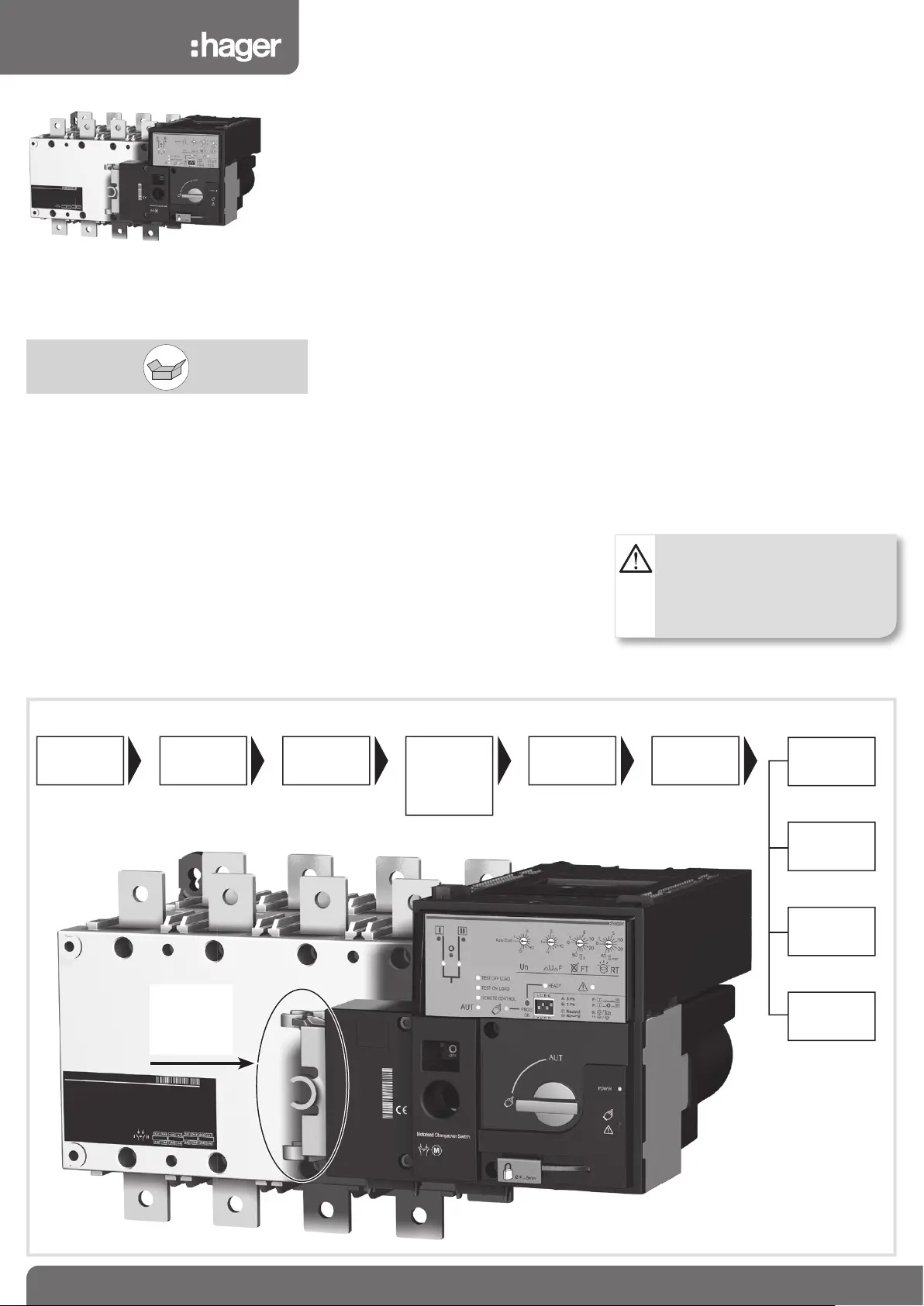

1

Step 1

Cabinet /

Back Plate

Installation

Step 2

Connecting the

power section

Step 3

COMMAND /

CONTROL

terminal

connections

Step 4

Power SUPPLY

and

controller

terminal

connections

Step 5

Check

Step 6

Programming

Step 7A

AUT Mode

(Automatic

Control)

Step 7B

AUT Mode

(Remote

Control)

Step 7C

Emergency

Manual

Operation

Step 7D

Padlocking

6LE001123A.e

Preliminary operations

Check the following upon delivery and after removal

of the packaging:

• Packaging and contents are in good condition.

• The product reference corresponds to the order.

• Contents should include:

- 1 x motorised changeover switch

- 1 x emergency handle and fi xing clip

- 1 x quick start instruction sheet.

Accessories

• Bridging bars and connection kits.

• Terminal shrouds.

• Terminal shield.

• Voltage sensing kit.

• Sealable cover.

This quick start is intended for personnel trained in

the installation and commissioning of this product.

For further details refer to the product instruction

manual available on the hager website.

• This product must always be installed and

commissioned by qualifi ed and approved

personnel.

• Maintenance and servicing operations should be

performed by trained and authorised personnel.

• Do not handle any control or power cables

connected to the product when voltage may be,

or may become present on the product, directly

through the mains or indirectly through external

circuits.

• Always use an appropriate voltage detection

device to confi rm the absence of voltage.

• Ensure that no metal objects are allowed to fall

in the cabinet (risk of electrical arcing).

Failure to observe good enginering practises as

well as to follow these safety instructions may

expose the user and others to serious injury or

death.

Installation and commissioning

Clip

for storage

of the

emergency

handle

z

Motorised changeover switch

125A - 630A

Risk of electrocution, burns or injury to

persons and/or damage to equipment.

Risk of damaging the device.

In case the product is dropped or

damaged in any way it is recommended

to replace the complete product

.

HIC4xxG
