Hamlet HXDAS35 Bedienungsanleitung

Hamlet Festplatte HXDAS35

Lies die bedienungsanleitung für Hamlet HXDAS35 (12 Seiten) kostenlos online; sie gehört zur Kategorie Festplatte. Dieses Handbuch wurde von 23 Personen als hilfreich bewertet und erhielt im Schnitt 3.5 Sterne aus 12 Bewertungen. Hast du eine Frage zu Hamlet HXDAS35 oder möchtest du andere Nutzer dieses Produkts befragen? Stelle eine Frage

Download PDF

Seite 1/12

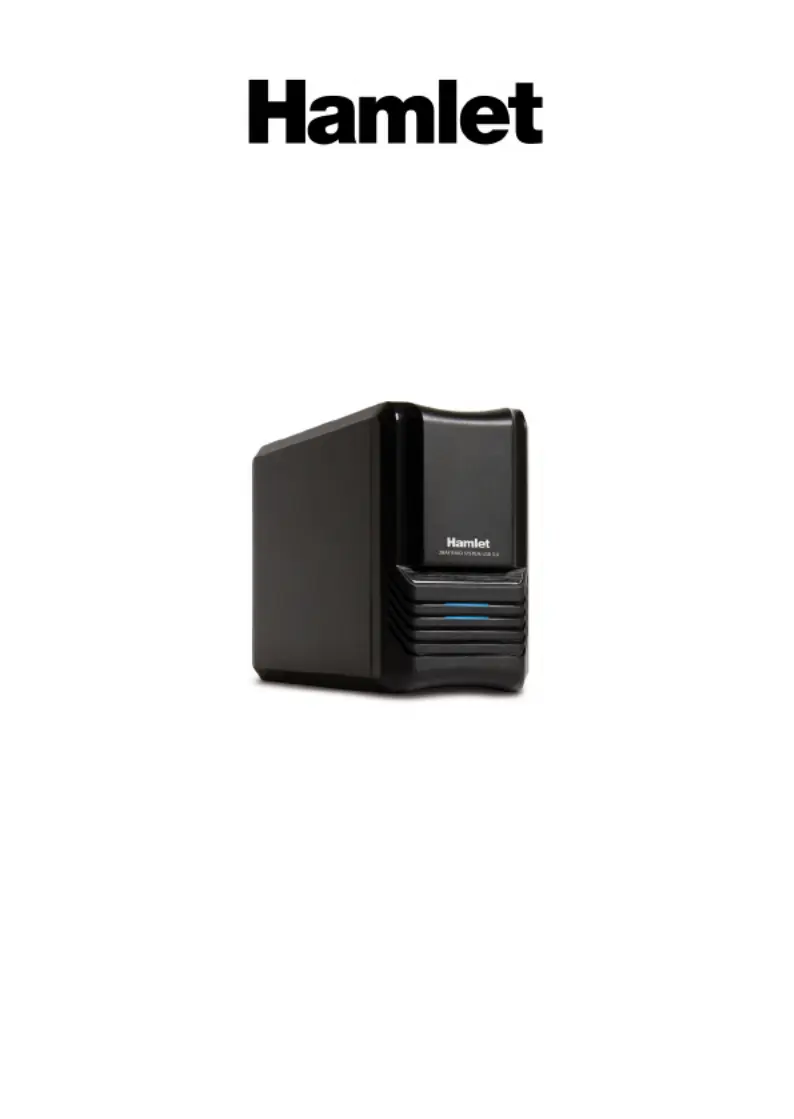

2BAY RAID SYSTEM USB 3.0 DESKTOP

RAID Enclosure for Two 3.5” SATA Hard Drives

USER MANUAL

HXDAS35

www.hamletcom.com

Dear Customer,

thanks for choosing an Hamlet product. Please carefully

follow the instructions for its use and maintenance and,

once this item has run its life span, we kindly ask You to

dispose of it in an environmentally friendly way, by

putting it in the separate bins for electrical/electronic

waste, or to bring it back to your retailer who will collect it for free.

We inform You this product is manufactured with materials and

components in compliance with RoHS Directive 2011/65/EU

( )2002/95/CE ; WEEE Directive 2002 /96/CE, 2003/108/CE Italian

Legislative Decree 2005/151 and EMC Directive

2004/108/EC : for the following standards EN 55022:

2010 2: 2006 + A1: 2009 + A2: 2009, EN 61000-3- ,

EN 61000 EN 55024: 2010-3- , 3: 2008 .

The complete CE declaration of conformity of the product can be

obtained by contacting Hamlet at info@hamletcom.com.

The information on the importer for your country can be found in the

“About Us” section of the Hamlet website at www.hamletcom.com.

Trademarks and changes

All trademarks and company names mentioned in this manual are

used for description purpose only and remain property of their

respective owners.

The material in this document is for information only and subject to

change without notice.

Important information

Any loss, corruption or destruction of data while using a Hamlet

drive is the sole responsibility of the user, and under no

circumstances will Hamlet be held liable for the recovery or

restoration of this data. To help prevent the loss of your data, it is

highly recommended that you keep TWO copies of your data; one

copy on your external hard drive, for instance, and a second copy

either on your internal hard drive, another external hard drive or

some other form of removable storage media.

Introduction

Features

• Supports JBOD, RAID0,RAID1,Normal mode

• Enhanced data protection and high-performances storage

• Support with USB3.0 high speed reach up to 5.0Gbps

• - - Supports Plug play and Hot plug

• Support mode select by RAID switch

Specifications

• Inner Interface: SATA

• Outer Interface: USB3.0

• nDate Tra sfer rate: Support USB 3.0 super speed (5Gbps)-

• Complies with USB 2.0 high speed (480Mbps), USB 1.1 Low

speed (1.5Mbps)

• Suitability: 2 x 3.5” SATA HDD

• - - Supports Plug play and Hot plug

• Power Supply: AC 100~240V, 50~60Hz ; DC 12V, 2.5A

• Material: a luminum and plastic

• Cooling Fan: One 25x25mm Cooling Fan

• OS Compatibility: Windows XP/Vista/7/8, Linux and Mac OS

10.4 or above

• Dimension: 200 x 120 x 68 mm (L x W x H)

System Requirements

• Minimum Pentium II/50MHz or Apple G4 processor

• Minimum 64MB RAM

• Windows XP/VISTA/7/8, Mac OS 10.4 and above

• One available USB port

Supported Hard Drives

• I/ One or two 3.5” SATA II hard drives (1.5/3.0 Gbps)

• C apacity up to 2TB or more

• Hard drives of identical capacities are recommended

• Supports large volumes in excess of 3TB

Produktspezifikationen

Marke:	Hamlet
Kategorie:	Festplatte
Modell:	HXDAS35
Breite:	68 mm
Tiefe:	200 mm
Mitgelieferte Kabel:	USB
Produkttyp:	HDD-Gehäuse
Produktfarbe:	Schwarz
Höhe:	120 mm
LED-Anzeigen:	Ja
Kompatible Betriebssysteme:	Windows XP/Vista/7/8\r\nLinux\r\nMac OS 10.4+
Anzahl der unterstützten Speicherlaufwerke:	2
RAID Level:	0, 1,JBOD
Externes Netzteil:	Ja
Unterstützte Speicherlaufwerk-Schnittstellen:	Serial ATA, Serial ATA II
Datenübertragungsrate:	5 Gbit/s
Größe des Speicherlaufwerks:	3.5 "
Anzahl der USB 3.2 Gen 1 (3.1 Gen 1)Anschlüsse:	3
Max. Speicherkapazität:	8 TB
