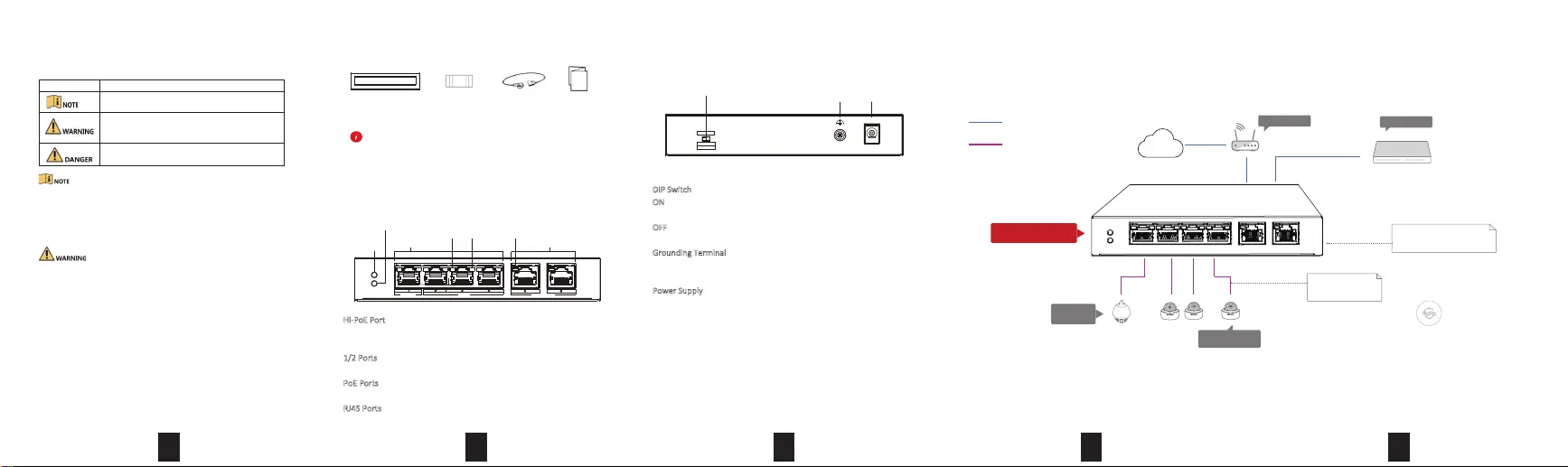

Device Connecon

Connect your devices according to your actual networking requirements.

Interfaces

Rear Panel

Front Panel

Packing List

Switch x 1

Quick Start

Guide x 1

Power Cord x 1

Hi-

PoE Port

Hi-PoE port is used for other Hi-PoE PTZ cameras connecon, and

the max. power is 60 W.

1/2 Ports

High priority ports, can guarantee prior and stable transmission.

PoE Ports

100 Mbps PoE ports are used for other PoE devices connecon.

RJ45 Ports

100 Mbps RJ45 ports are used for device connecon via network cables.

LINK/ACT

Indicator

PoE

Indicator

PoE-MAX Indicator

PWR

Indicator

PoE Ports RJ45 Ports

Grounding

Terminal

Power

Supply

LINK/ACT

Indicator

Power Adapter x 1

Applicable Models

This manual is applicable to DS-3E0106HP series 100 Mbps Long-Range PoE switch.

Symbol Convenons

The symbols that may be found in this document are deﬁned as follows.

During the installaon and ulizaon of the device, please strictly conform to electrical

safety rules in diﬀerent naons and regions.

Use the aached power adaptor only and not to change the adaptor randomly. Please

refer to speciﬁcaon table for speciﬁc requirements of power adaptor.

Never aempt to disassemble the device yourself. (We shall not assume any

responsibility for problems caused by unauthorized repair or maintenance.)

The device must be installed in machine room only, and only maintenance staﬀ or

qualiﬁed person should access to the device.

Do not touch the upper cover area of the device that may be overheated.

Power must be shut down during cable connecon, device installaon and

dismantlement.

You shall acknowledge that the use of the device with Internet access might be under

network security risks, please strengthen protecon for your personal informaon and

data security. If you ﬁnd the device might be under network security risks, please contact

with us.

Proper conﬁguraon of all passports and other security sengs is the responsibility of

the installer, and you shall keep user name and passports properly.

Please keep all original packing materials properly. If the product does not work properly,

pack the switch in its original packing materials for shipping. We shall not assume any

responsibility for damages caused by improper packing materials during shipping.

Ensure that your devices powered via the PoE port have their shells protected and

ﬁre-proofed, because the switches are not compliant with the Limited Power Source

(LPS) standard.

This is a class A product and may cause radio interference in which case the user may be

required to take adequate measures.

Indicates a hazard with a high level of risk, which if

not avoided, will result in death or serious injury.

Symbol Descripon

Provides addional informaon to emphasize or

supplement important points of the main text.

Indicates a potenally hazardous situaon, which if not

avoided, could result in equipment damage, data loss,

performance degradaon, or unexpected results.

•

DIP Switch

ON: Extend mode, ports 1-4 support network transmission of up to

300 m, and the speed rate of the port is 10 Mbps.

OFF: Standard mode, the network transmission of PoE ports is up to

100 m, and the speed rate of the port is 100 Mbps.

Grounding Terminal

The grounding terminal is used to connect to the ground cable to

protect the switch from lightning.

Power Supply

Use the aached power cord to connect the switch to socket.

Hi-PoE PoE UPLINK

If any accessories are damaged or lost, keep the package intact

and contact your dealer for replacement.

OFF ON

Extend

PORT 1-4

PWR

DC 48V

DIP Switch

802.3bt Hi-PoE

Dual uplink ports for

CCTV scenario

Up to 300 meters

(Port 1-4)

6 KV Surge Protection

IP Camera

Hi-PoE PTZ

(port 1)

4-Port 10/100M PoE

10/100M Unmanaged PoE Pro-Series

Data

Power+Data(PoE)

Router

NVR

Internet

Produktspezifikationen

Marke:	Hikvision
Kategorie:	Schalter
Modell:	DS-3E0106HP-E
Breite:	145 mm
Tiefe:	68.45 mm
Gewicht:	240 g
Produktfarbe:	Blau
Höhe:	25.6 mm
DC input Spannung:	48 V
Betriebstemperatur:	-10 - 55 °C
Relative Luftfeuchtigkeit in Betrieb:	5 - 95 %
Paketgewicht:	770 g
Netzstandard:	IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
Vollduplex:	Ja
Power over Ethernet (PoE):	Ja
Stromverbrauch (max.):	65 W
Gehäusematerial:	Metall
LED-Anzeigen:	Activity, Link, Power
Temperaturbereich bei Lagerung:	-40 - 85 °C
Luftfeuchtigkeit bei Lagerung:	5 - 95 %
Switch-Typ:	Unmanaged
Anzahl der basisschaltenden RJ-45 Ethernet Ports:	6
Basic Switching RJ-45 Ethernet Ports-Typ:	Fast Ethernet (10/100)
Auto MDI/MDI-X:	Ja
10G-Unterstützung:	Nein
MAC-Adressentabelle:	2000 Eintragungen
Routing-/Switching-Kapazität:	1.2 Gbit/s
Eingangsstrom:	1.35 A
Store-and-Forward:	Ja
Transferrate:	0.893 Mpps
Gesamtleistung Power over Ethernet (PoE):	60 W
Anzahl Lüfter:	0 Lüfter
Anzahl Power over Ethernet (PoE) Anschlüsse:	4
Power over Ethernet (PoE) Leistung pro Anschluss:	30 W
