Seite 1/6
COMPLIANCE
This device complies with part 15 of the FCC. Operation is subject to
the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
FCC NOTE: The manufacturer is not responsible for any radio or TV
interference caused by unauthorized modifications to this equipment.
Such modifications could void the user’s authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Important note: To comply with the FCC RF exposure compliance
requirements, no change to the antenna or the device is permitted.
Any change to the antenna or the device could result in the device
exceeding the RF exposure requirements and void user ’s authority to
operate the device.
This Class B digital apparatus complies with ICES-005 of Canada.
WARNINGS/SAFETY
WARNING
Risk of Fire or Electric Shock
• Disconnect power at the circuit breaker(s) or disconnect
switch(es) before installing or servicing.
• Installation and/or wiring must be in accordance with national
and local electrical code requirements.
• Only use copper conductors rated 105°C minimum
• Battery is not user replaceable.
• Do NOT use timer to control devices that could have dangerous
consequences due to inaccurate timing such as sun lamps,
sauna, heaters and slow cookers.
• Class 1 connections shall be torqued to a minimum of 10.6 lb-in.
• Class 2 connections shall be torqued to 4.5 lb-in.
• Cover should be installed at all times when not servicing.
NOTICE
Dispose of product per local regulations on the disposal of lithium
batteries.
Ratings
1
Operating Voltage 120-277 VAC
E-Ballast/ Magnetic Ballast 16 A, 120-277 VAC
Resistive 20 A, 120-277 VAC
General Purpose 20 A, 120-277 VAC
Tungsten 12.5 A, 277 VAC
Motor 1/2 HP, 120 VAC; 1 HP, 240 VAC
Class 1 0-10 VDC output = 50 mA per channel
Class 2 24 VDC = 290 mA Total
Ambient Operating Temperature 0° to 55° C (32° to 131° F)
Dimensions 8.2" H x 8.2" W x 2.8" D
For indoor use only
1
The ALC4-R is suitable for plenum use.
1
Type 1 action, operating control, PD2 pollution degree, Impulse voltage 4000V.
OVERVIEW
The ALC4-R 4-Channel controller allows for each channel to be inde-
pendently controlled via schedule, sensor, or combination of the tech-
nologies to provide even greater energy savings. Each channel can be
configured to work as either 0-10 VDC for dimming applications, or as
ON/OFF for plug load or other non-dimming application needs. These
settings will be available via the ARISTA app.

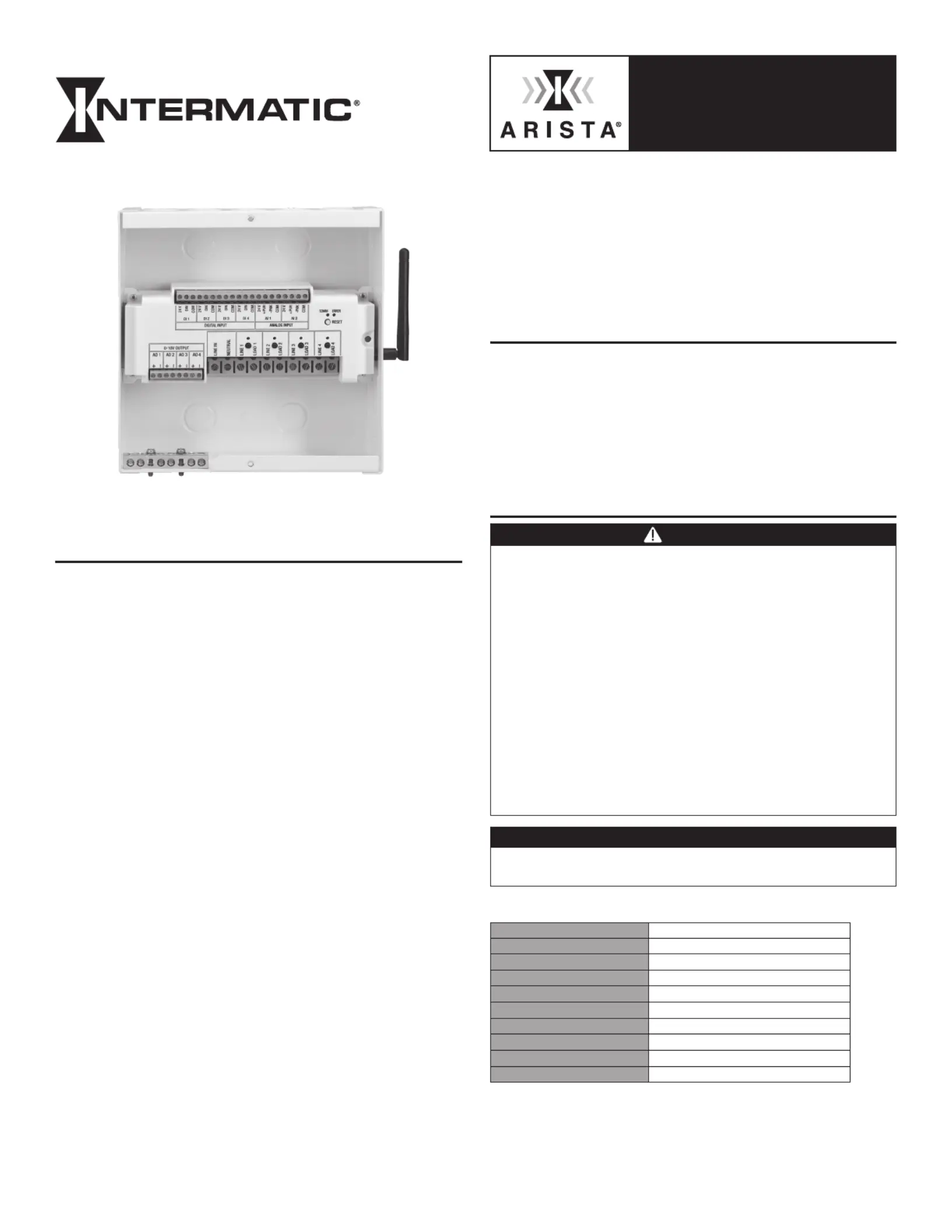

ALC4-R
4-Channel 0-10 V Lighting/
Plug Load Controller
INSTALLATION (SEE WARNINGS BEFORE INSTALLING)
1. Determine mounting location.
2. Determine and remove proper knockouts for installation.
3. Install proper fittings for installation adhering to all local codes.
4. Connect all input and output wiring (See wiring diagrams for examples).
a. Be sure to keep all Class 1 and Class 2 wiring separated.
5. Install the included antenna.
6. Turn power ON to the controlling circuit.
7. Verify blue LED is flashing and all connected loads are ON.
a. Green Load indicators and loads should turn ON and OFF by manual button presses.
8. Refer to programming instructions.
NOTE: For Programming instructions please visit www.Intermatic.com. The Arista App is available on Apple App and Google Play stores.
(Search for Arista by Intermatic)
8 1/4"
8 1/4"
C
L
8"
1"
1 3/8"
1 3/8"
1 3/8"
1 3/8" 1 1/4"
C
L
3"
8"
1"
1 1/4"
2 3/4"
2 3/4"
ALL KNOCKOUTS ARE SYMMETRICAL
OFF THE CENTER LINES
5 1/2"
2 1/2"
1 1/4"
1 1/2" 1 1/2"
4"
C
L

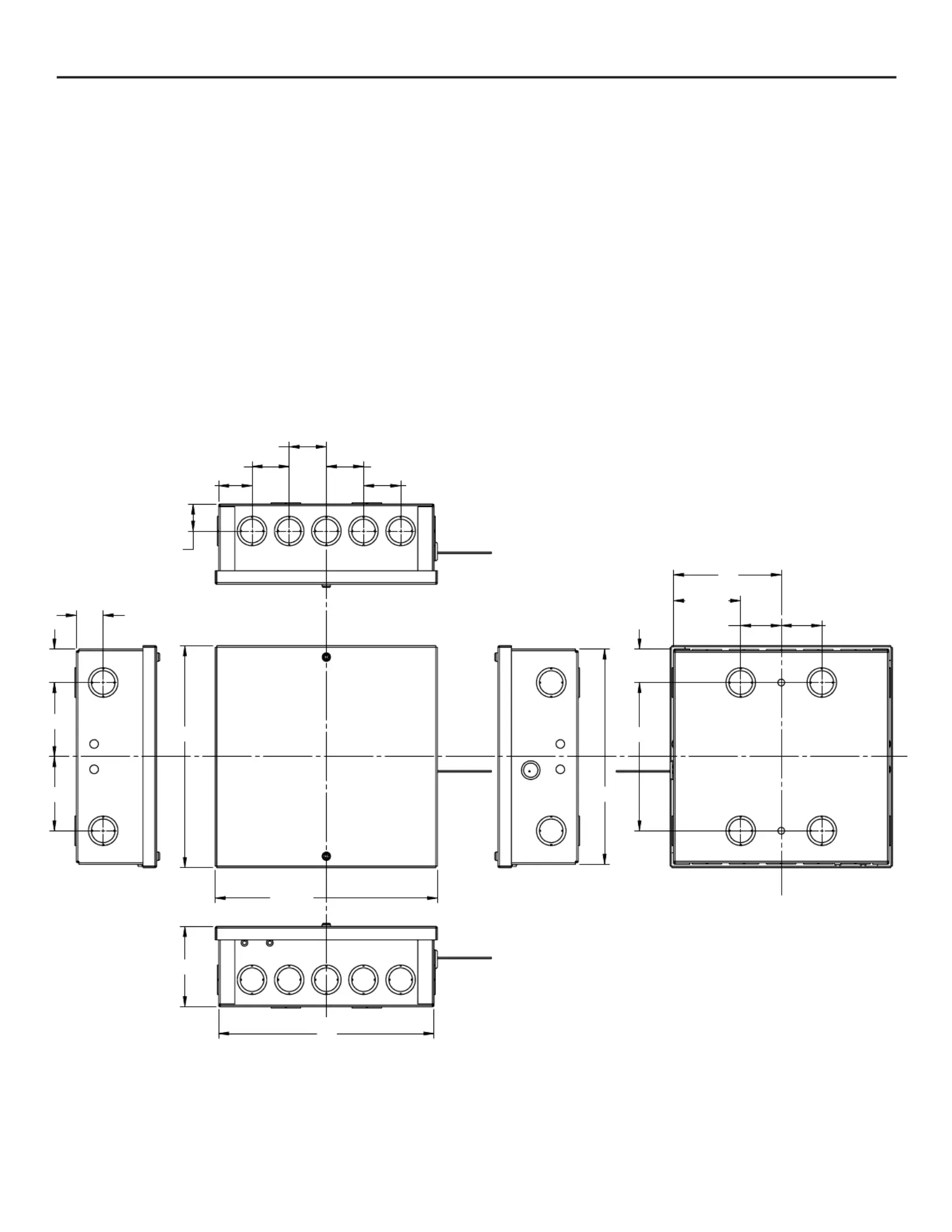

ALC4-R DIMENSIONS
NOTE: Bluetooth Operations have a maximum range of 100’
WIRING DIAGRAMS
Terminal Description
COM Connect to COM (Common) from switch/sensor
DIN1 or DIN2 Connect to DO (Digital Output) from switch/sensor
24 V Connect to 24 V (Power) from switch/sensor
Note: Maximum distance <= 200’ with a minimum wire size of 24 AWG; maximum wire size of 16 AWG.

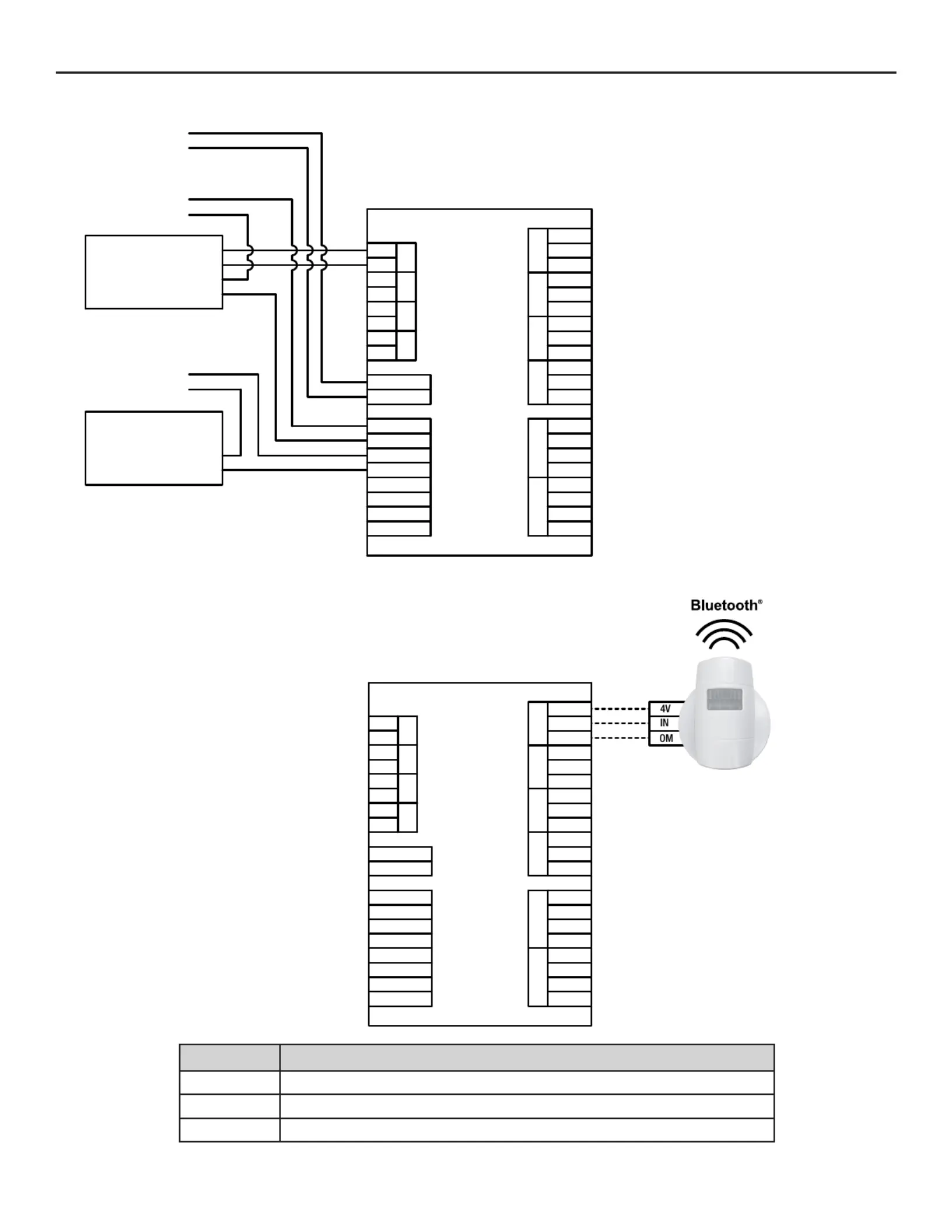

ALC4-R DIGITAL INPUT WIRING DIAGRAM
ALC4-R CLASS 1 WIRING DIAGRAM
LOAD 4
LINE 4
LOAD 3
LOAD 2
LOAD 1
NEUTRAL
LINE 3
LINE 2
LINE 1
LINE IN
-
+
0-10V OUTPUT
TIMER
POWER
OUTPUT LOADS
ANALOG INPUTS
DIGITAL INPUTS
COM
-PNK
+PUR
24V
AI 2 AI 1
24V
+PUR
-PNK
COM
COM
DIN
24V
COM
COM
COM
DIN
DIN
DIN
24V
24V
24V
DI 4 DI 3 DI 2 DI 1
CLASS 2 WIRING
AO1 AO2 AO3 AO4
+
+
+
-
-
-
2
D
C
ARISTA OCCUPANCY/
VACANCY SENSORS
COMMUNICATIONS CAN
BE DONE THROUGH THE
BLUETOOTH MESH
NETWORK OR BE WIRED
WHEN USING 24VDC.
LOAD 4
LINE 4
LOAD 3
LOAD 2
LOAD 1
NEUTRAL
LINE 3
LINE 2
LINE 1
LINE IN
-
+
0-10V
OUTPUT
TIMER
POWER
OUTPUT
LOADS
ANALOG INPUTS
DIGITAL INPUTS
COM
-PNK
+PUR
24V
AI 2 AI 1
24V
+PUR
-PNK
COM
COM
DIN
24V
COM
COM
COM
DIN
DIN
DIN
24V
24V
24V
DI 4 DI 3 DI 2 DI 1
CLASS 2 WIRING
UNSWITCHED LINE
NEUTRAL
POWER SOURCE
POWER SOURCE
AO1 AO2 AO3 AO4
+
+
+
-
-
-
NON-DIMMING
LIGHTING
LOAD
DIMMING
LIGHTING
LOAD
0-10V
DIMMING
WHT
WHT
BLK
BLK
ALL OUTPUTS CAN BE
CONFIGURED FOR EITHER
PLUG LOAD CONTROL OR
0-10V LIGHTING CONTROL
NEUTRAL
NEUTRAL
CHANNEL 2
CHANNEL 1
