Seite 1/5

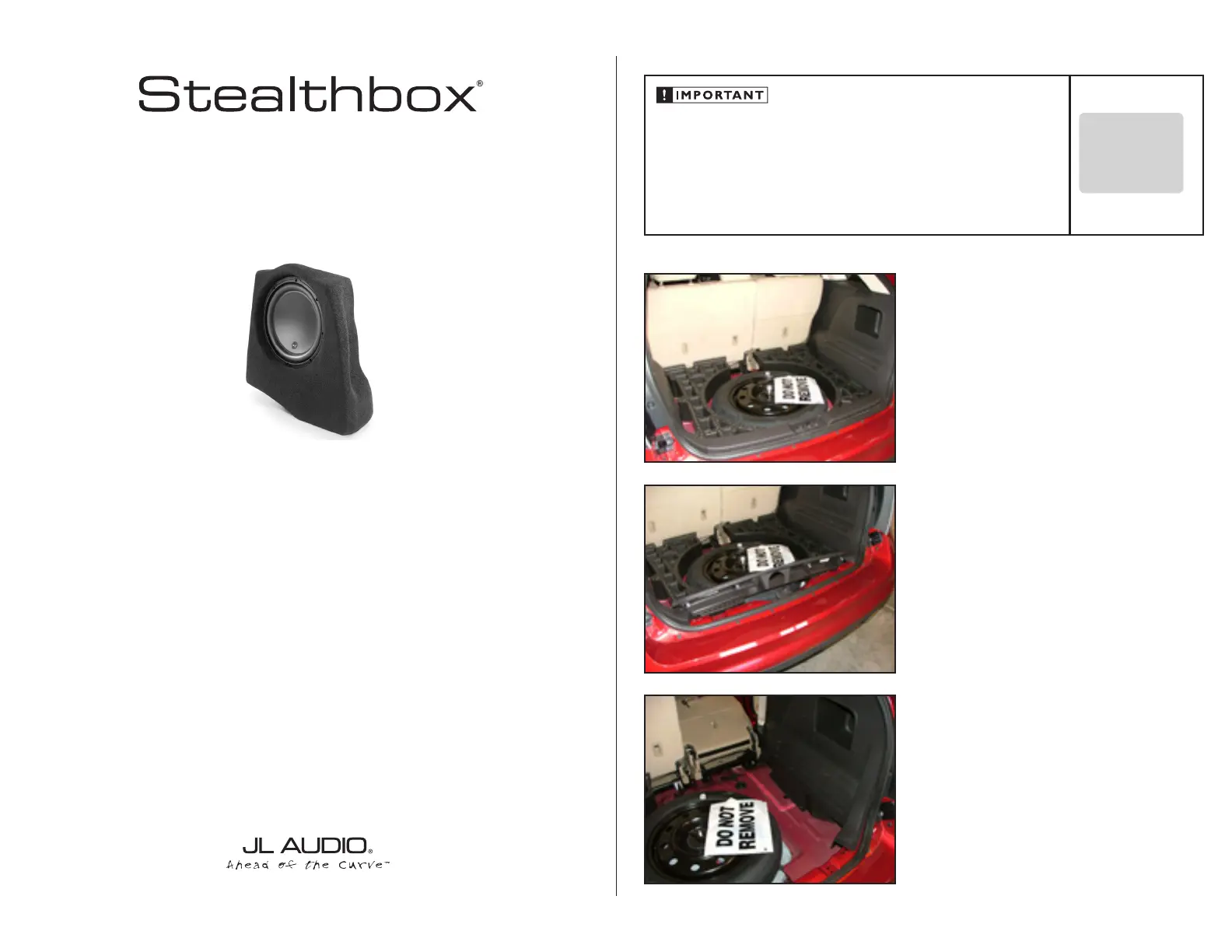

I N S T A L L A T I O N G U I D E
for the
SB-F-EDG/10W3v3
SKU#94376
2007-2014 Ford Edge
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove the floor panel by lifting seat flaps. Carefully tilt
entire panel to exit hatch diagonally.
Continued on Next Page
S T E P 2
Remove threshold plate by lifting directly upward.
S T E P 3
Remove foam filler panel or plastic storage tray from
passenger side of spare tire.
SB-F-EDG/10W3v3 INSTR_SKU# 011254
INSTALLATION
D I F F I C U L T Y :
35
OUT
OF
ESTIMATED TIME:
23 HOURS
Continued on Next Page
SB-F-EDG/10W3v3_INSTR_SKU# 011254
S T E P 7
Remove passenger side cargo panel by prying away from
side of vehicle and floor. If equipped, unbolt and remove the
factory subwoofer enclosure.
S T E P 6
Pull passenger side cargo panel away from the door jamb.
S T E P 5
Remove passenger side threshold plate.
S T E P 4
Fold passenger side rear seat forward.
Remove bolt securing seat belt at lower front of cargo
side panel.
Page 2 • JL Audio, Inc 2016
S T E P 9
Insert a 1/4”-20 U-Nut into the square hole near the side
window, as shown.
S T E P 1 1
Route speaker cable to the Stealthbox location as necessary.
S T E P 1 0
Insert a 1/4”-20 U-Nut into the square hole just above the
wheel well, and align the Large Bracket, as shown. Place a
1/4” Lock Washer and a 1/4” Flat Washer over a 1/4”-20 x 1
Bolt, and thread the assembly through the hole in the Large
Bracket and into the 1/4”-20 U-Nut, as shown. Firmly tighten
to secure the Large Bracket to the vehicle.
S T E P 8
Insert a 1/4”-20 U-Nut into the square hole near the weather-
stripping as shown.
In vehicles equipped with the factory subwoofer, the existing
U-Nut can be used here instead, as well as in Steps 9-10.
Continued on Next Page
SB-F-EDG/10W3v3_INSTR_SKU# 011254
S T E P 1 5
Place a 1/4” Lock Washer and a 1/4” Flat Washer over a 1/4”-20
x 1 Bolt, and thread the assembly through the hole in the
Z-Bracket and into the 1/4”-20 U-Nut, as shown, and hand
tighten.
S T E P 1 4
Slide the Stealthbox® around the Large Bracket from the top,
and press the enclosure into position, aligning the Z-Bracket
and L- Bracket with the two 1/4”-20 U-Nuts installed in Steps
8-9. Align the Large Bracket with the threaded insert at the
bottom of the Stealthbox®.
S T E P 1 3
Attach the L- Bracket to the top of the Stealthbox® using a
1/4”-20 x 1 Bolt, a 1/4” Lock Washer, and a 1/4” Flat Washer, as
shown, and hand tighten.
S T E P 1 2
Attach the Z-Bracket to the front of the Stealthbox® using a
1/4”-20 x 1 Bolt, a 1/4” Lock Washer, and a 1/4” Flat Washer, as
shown, and hand tighten.
Page 3 • JL Audio, Inc 2016
S T E P 1 7
Using a 1/4”-20 x 1 Bolt, a 1/4” Lock Washer, and a 1/4” Flat
Washer, attach the L- Bracket to the Stealthbox®, and hand
tighten.
Next, firmly tighten all three brackets onto the Stealthbox®,
then firmly tighten the Z-Bracket and L-Bracket to the vehicle.
S T E P 1 9
Pictured is the Stealthbox® secured into position.
S T E P 1 8
Attach the speaker cable to the Stealthbox®.
S T E P 1 6
Using a 1/4”-20 x 1 Bolt, a 1/4” Lock Washer, and a 1/4” Flat
Washer, attach the Large Bracket to the Stealthbox®, and
hand tighten.
