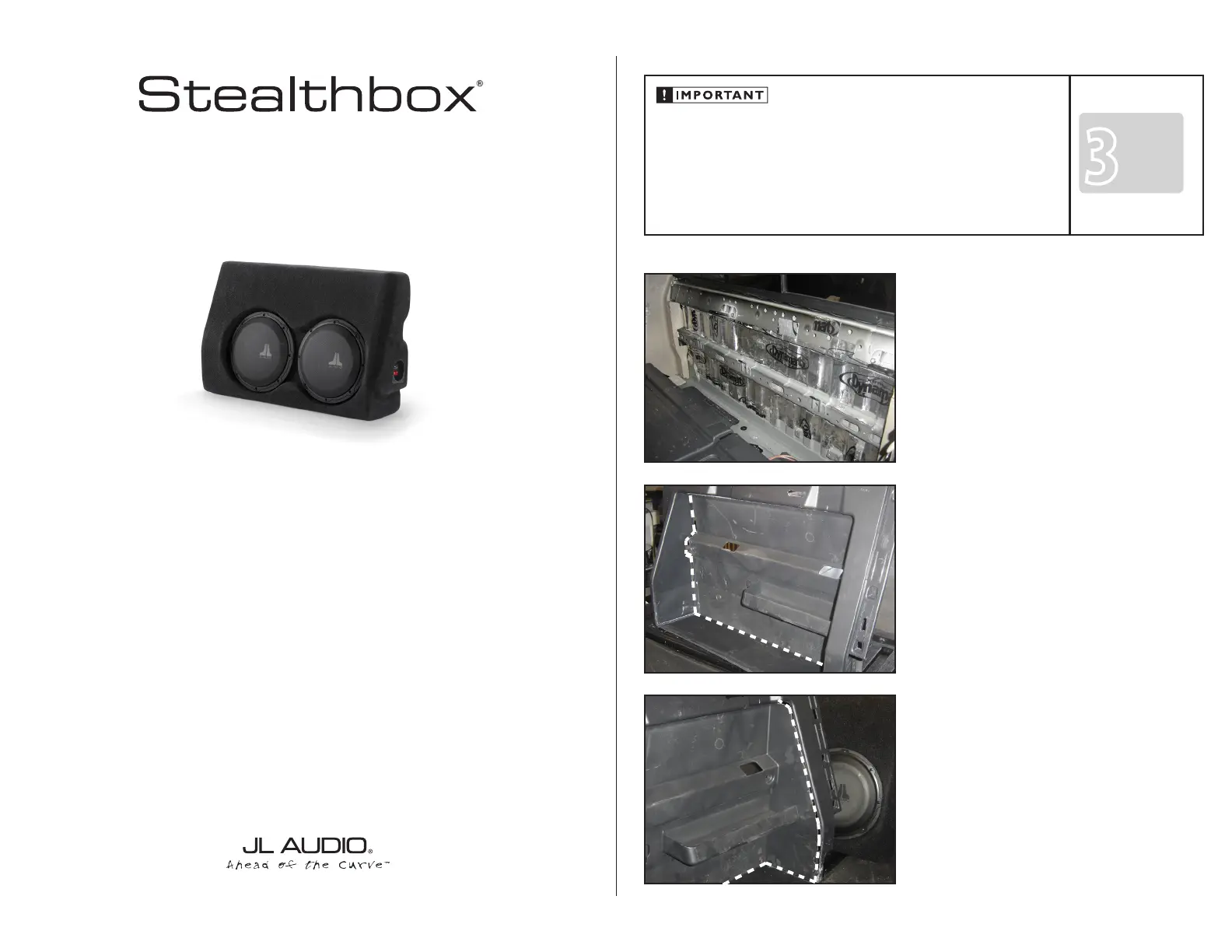

I N S T A L L A T I O N G U I D E
for the
SB-T-TACDC/10W1v3
SKU# 94312
2005 - 2011 Toyota Tacoma Double Cab
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Remove the all contents from the rear seating area.
Lower the second row seats.
Remove the two-piece plastic storage bins from the rear
wall.
Continued on Next Page
S T E P 2
The rear wall of the passenger’s side storage bin needs to
be cut out. Follow carefully. The cut lines are STEPS 2 - 4
indicated by the white dash lines. Use a cutting wheel for the
best results.
This cut line follows the corner line crease of the storage bin.
S T E P 3
This cut line also follows the corner line crease.
SB-T-TACDC/10W1v3_INSTR_SKU#011238
INSTALLATION
D I F F I C U L T Y :
35
OUT
OF
ESTIMATED TIME:
23 HOURS
Continued on Next Page
SB-T-TACDC/10W1v3_INSTR_SKU#011238
S T E P 7
The supplied wax square is to be placed onto the rear wall,
just to the right of the second mount as in the picture.
S T E P 6
The Stealthbox® is to be inserted from the back side of the
modified panel. If necessary, trim the panel to allow the
Stealthbox® to fit.
S T E P 5
Remove the ribs that are located on the back side of the
storage bin.
S T E P 4
The top cut line runs straight across. The line does not follow
the corner crease, as like the other cut lines. This top line is
1/2-inch in front of the corner crease.
Page 2 • JL Audio, Inc 2016
S T E P 9
Note: Before drilling, make sure that you are not
going to be drilling into any gas lines, brake lines,
transmission lines, electrical wiring, transfer case (4x4
vehicles) or anything else that might cause a reduc-
tion in your weekly pay. Always wear eye protection
when drilling!
With a drill and a 1/2-inch drill bit, drill through the
impression made in the wax square.
Remove the wax square.
S T E P 1 1
From under the vehicle, place the supplied fender washers, flat
washers, lock washers and then hex nut onto the protruding
socket cup set screw and secure. Adjust the amount of
exposed thread on each cup set screw if necessary.
Note: For added protection, it is recommended that
you apply a bead of silicone between the vehicle and
the fender washer. After the bolt assembly is tightly
secured, it is also recommended that vehicle under-
coating material is applied to the exposed assembly.
S T E P 1 0
Back out the socket cup set screw that was installed in STEP
8, to expose 1 1/4-inch of the threads.
Place the Stealthbox®
with the plastic panel back into the
mount area. Guide the socket cup set screw through the
drilled hole.
Run speaker wire from the amplifier’s location to the
Stealthbox® location and check for proper operation of
the woofer.
S T E P 8
Thread the supplied socket cup screw into the rear of the
Stealthbox®, leaving 1/4-inch of the threads exposed.
Place the Stealthbox® with the modified plastic panel into
the mounting location and press firmly onto the Stealthbox®.
Remove the Stealthbox® with the plastic panel carefully,
leaving the wax square in place. The socket cup set screw
will leave an impression onto the wax square.
(1)
(2)
SB-T-TACDC/10W1v3_INSTR_SKU#011238
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 2
Secure the driver’s side plastic panel back onto the rear wall.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011238 - 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
(1) (1)3/8-inch Split Lock Washer 3/8-inch -16 x 2-1/4-inch Socket Cup Set Screw
(1) 3/8-inch Flat Washer (1) 3/8-inch -16 Hex Nut
(1) 3/8-inch x 2-inch Fender Washer
(1) 3-inch x 3-inch Wax Square
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: (2) 10W1v3-4
Nominal Impedance: 2 ohms
Continuous Power Handling: 600 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD600/1v2. The diagram below shows
the recommended crossover, infrasonic filter and equalizer settings for the XD600/1v2 when being used to power
your Stealthbox®.
The JL Audio XD600/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 6-inch x 9-inch / Front Doors
Fits JL Audio Models: TR690-TXi & *C2690-TX
Rear Speaker Size / Location: 6.5-inch / Rear Doors
Fits JL Audio Models: TR650-CXi, TR650-CSi, C2650-X, C2650, *XR650-CXi, *C3650,
*C5-650x, *C5-650 & *ZR650-CSi
*Mounting / spacer plate is required.
