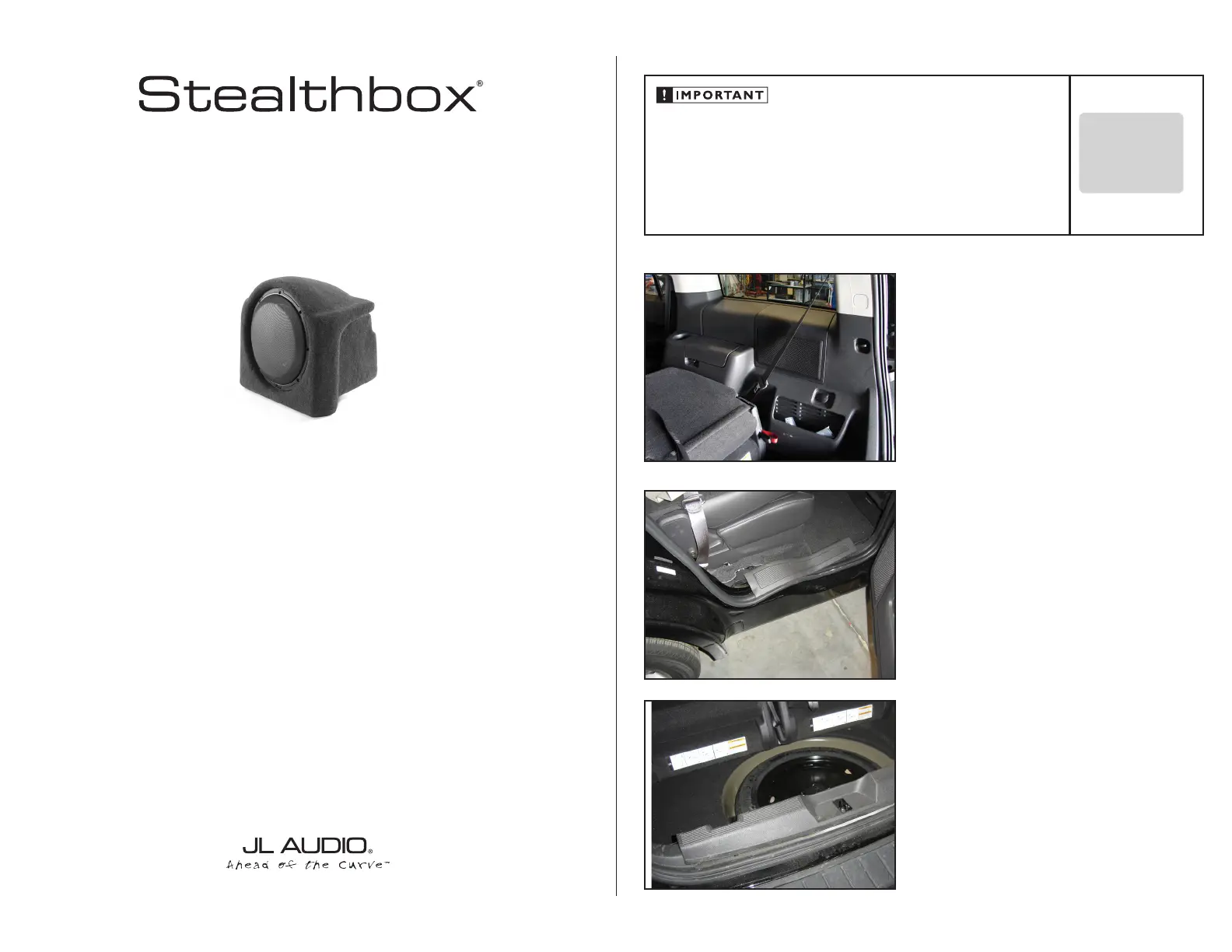

I N S T A L L A T I O N G U I D E
for the
SB-F-FLX/10W3v3
SKU#94451
2009 & Up Ford Flex
Thank you for choosing a JL Audio Stealthbox® for your automotive sound system. With proper installation, your new vehicle-
specific enclosed subwoofer system will deliver years of listening pleasure.
We strongly recommend that you have your new Stealthbox® installed by your authorized JL Audio dealer. The installation
professionals employed by your dealer have the necessary tools and experience to disassemble and reassemble your vehicle
properly. Also, keep in mind that your warranty coverage extends to 2 years if your system is installed or approved by your
authorized JL Audio dealer. If you prefer to perform your own installation, please read this installation guide completely
before beginning the process.
If you choose to perform the installation yourself, it is absolutely vital that
the Stealthbox ® be properly mounted to the vehicle according to these
instructions. Failure to mount the enclosure properly presents two problems:
1) The sub-bass performance will suffer due to the movement of the enclosure
caused by the force exerted by the woofer(s).
2) A loose enclosure presents a serious safety hazard in the event of a collision
or sudden deceleration.
S T E P 1
Empty out the back of the vehicle.
Continued on Next Page
S T E P 2
Remove the passengers side rear door sill.
S T E P 3
Remove the false floor and, the tailgate, and door sill.
SB-F-FLX-10W3v3 INSTR_SKU# 011293
INSTALLATION
D I F F I C U L T Y :
35
OUT
OF
ESTIMATED TIME:
2-3 HOURS
Continued on Next Page
SB-F-FLX-10W3v3 INSTR_SKU# 011293
S T E P 7
Using a die grinder (or a Dremel® type tool), grind off all of
the plastic welds as shown.
***CAUTION***
Always follow proper safety techniques when using
power tools as described by the tool manufacturer.
S T E P 6
The factory subwoofer grille (as shown) needs to be
removed. This process will be done from the back side of
the panel.
S T E P 5
Remove the OEM subwoofer/amplifier as shown. Run the
wire for the Stealthbox® to this general location (indicated by
arrow), as the Stealthbox® will be mounted here. Leave extra
wire so that you can secure it as desired once the installation
is finished.
S T E P 4
Remove the interior plastic trim panel. You can leave the
sections of the panel that the seat belts go through as
shown.
Page 2 • JL Audio, Inc 2016
S T E P 9
Looking at the panel from the front, trim all of the edges of
the opening leaving a 3/8” flange inside the recess at the top,
and a 1” flange inside the recess at the sides and bottom.
S T E P 1 1
Remove the woofer and stuffing from the Stealthbox, slide
the Stealthbox® into position, mark the two mounting holes
as shown, and remove the enclosure.
S T E P 1 0
Re-install the interior panel along with all of the previously
removed panels. Make sure that you can access the previ-
ously run wire for the Stealthbox®.
S T E P 8
This is the back of the grille completely removed showing all
of the welds that needed to be removed.
3/8”
1”
SB-F-FLX-10W3v3 INSTR_SKU# 011293
S T E P 1 5
C O N G R A T U L A T I O N S !
You have completed the installation for this model!
Enjoy your new Stealthbox®!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
S T E P 1 4
Connect the wire from the amplifier to the Stealthbox®, and
slide the enclosure into place over the two Allen Head Set
Screws installed in . Mount the enclosure using the STEP 13
included Fender Washers, Split lock Washers and, Hex Nuts
as shown. If necessary, use a Allen Wrench to keep the Allen
Head Set Screws from rotating while tightening. Remember
to re-install the stuffing that was removed earlier, and rein-
stall the woofer. Test the system for proper operation. Put all
the stuff back in the vehicle that you took out in STEP 1.
S T E P 1 3
Slide the two Speed Nuts into location with the “Nut” side
towards the outside of the vehicle into position over the two
holes that were just drilled as shown. Install the two 3/8-16
x 2 1/4” Allen Head Set Screw with the Allen Head opening
towards the center of the vehicle.
S T E P 1 2
Using a Unibit® or, a 9/16” drill bit, drill out the two holes
as marked in the previous step. DO NOT DRILL DEEPER
THAN 1/2” or you run the risk of scarring (or penetrating)
the outer sheet metal of the car.
Page 3 • JL Audio, Inc 2016
All specifications are subject to change without notice. “JL Audio®” and the JL Audio logo, “Stealthbox” and the Stealthbox logo are registered
trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011293 09.20.2016 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
(954) 443-1100
w w w . j l a u d i o . c o m
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y • M I R A M A R , F L O R I D A • 3 3 0 2 5 • U S A
I N C L U D E D H A R D W A R E
2) 3/8-16 x 2 1/4” Allen Head Set Screw 2) 3/8-16 Speed Clip
2) 3/8 x 2” Fender Washer 2) 3/8” Split Lock Washer
2) 3/8-16 Hex Nut
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W3v3-2
Nominal Impedance: 2 Ohms
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2. The diagram below shows
the recommended crossover settings for the XD300/1v2 when being used to power your Stealthbox ®.
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner’s manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 5”x 7” / 6”x 8”- Front Doors
Fits JL Audio Models: TR570-CXi, C2-570x, C3-570, C5-570, C5-570x & ZR570-CSi
Rear Speaker Size / Location: 5”x 7” / 6”x 8”- Rear Door
Fits JL Audio Models: TR570-CXi, C2-570x, C3-570, C5-570x
